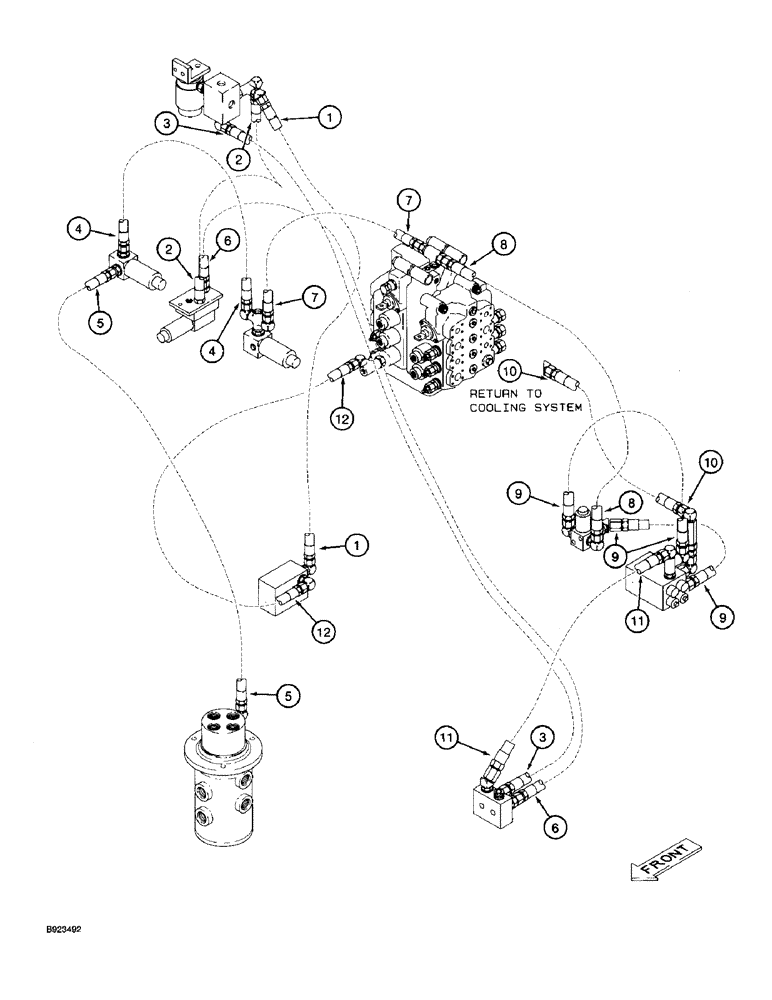

Запчасти Case 9030 (1-18) - PICTORIAL INDEX, PILOT LINE HYDRAULICS, CONTROL VALVE TO FILTER, SOLENOIDS, SWIVEL, MANIFOLD & VALVE (00) - PICTORIAL INDEX

1

Hose at Pilot Return Filter to Boom hold Valve, Figure 8-36

1шт.

2

Hose at Pilot Return Filter to Control Shutoff Solenoid, Figure 8-36

1шт.

3

Hose at Pilot Return Filter to Manifold, Figure 8-36

1шт.

4

Hose at Travel Speed Solenoid to Swing Brake Solenoid, Figure 8-32

1шт.

5

Hose at Travel Speed Solenoid to Swivel, Figure 8-32

1шт.

6

Hose at Control Shutoff Solenoid to Manifold, Figure 8-36

1шт.

7

Hose at Control Valve to Swing Brake Solenoid, Figure 8-36

1шт.

8

Hose at Control Valve to Cushion Valve Solenoid, Figure 8-34

1шт.

9

Hoses at Cushion Valve to Cushion Valve Solenoid, Figure 8-34

1шт.

10

Hoses at Cushion Valve to Cooling System Return Tube, Figure 8-34

1шт.

11

Hose at Cushion Valve to Manifold, Figure 8-34

1шт.

12

Hose at Control Valve to Boom Hold Valve, Figure 8-36

1шт.
