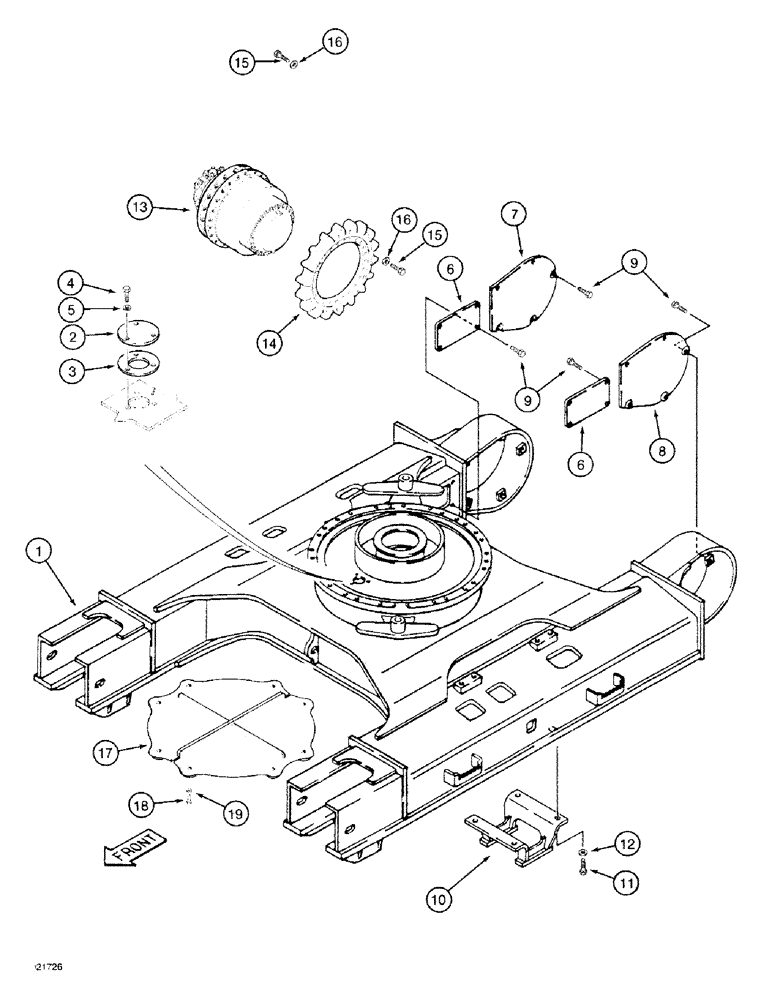

Запчасти Case 9030 (5-02) - TRACK FRAME AND DRIVE SPROCKET (11) - TRACKS/STEERING

1

152689A1

FRAME

- track and undercarriage

1шт.

2

150432A1

LID

COVER - access, grease fill, turntable gear

1шт.

3

150436A1

PACKING

GASKET - access cover

1шт.

4

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, 8 - 1.25 x 16 mm, class 10.9

3шт.

5

892-10008

LOCK WASHER,M8

WASHER - lock, 8 mm

3шт.

6

152501A1

COVER

- access, hydraulic, Serial Range: lines-motor

2шт.

7

152550A1

COVER

- access, track drive motor, right hand

1шт.

8

152548A1

COVER

- access, track drive motor, left hand

1шт.

9

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access cover

18шт.

10

152377A1

GUARD

GUIDE - track

2шт.

11

626-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

8шт.

12

150991A1

WASHER

- special

8шт.

13

152535A1

MOTOR

ASSEMBLY - track drive, parts list Figure 6-2

2шт.

14

152717A1

SPROCKET ASSY.

SPROCKET - track drive

2шт.

15

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

104шт.

16

150991A1

WASHER

- special

104шт.

17

152310A1

COVER

- access, clean out, turn table gear

2шт.

18

626-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 25 mm, class 10.9

8шт.

19

150988A1

WASHER

- special, if used

8шт.
