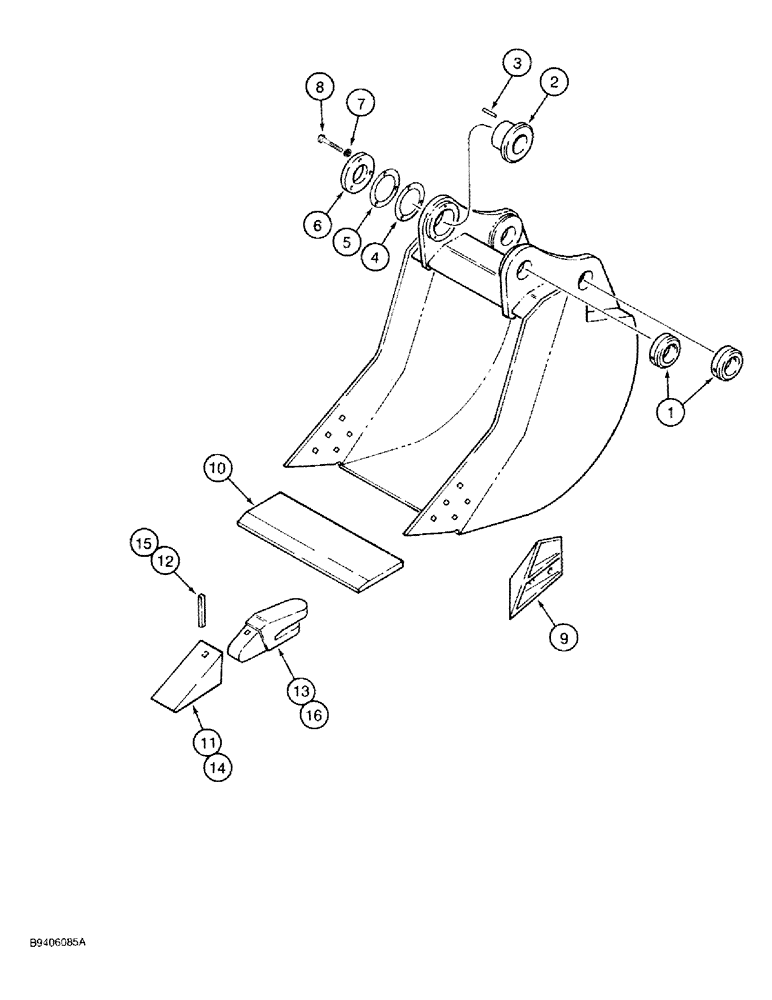

Запчасти Case 9030 (9-80) - H & H BUCKETS, GENERAL PURPOSE AND HEAVY DUTY - STANDARD OR HI-CAPACITY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 24 inch (610 mm), with 4 teeth, 0.59 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 0.76 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 5 teeth, 0.94 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 1.14 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 6 teeth, 1.40 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 24 inch (610 mm), with 4 teeth, 0.67 cu. yd., high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 0.90 cu. yd., high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 5 teeth, 1.14 cu. yd., high capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 1.38 cu. yd., high capacity, Includes: Ref. 1 - 16

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

125665A1

LATCH

BUSHING - bucket, with locking collar, high capacity

2шт.

2

125659A1

BUSHING

- bucket, adjustable, high capacity

1шт.

3

125664A1

DOWEL

PIN - dowel, special, high capacity

2шт.

4

125660A1

SHIM

- plate mounting, 0.020 inch thick, high capacity

1шт.

5

125661A1

SHIM

- plate mounting, 0.039 inch thick, high capacity

1шт.

6

125663A1

RETAINER

PLATE - bushing, high capacity

1шт.

7

429-11062

LOCK WASHER

WASHER - lock, 5/8 inch, high capacity

3шт.

8

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

9

NSS

NOT SOLD SEPARAT

EDGE - cutting, side, see Refs. 17 and 18 below, high capacity

2шт.

10

124983A1

EDGE, CUTTING

EDGE - cutting, center, 24 inch (610 mm) bucket, high capacity

1шт.

10

125001A1

EDGE, CUTTING

EDGE - cutting, center, 30 inch (762 mm) bucket, high capacity

1шт.

10

125002A1

EDGE, CUTTING

EDGE - cutting, center, 36 inch (914 mm) bucket, high capacity

1шт.

10

125003A1

EDGE, CUTTING

EDGE - cutting, center, 42 inch (1067 mm) bucket, high capacity

1шт.

10

125004A1

EDGE, CUTTING

EDGE - cutting, center, 48 inch (1219 mm) bucket, high capacity

1шт.

11

122668A1

TOOTH

POINT - tooth, standard, general purpose bucket

1шт.

See Figures 9-86 and 9-88 for point, pin and shank options.

1шт.

12

122669A1

FASTENER

PIN - flex, point, standard, general purpose bucket

1шт.

See Figures 9-86 and 9-88 for point, pin and shank options.

1шт.

13

122670A1

ADAPTER

SHANK - tooth, standard, general purpose bucket

1шт.

See Figures 9-86 and 9-88 for point, pin and shank options.

1шт.

14

122674A1

TOOTH

Point - tooth, standard, general purpose bucket

1шт.

See Figures 9-86 and 9-88 for point, pin and shank options.

1шт.

15

122675A1

FASTENER

PIN - flex, point, standard, tooth, general purpose bucket

1шт.

See Figures 9-86 and 9-88 for point, pin and shank options.

1шт.

16

122676A1

BUCKET TOOTH SHANK

SHANK - tooth, standard, general purpose bucket

1шт.

See Figures 9-86 and 9-88 for point, pin and shank options.

1шт.

17

112985A1

EDGE, CUTTING

KIT - side cutter blade, 3 inch, if used, not shown, tooth, general purpose bucket

1шт.

18

112732A1

KIT

- side cutter blade, 4 inch, if used, not shown, tooth, general purpose bucket

1шт.
