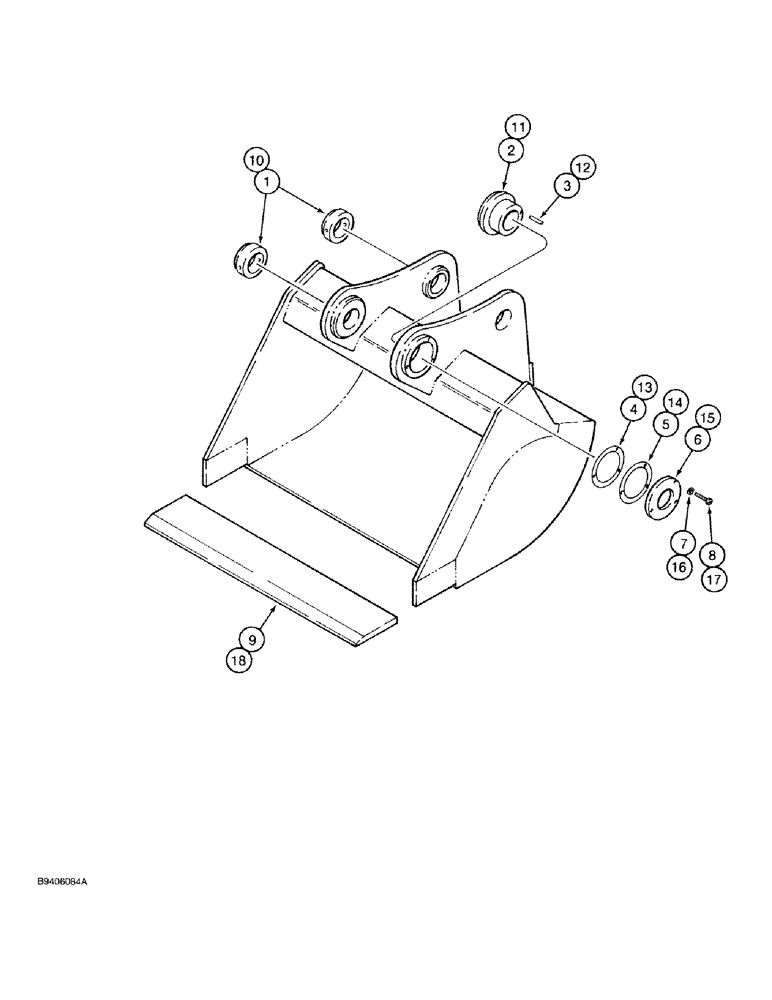

Запчасти Case 9030 (9-76) - CENTRAL FABRICATORS BUCKETS, GENERAL PURPOSE AND HEAVY DUTY - DITCH (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), 0.67 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 60 inch (1524 mm), 0.90 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122700A1

RING

BUSHING - bucket, with locking collar

2шт.

2

122696A1

BUSHING

- bucket, adjustable, Includes: Ref. 3

1шт.

3

837-10025

DOWEL,M10 x 25

PIN - dowel, 10 x 25 mm

1шт.

4

122697A1

SHIM

- plate mounting, 0.039 inch thick

1шт.

5

122698A1

SHIM

- plate mounting, 0.020 inch thick

1шт.

6

122699A1

RETAINER

PLATE - bushing

1шт.

7

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

3шт.

8

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2 x 50 mm

3шт.

9

125034A1

PLATE

EDGE - cutting, center, 48 inch (1219 mm) bucket

1шт.

9

125035A1

PLATE

EDGE - cutting, center, 60 inch (1524 mm) bucket

1шт.

REF

INSTRUCTION

BUCKET - 60 inch (1524 mm), 0.90 cu. yd., ditch, heavy duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 72 inch (1829 mm), 1.06 cu. yd., ditch, heavy duty, Includes: Ref. 10 - 18

1шт.

Order bucket assembly from Machinery Price List.

1шт.

10

122705A1

LATCH

BUSHING - bucket, with locking collar, ditch, heavy duty

2шт.

11

122708A1

BUSHING

- bucket, adjustable, ditch, heavy duty, Includes: Ref. 12

1шт.

12

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch, ditch bucket assembly, heavy duty

1шт.

13

122702A1

SHIM

- plate mounting, 0.039 inch thick, ditch bucket assembly, heavy duty

1шт.

14

122703A1

SHIM

- plate mounting, 0.020 inch thick, ditch bucket assembly, heavy duty

1шт.

15

122704A1

RETAINER

PLATE - bushing, ditch bucket assembly, heavy duty

1шт.

16

429-11062

LOCK WASHER

WASHER - lock, 5/8 inch, ditch bucket assembly, heavy duty

3шт.

17

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

BOLT - hex socket, 5/8 NC x 2 inch, ditch bucket assembly, heavy duty

3шт.

18

125035A1

PLATE

EDGE - cutting, center, 60 inch (1524 mm) bucket, ditch, heavy duty

1шт.

18

125036A1

EDGE, CUTTING

EDGE - cutting, center, 72 inch (1829 mm) bucket, ditch, heavy duty

1шт.
