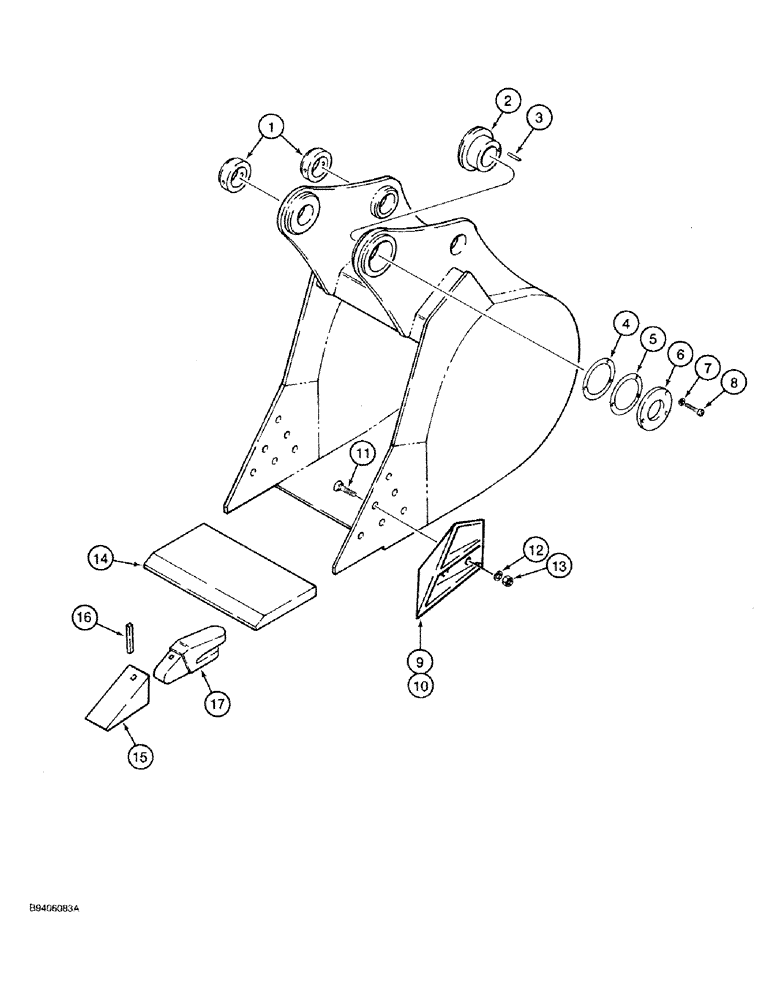

Запчасти Case 9030 (9-74) - CENTRAL FABRICATORS BUCKETS, SEVERE DUTY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 24 inch (610 mm), with 3 teeth, 0.59 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 0.77 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 4 teeth, 0.95 cu. yd., Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122705A1

LATCH

BUSHING - bucket, with locking collar

2шт.

2

122708A1

BUSHING

- bucket, adjustable, Includes: Ref. 3

1шт.

3

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch

1шт.

4

122702A1

SHIM

- plate mounting, 0.039 inch thick

1шт.

5

122703A1

SHIM

- plate mounting, 0.020 inch thick

1шт.

6

122704A1

RETAINER

PLATE - bushing

1шт.

7

429-11062

LOCK WASHER

WASHER - lock, 5/8 inch

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

BOLT - hex socket, 5/8 NC x 2 inch

3шт.

112222A1

HALF BLADE

KIT - edge, side cutting, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side

1шт.

10

122683A1

CUTTER

EDGE - cutting, bucket, left-hand side

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3 inch, Grade 8

6шт.

12

392-21088

LOCK WASHER,7/8"

7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

6шт.

14

125020A1

EDGE, CUTTING

EDGE - cutting, center, 24 inch (610 mm) bucket

1шт.

14

125021A1

EDGE, CUTTING

EDGE - cutting, center, 30 inch (762 mm) bucket

1шт.

14

125022A1

EDGE, CUTTING

EDGE - cutting, center, 36 inch (914 mm) bucket

1шт.

15

122671A1

TOOTH

POINT - tooth, standard

1шт.

See Figures 9-86 and 9-88 for point, pin and shank options.

1шт.

16

122672A1

FASTENER

PIN - flex, standard

1шт.

See Figures 9-86 and 9-88 for point, pin and shank options.

1шт.

17

122673A1

BUCKET TOOTH SHANK

- tooth, standard

1шт.

See Figures 9-86 and 9-88 for point, pin and shank options.

1шт.
