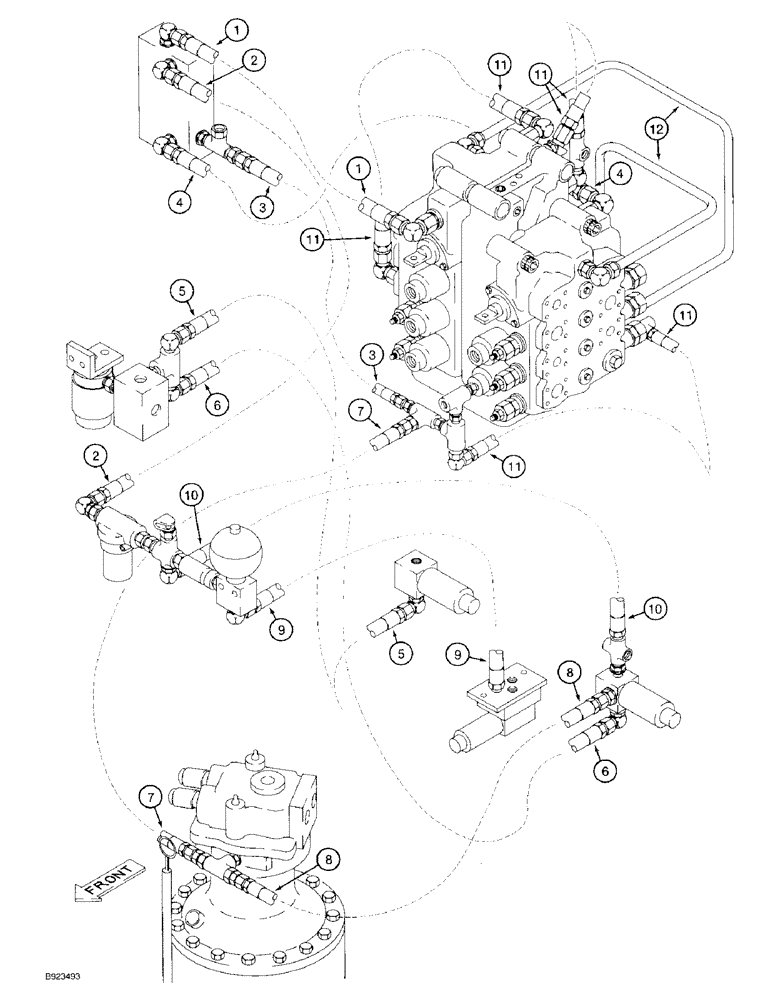

Запчасти Case 9030 (1-16) - PICTORIAL INDEX, PILOT LINE HYDRAULICS, CONTROL VALVE TO PUMP, FILTERS, SWING MOTOR AND SOLENOIDS (00) - PICTORIAL INDEX

1

Hose at Pump to Control Valve Upper Front Port, Figure 8-28

1шт.

2

Hose at Pump to Pilot Line Filter, Figure 8-30

1шт.

3

Hose at Pump to Control Valve Lower Front Port, Figure 8-30

1шт.

4

Hose at Pump to Control Valve Upper Rear Port, Figure 8-28

1шт.

5

Hose at Pilot Return Filter to Travel Speed Solenoid, Figure 8-30

1шт.

6

Hose at Pilot Return Filter to Swing Brake Solenoid, Figure 8-30

1шт.

7

Hose at Control Valve to Swing Motor, Figure 8-32

1шт.

8

Hose at Swing Motor to Swing Brake Solenoid, Figure 8-32

1шт.

9

Hose at Accumulator Manifold to Control Shutoff Solenoid, Figure 8-30

1шт.

10

Hose at Hydraulic Cross Near Accumulator to Swing brake Solenoid, Figure 8-30

1шт.

11

Hoses at Control Valve to Other Ports on Control Valve, Figure 8-28, 8-32

1шт.

12

Tubes at Control Valve to Other Ports on Control Valve, Figure 8-28

1шт.
