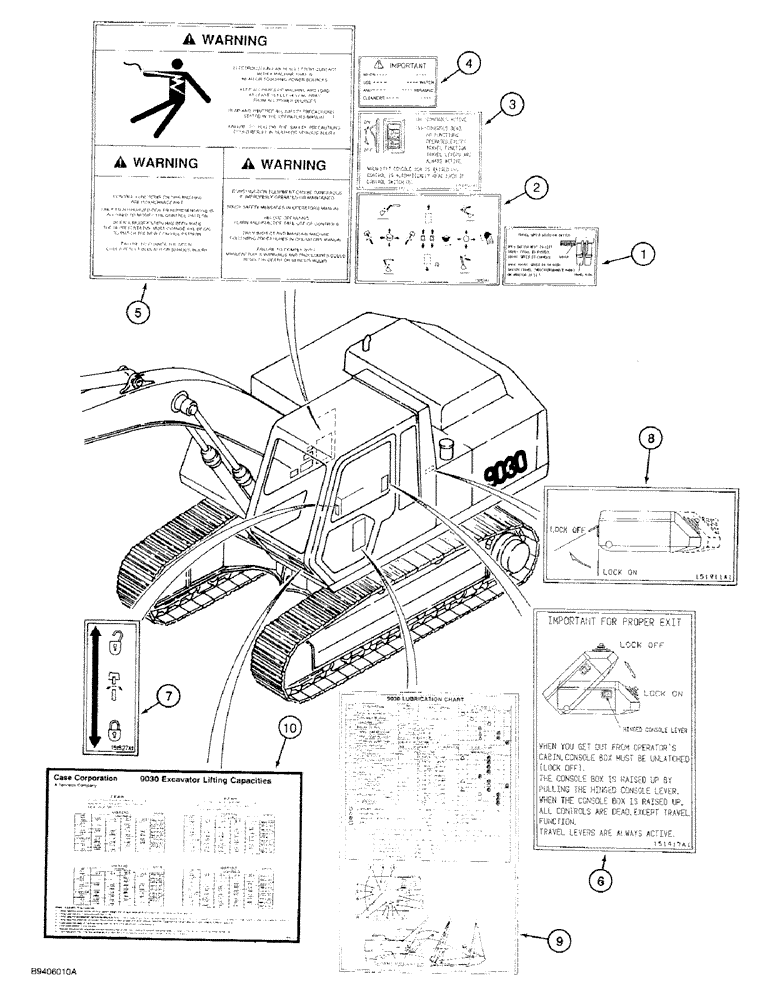

Запчасти Case 9030 (9-70) - DECALS - FRENCH LANGUAGE, OPERATORS COMPARTMENT (09) - CHASSIS

1

158380A1

DECAL

- Travel Speed Selecter Switch

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

2

151975A1

DECAL

- Control Pattern

1шт.

3

158277A1

DECAL

- Control, On - Off

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

4

158275A1

DECAL

- Important, When Cleaning Cab Windows

8шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

5

158286A1

DECAL

- Warning, various messages

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

6

158278A1

DECAL

- Lever, Lock On - Lock Off

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

7

151927A1

DECAL

- Swing Lock

1шт.

8

158273A1

DECAL

- Slide Lever, Lock On - Lock Off

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

9

158266A1

DECAL

- Lubrication Chart

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

10*

158260A1

DECAL

- Lifting Capacity Chart, for standard models with 7-3/4 foot or 9-2/3 foot arm, if used

1шт.

10

131424A1

DECAL

- Lifting Capacity Chart, for Long Reach models with 22-1/2 foot arm, not shown, if used

1шт.
