(9-68) - DECALS - FRENCH LANGUAGE, WARNING, DANGER, AND MISCELLANEOUS

Запчасти Case 9030 (9-68) - DECALS - FRENCH LANGUAGE, WARNING, DANGER, AND MISCELLANEOUS (09) - CHASSIS

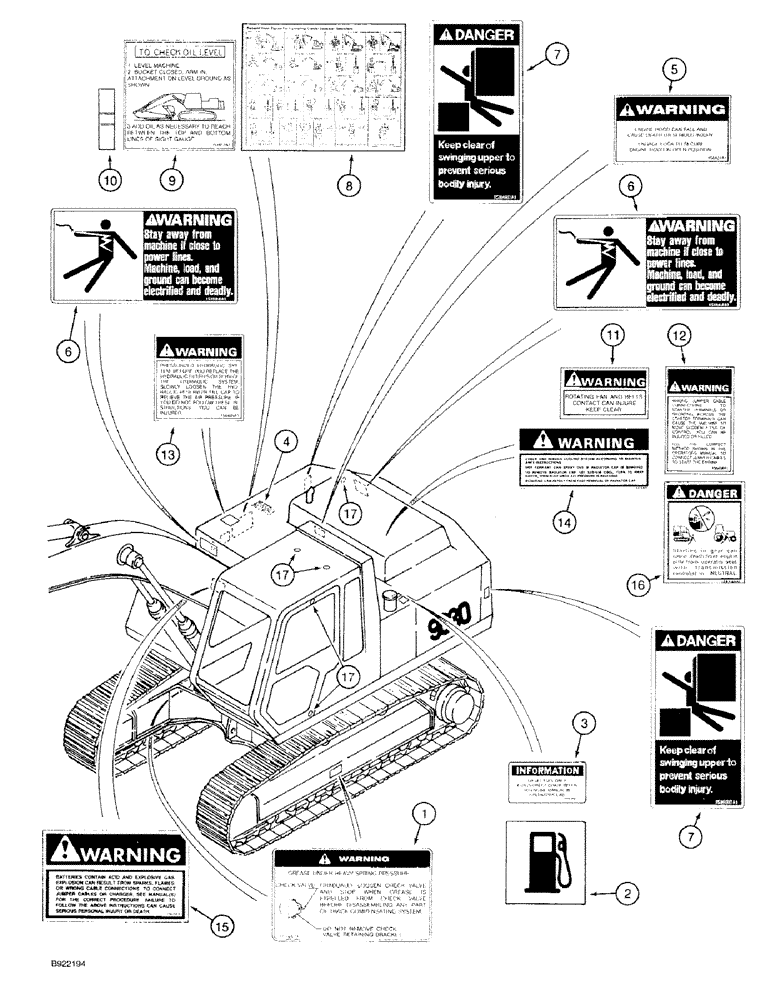

Схема запчастей Case 9030 - (9-68) - DECALS - FRENCH LANGUAGE, WARNING, DANGER, AND MISCELLANEOUS (09) - CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

158283A1

DECAL

- Warning, Grease Under Heavy Spring Pressure

2шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

2

150104A1

DECAL

- Symbol of Fuel Tank

1шт.

3

158274A1

DECAL

- Information, Diesel Fuel Only

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

4

150108A1

ANTI-SKID STRIP

PAD - non-slip

10шт.

5

158288A1

DECAL

- Warning, Engine Hood Can Fall

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

6

158284A1

DECAL

- Warning, Stay Away From Machine if Close to Power Line

2шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

7

158285A1

DECAL

- Danger, Keep Clear of Swinging Upper

2шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

8

158270A1

DECAL

- hand signal chart

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

9

158272A1

DECAL

- To Check Oil Level

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

10

156410A1

DECAL

- Gauge, Oil Level

1шт.

11

321-4324

DECAL

- Warning, Rotating Fan and Belts

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

12

321-6720

DECAL

- Warning, Jump Start Warning

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

13

158290A1

DECAL

- Caution/Important, pressurized tank

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

14

321-6701

DECAL

- Warning, Check and Service Cooling System

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

15

321-6719

DECAL

- Warning, Batteries Contain Acid and Explosive Gas

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

16

158287A1

DECAL

- Warning, Danger, Starting

1шт.

Refs. 1, 3, 5 - 9 and 11 - 16 on Figure 9-68 and Refs. 1, 3 - 6 and 8 - 10 on Figure 9-70 are included in 158297A1 decal kit.

1шт.

17

151756A1

PLATE WASHER

PLATE - bumper, 2 inch circle

5шт.
