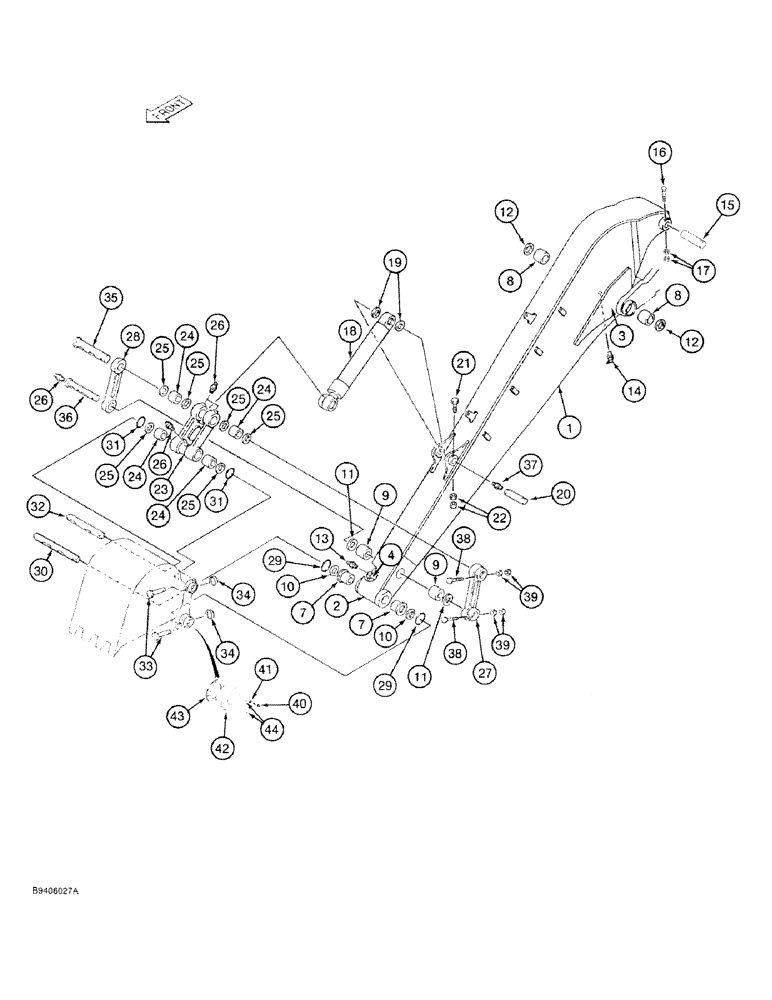

Запчасти Case 9030 (9-60) - 22-1/2 FOOT ARM AND LINKAGE - LONG REACH (09) - CHASSIS

158351A1

DIPPER

ARM ASSEMBLY - Long Reach, 22-1/2 foot, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

ARM - Long Reach

1шт.

2

NSS

NOT SOLD SEPARAT

BOSS - arm, bucket end

2шт.

3

NSS

NOT SOLD SEPARAT

BOSS - arm, boom mounting

1шт.

4

NSS

NOT SOLD SEPARAT

FITTING - lubrication, tube weldment, at bucket end

1шт.

7

153722A1

BUSHING

-, Serial Range: Arm-bucket

2шт.

8

151442A1

BUSHING

-, Serial Range: boom-arm

2шт.

9

150577A1

BUSHING

-, Serial Range: Link-arm

2шт.

10

150014A1

SEAL

SEAL - dust, Serial Range: bucket-arm

2шт.

11

150011A1

SEAL

SEAL - dust, Serial Range: link-arm

2шт.

12

150086A1

SEAL

SEAL - dust, Serial Range: boom-arm

2шт.

13

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

14

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, straight

1шт.

15

158345A1

LARGE PIN

PIN - arm, Serial Range: cylinder-arm

1шт.

16

514-1216

BOLT,Hex, M20 x 1.5 x 160mm, Cl 10.9

BOLT - hex, 20 - 1.5 x 160 mm,class 10.9

1шт.

17

825-11420

NUT,M20 x 1.5, Cl 8

- hex, 20 mm - 1.5

2шт.

18

150661A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket, parts list Figure 8-82

1шт.

19

150696A1

BLOCK

SHIM - bucket cylinder mounting, closed end

1шт.

20

158353A1

PIN

- bucket cylinder mounting, closed end

1шт.

21

514-857

BOLT,Hex, M12 x 1.25 x 120mm, Cl 10.9

BOLT - hex, 12 - 1.25 x 120 mm, class 10.9

1шт.

22

825-11412

NUT,M12 x 1.25, Cl 8

- hex, 12 mm - 1.25

2шт.

23

156909A1

LINK ASSY.

LINK - center, bucket

1шт.

24

150572A1

RING

BUSHING - bucket center link

4шт.

25

150014A1

SEAL

SEAL - dust, bucket center link bushings

6шт.

26

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

27

153720A1

LINKAGE YOKE

LINK - at arm, bucket end, left hand outer

1шт.

28

153721A1

LINKAGE YOKE

LINK - at arm, bucket end, right hand outer

1шт.

29

153688A1

O-RING,112mm ID x 8mm Width

O-RING - arm to bucket

2шт.

30

153704A1

PIN

-, Serial Range: arm-bucket

1шт.

PINS ARE USED FOR THE QUICK DISCONNECT AND FOR THE BUCKETS PER JIM GOLDBACH AT CENTRAL FAB

1шт.

31

153687A1

O-RING,95mm ID x 7mm OD

- center link to bucket

2шт.

32

153705A1

PIN

- center, Serial Range: link-bucket

1шт.

PINS ARE USED FOR THE QUICK DISCONNECT AND FOR THE BUCKETS PER JIM GOLDBACH AT CENTRAL FAB

1шт.

33

153703A1

HEADED PIN,16mm OD x 102mm L

BOLT - hex, pin lock, at bucket ear

2шт.

34

153639A1

RING

- wire

2шт.

35

150699A1

PIN

- center link to outer links

1шт.

36

152007A1

PIN ASSY.

PIN - outer, Serial Range: links-arm

1шт.

SHOULD BEKETS PER JIM GOLDBACH AT CENTRAL FAB.

1шт.

37

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

38

514-857

BOLT,Hex, M12 x 1.25 x 120mm, Cl 10.9

BOLT - hex, 12 - 1.25 x 120 mm, class 10.9

2шт.

39

825-11412

NUT,M12 x 1.25, Cl 8

- hex, 12 mm - 1.25

4шт.

40

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

SCREW - hex socket 12 - 1.75 x 40 mm, class 12.9

4шт.

41

112312A1

LOCK WASHER

- lock, special

4шт.

42

152026A1

PLATE

- end, bucket mounting

1шт.

43

152029A1

SHIM

- end plate, 0.05 inch thick

1шт.

44

837-12040

DOWEL,M12 x 40

PIN - dowel, hardened, 12 x 40 mm

2шт.
