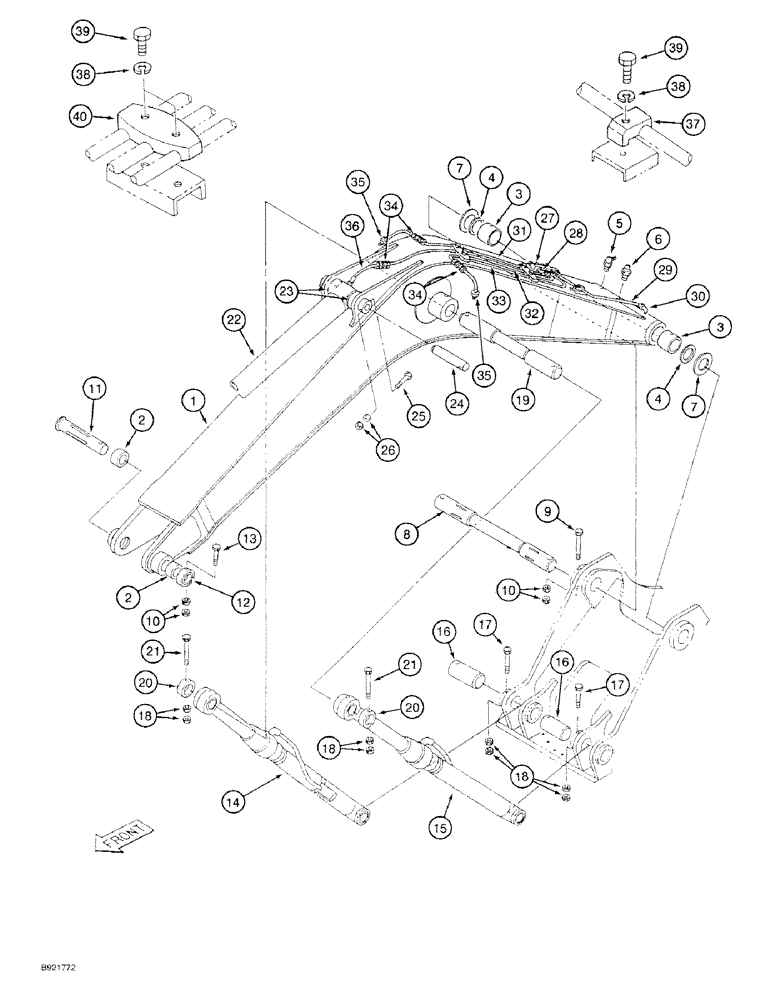

Запчасти Case 9030 (9-52) - BOOM AND MOUNTING PINS, STANDARD BOOM - 18-1/2 FT (09) - CHASSIS

1

153743A1

BOOM

- excavator

1шт.

2

152022A1

BUSHING

-, Serial Range: Boom-arm

2шт.

3

158742A1

COLLAR CLAMP

BUSHING - boom to frame, was 151442A1

2шт.

4

150086A1

SEAL

SEAL - dust, Serial Range: boom-frame

2шт.

5

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 90 degree

1шт.

6

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

7

151527A1

WASHER

SHIM -, Serial Range: boom-frame

2шт.

8

158741A1

PIN

- boom to frame, was 152013A1

1шт.

9

514-1400

BOLT,Hex, M24 x 2 x 170mm, Cl 10.9

- hex, 24 - 2 x 170 mm, class 10.9

1шт.

10

825-13424

NUT,M24 x 2, Cl 8

- hex, 24 - 2

4шт.

11

152010A1

PIN

-, Serial Range: boom-arm

1шт.

12

152024A1

COLLAR CLAMP

COLLAR - pin retaining

1шт.

13

514-1401

BOLT,Hex, M24 x 2 x 190mm, Cl 10.9

- hex, 24 - 2 x 190 mm, class 10.9

1шт.

14

151951A1

CYLINDER

ASSEMBLY - boom, right hand, parts list Figure 8-84

1шт.

15

151960A1

CYLINDER

ASSEMBLY - boom, left hand, parts list Figure 8-84

1шт.

16

151402A1

PIN

- boom cylinder mounting, at frame

2шт.

17

514-1032

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

Bolt, Hex, M16 x 1.5 x 140, 10.9

2шт.

18

825-11416

NUT,M16 x 1.5, Cl 8

- hex, 16 mm - 1.5

8шт.

19

151396A1

PIN

- boom cylinder mounting, at boom

1шт.

20

150449A1

COLLAR

- pin retaining

2шт.

21

514-1033

BOLT,Hex, M16 x 1.5 x 160mm, Cl 10.9

Bolt, Hex, M16 x 1.5 x 160, 10.9

2шт.

22

151966A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - arm, parts list Figure 8-78

1шт.

23

152338A1

BLOCK

SHIM - arm, Serial Range: cylinder-arm

2шт.

24

152033A1

PIN

- arm, Serial Range: cylinder-arm

1шт.

25

514-1216

BOLT,Hex, M20 x 1.5 x 160mm, Cl 10.9

BOLT - hex, 20 - 1.5 x 160 mm, class 10.9

1шт.

26

825-11420

NUT,M20 x 1.5, Cl 8

- hex, 20 mm - 1.5

2шт.

27

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

28

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, lubrication line

4шт.

29

152059A1

TUBE

- lubrication, boom pin

1шт.

30

152627A1

ELBOW

- 90 degree, lubrication line

1шт.

31

152051A1

TUBE

- lubrication, boom cylinder pin, right hand

1шт.

32

152054A1

TUBE

- lubrication, arm cylinder pin

1шт.

33

152057A1

TUBE

- lubrication, boom cylinder pin, left hand

1шт.

34

152032A1

UNION

CONNECTOR - lubrication line

3шт.

35

151074A1

HOSE ASSY.

HOSE - lubrication line, nylon, boom cylinder pin

2шт.

36

151508A1

HOSE,700.00 mm

- Lubrication line, Nylon, Arm cylinder pin 700.00 mm

1шт.

37

151504A1

CLAMP

- single lubrication line

1шт.

38

892-10008

LOCK WASHER,M8

WASHER - lock, 8 mm

7шт.

39

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 30 mm, class 10.9

7шт.

40

151497A1

CLAMP

- triple lubrication line

3шт.
