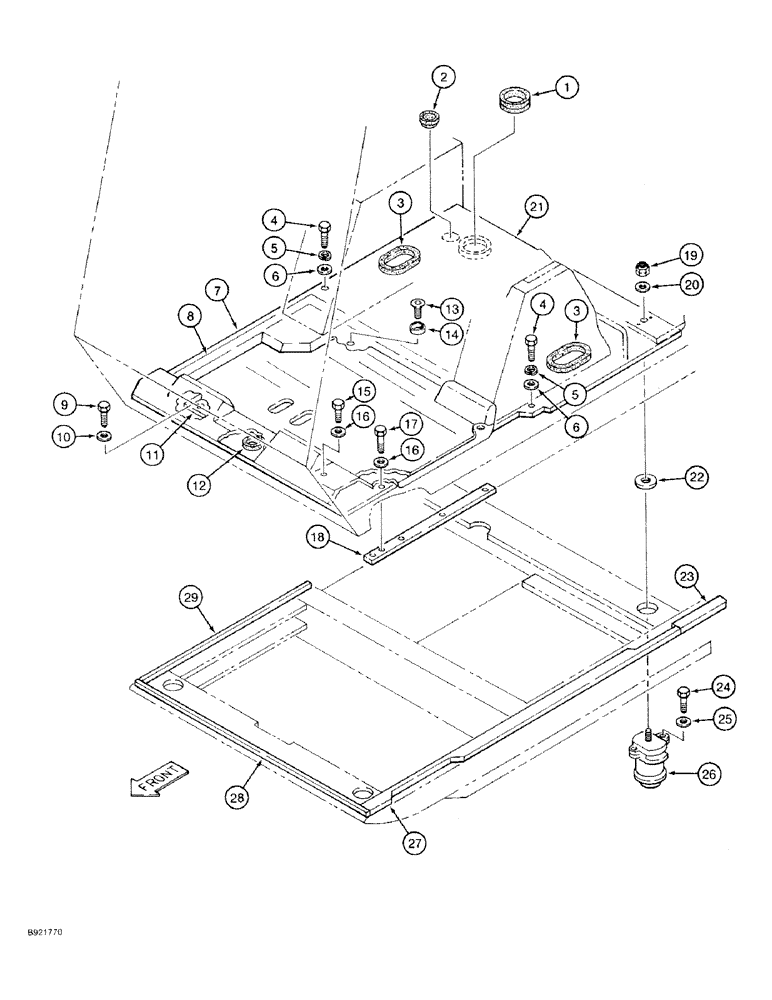

Запчасти Case 9030 (9-40) - CAB FLOOR AND MOUNTING (09) - CHASSIS

1

152424A1

GROMMET

- rubber

1шт.

2

152643A1

GROMMET

- rubber

1шт.

3

152644A1

GROMMET

- rubber

2шт.

4

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

5

892-11010

LOCK WASHER,M10

2шт.

6

150344A1

WASHER

WASHER - flat, special

2шт.

7

153525A1

FLOOR MAT

MAT - floor, outer

1шт.

8

153514A1

FLOOR MAT

MAT - floor, inner

1шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, class 10.9

2шт.

10

150409A1

WASHER

- special

2шт.

11

151168A1

BRACKET

- foot rest

1шт.

12

150413A1

GROMMET

- rubber

1шт.

13

151290A1

HEX SOC SCREW,Flat Csk Hd, M8 x 20mm

BOLT - special

2шт.

14

151590A1

WASHER

- special

2шт.

15

150548A1

BOLT,High Strength, Hex, M10 x 20mm

BOLT - special

2шт.

16

150604A1

WASHER

- special

8шт.

17

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

- hex, 6 - 1 x 25 mm, class 10.9

6шт.

18

151183A1

PLATE

- reinforcement

1шт.

19

150760A1

NUT

- special

4шт.

20

150714A1

WASHER

- special

4шт.

21

151638A1

FLOOR

- cab

1шт.

22

151092A1

SPACER

- at shock mount

4шт.

23

151530A1

CUSHION ASSY.

CUSHION - sponge

1шт.

24

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

25

150409A1

WASHER

- special

8шт.

26

151090A1

RUBBER MOUNTING

MOUNT - shock, rubber

4шт.

27

151525A1

CUSHION ASSY.

CUSHION - sponge, left side

1шт.

28

151128A1

CUSHION ASSY.

CUSHION - sponge, front

1шт.

29

151135A1

CUSHION ASSY.

CUSHION - sponge, right side

1шт.
