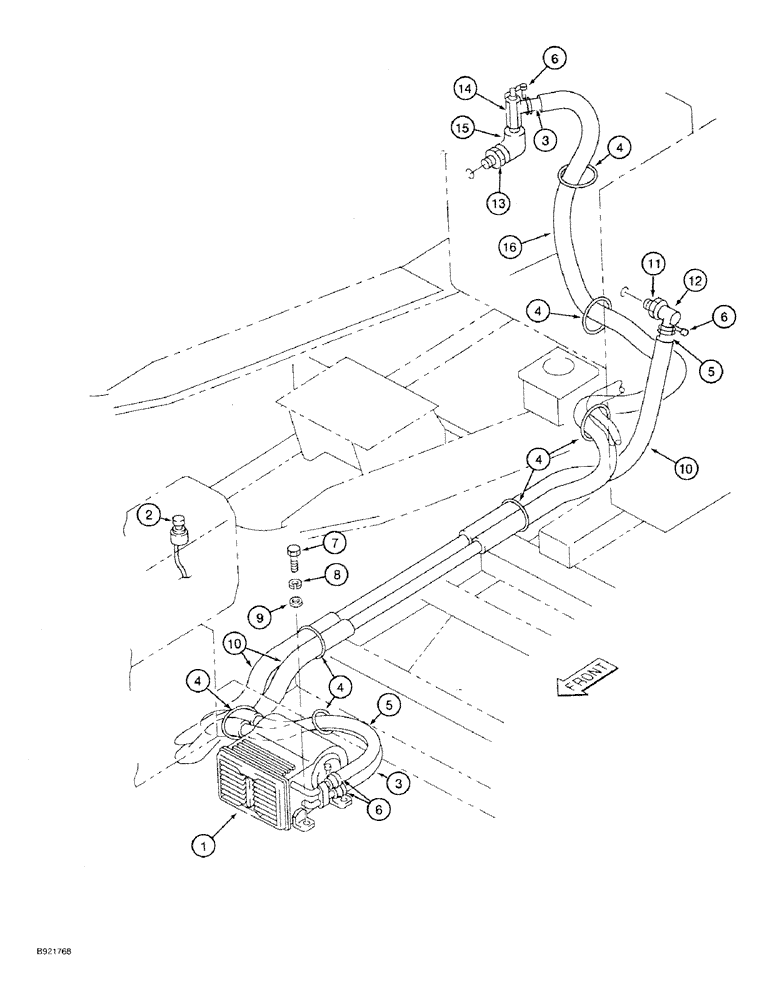

Запчасти Case 9030 (9-36) - HEATER AND HOSES (09) - CHASSIS

1

152815A1

HEATER,Assembly, Cab

HEATER - cab

1шт.

For fan blower (squirrel cage) only order: 166058A1 (RH) and/or 166059A1 LH).

1шт.

2

151848A1

SWITCH

- heater, Knob for switch is NSS

1шт.

3

152639A1

HOSE,13.00 mm ID x 5000.00 mm

- Heater supply 13.00 mm ID x 5000.00 mm

1шт.

4

150496A1

MOUNTING CLIP

STRAP - tie

1шт.

5

152429A1

HOSE,13.00 mm ID x 3700.00 mm

- Heater return 13.00 mm ID x 3700.00 mm

1шт.

6

150384A1

COLLAR

CLAMP - hose

4шт.

7

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, class 10.9

4шт.

8

892-11010

LOCK WASHER,M10

4шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

10

150440A1

PLASTIC-RUBBER TUBE

GUARD - heater hose

3шт.

11

151588A1

BUSHING

CONNECTOR - straight, heater return line at tank

1шт.

12

150383A1

ELBOW

- 90 degree, heater return line at tank

1шт.

13

151582A1

BUSHING

CONNECTOR - straight, heater supply hose at engine

1шт.

14

152664A1

VALVE

- water, Serial Range: shut-off-heater

1шт.

15

152159A1

ELBOW

- 90 degree, heater supply hose at engine

1шт.

16

150443A1

TUBE

GUARD - heater supply hose at engine

1шт.
