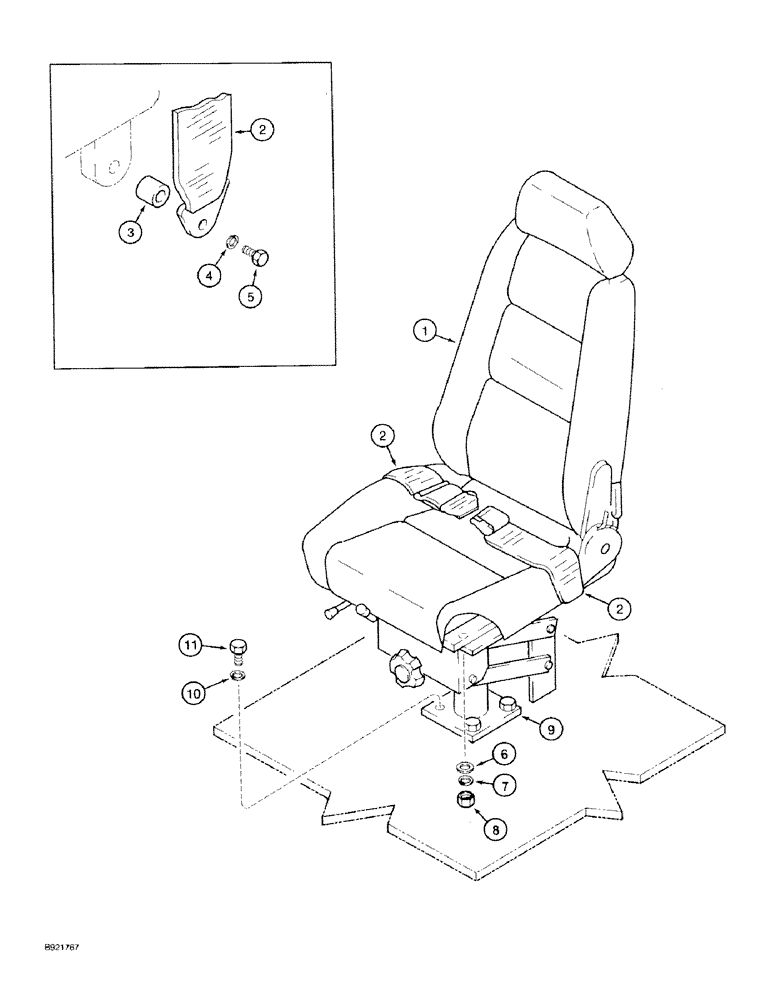

Запчасти Case 9030 (9-34) - SEAT, SEAT BELTS AND MOUNTING (09) - CHASSIS

1

153002A1

SEAT ASSY.

SEAT - operators

1шт.

2

151520A1

SAFETY BELT

SAFETY BELT

1шт.

3

152755A1

SPACER

- seat belt mounting

1шт.

4

151526A1

SPRING WASHER

WASHER - lock, special

2шт.

5

151523A1

BOLT,High Strength, Hex

BOLT - hex, special, seat belt mounting

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

9

152784A1

SUSPENSION

PEDESTAL - seat

1шт.

10

892-11010

LOCK WASHER,M10

4шт.

11

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.
