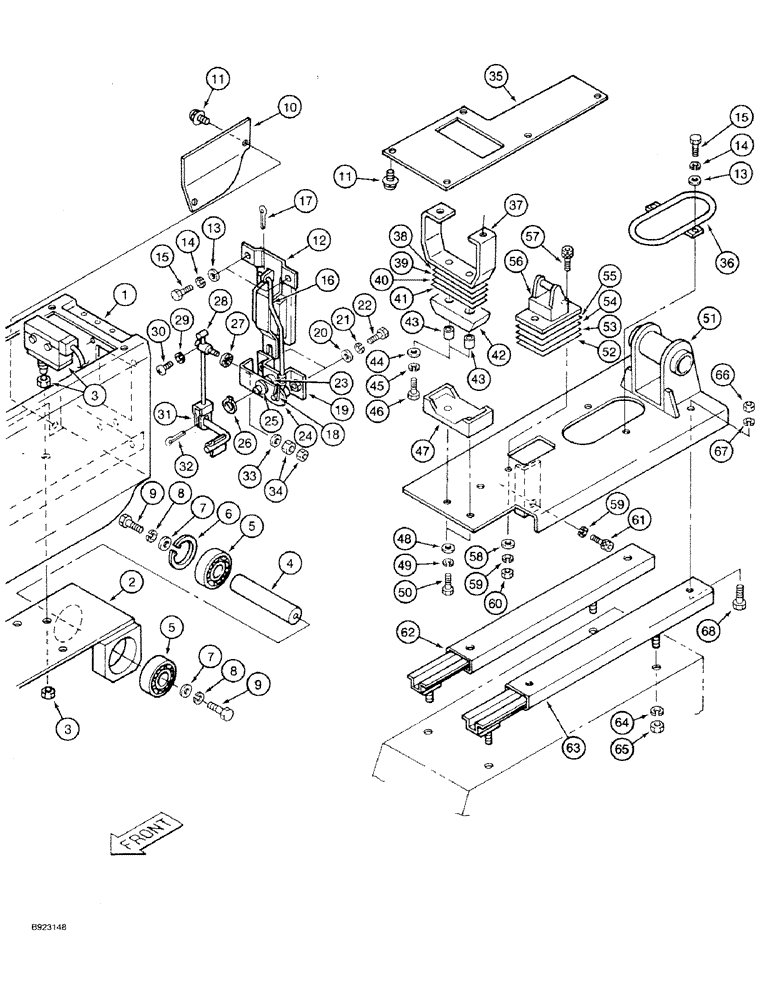

Запчасти Case 9030 (9-30) - LEFT-HAND CONTROL CONSOLE AND LINKAGE, PLATFORM TO SLIDE RAILS (09) - CHASSIS

152120A1

BOX

CONSOLE ASSEMBLY - control, left hand, includes parts on Figures 9-28 - 9-32, Includes: Ref. 1 - 68

1шт.

1

152106A1

BOX

CONSOLE - control, left hand

1шт.

2

152134A1

BRACKET

PLATFORM - left hand control console

1шт.

3

150857A1

SWITCH

- limit

1шт.

4

151898A1

PIN

- platform bearing

1шт.

5

152708A1

BEARING, BALL

BEARING - ball, control platform

2шт.

6

800-2147

SNAP RING,M47, Int

RING, SNAP, M47, Int

1шт.

7

152123A1

WASHER

WASHER - special

2шт.

8

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

9

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, 6 - 1 x 12 mm, class 10.9, Full Thd

2шт.

10

151995A1

COVER

- side

1шт.

11

151679A1

SCREW,Phil Pan Hd, M4 x 12mm, W/ Wshr

- special

7шт.

12

151348A1

HANDLE

LATCH - handle, top cover

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

14

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

15

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, 6 - 1 x 12 mm, class 10.9, Full Thd

4шт.

16

152126A1

ROD

- latch, threaded

1шт.

17

733-2012

COTTER PIN,M2 x 12

PIN, SPLIT (COTTER), M2 x 12

1шт.

18

151364A1

SPRING

- latch rod

1шт.

19

151956A1

BRACKET

- link mounting

1шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

21

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

22

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

BOLT - hex head, 6 - 1 x 12 mm

2шт.

23

151389A1

WAVE WASHER

- special

1шт.

24

151948A1

LINK

- console latch

1шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

26

800-1110

SNAP RING,M10, Ext

RING - retaining, external, 10 mm

1шт.

27

151372A1

WAVE WASHER

- special

1шт.

28

151964A1

SPECIAL PIN

PIN - special

1шт.

29

892-11003

LOCK WASHER,M3

WASHER - lock, 3 mm

1шт.

30

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

- pan head machine, 3 - 0.5 x 12 mm

1шт.

31

151972A1

CABLE

CONNECTOR - latch

1шт.

151972A1 IS JUST THE CABLE. THE PART SHOWING AT THE BOTTOM IS ACTUALLY THE ADJUSTING LEVER THAT IS PART OF 152669A1 SLIDE RAIL ASY. NEED TO ORDER THE SLIDE RAIL TO GET THE LEVER.

1шт.

32

153077A1

COTTER PIN

PIN - cotter

1шт.

33

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

34

825-1405

NUT,M5, Cl 8

2шт.

35

152160A1

COVER

FLOOR - console

1шт.

36

151982A1

GUIDE

- ring

1шт.

37

152145A1

BRACKET

- shock absorber

1шт.

38

152148A1

SHIM

PLATE - shim, 0.05 inch (1.2 mm) thick

1шт.

39

152151A1

SHIM

PLATE - shim, 0.08 inch (2.0 mm) thick

1шт.

40

152154A1

SHIM

PLATE - shim, 0.1 inch (2.6 mm) thick

1шт.

41

152851A1

SHIM

PLATE - shim, 0.02 inch (0.5 mm) thick

1шт.

42

152142A1

STOP

- rubber

1шт.

43

152158A1

SPACER

- rubber stop

2шт.

44

153360A1

WASHER

- flat, special

2шт.

45

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

46

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

BOLT - hex, 6 - 1 x 16 mm

2шт.

47

152139A1

PLATE

CATCH - rubber stop

1шт.

48

153360A1

WASHER

- flat, special

2шт.

49

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

50

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, 6 - 1 x 16 mm, class 10.9

2шт.

51

152136A1

BRACKET

PLATE - adapter, Serial Range: platform-rail

1шт.

52

152848A1

SHIM

PLATE - shim, 0.02 inch (0.5 mm) thick

1шт.

53

152095A1

SHIM

- latch striker, 0.1 inch (2.6 mm) thick

1шт.

54

152094A1

SHIM

- latch striker, 0.08 inch (2.0 mm) thick

1шт.

55

152091A1

SHIM

- latch striker, 0.05 inch (1.2 mm) thick

1шт.

56

152087A1

PLATE

STRIKER - console latch

1шт.

57

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 25 mm, class 12.9

2шт.

58

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

59

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

60

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

61

862-8012

HEX SOC SCREW,M8 x 12mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 12 mm, class 12.9

1шт.

62

152670A1

RAIL

- slide, right hand

1шт.

63

152669A1

RAIL

- slide, left hand

1шт.

64

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

65

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

66

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

67

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

68

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.
