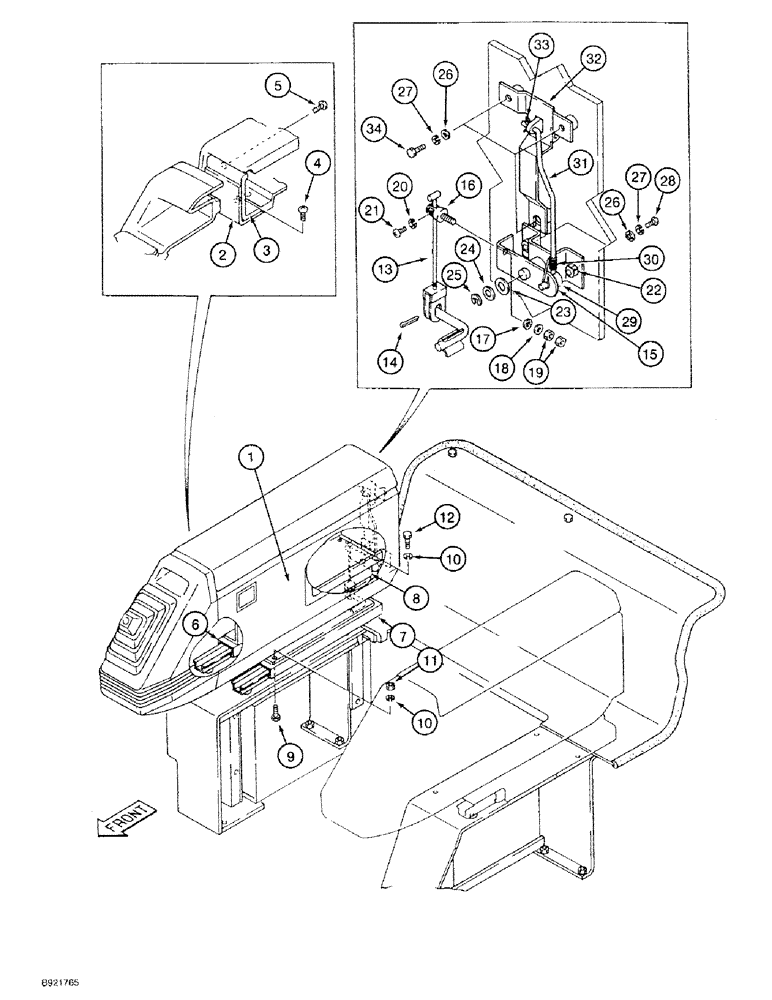

Запчасти Case 9030 (9-26) - RIGHT-HAND CONTROL LINKAGE (09) - CHASSIS

152122A1

BOX

CONSOLE ASSEMBLY - control, right hand, Includes: Ref. 1 - 34

1шт.

1

151788A1

BOX

CONSOLE - control, right hand

1шт.

2

151779A1

BRACKET

- end cover mounting

1шт.

3

151775A1

COVER

- top end, right hand console

1шт.

4

151159A1

SCREW,Truss Hd, M4 x 12mm

- special

2шт.

5

152025A1

SCREW,Phil Truss Hd, M3 x 5mm

- special

2шт.

6

152670A1

RAIL

- slide, right hand outer

1шт.

7

152669A1

RAIL

- slide, right hand inner

1шт.

8

152406A1

BRACKET

- mounting

1шт.

9

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, 8 - 1.25 x 20 mm, class 10.9

4шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

12

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, 8-1.25 x 16, class 10.9

4шт.

13

151972A1

CABLE

- latch

1шт.

14

153077A1

COTTER PIN

PIN - cotter, Knob for switch is NSS

1шт.

15

151948A1

LINK

- console latch

1шт.

16

151964A1

SPECIAL PIN

PIN - special

1шт.

17

151372A1

WAVE WASHER

- special

1шт.

18

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

19

825-1405

NUT,M5, Cl 8

2шт.

20

892-11003

LOCK WASHER,M3

WASHER - lock, 3 mm

1шт.

21

840-1316

SCREW,Pan, M3 x 16mm, Cl 4.8

- machine, pan Phillips, 3 - 0.5 x 16 mm

1шт.

22

151956A1

BRACKET

- link mounting

1шт.

23

151389A1

WAVE WASHER

- special

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

25

800-1110

SNAP RING,M10, Ext

RING - retaining, external, 10 mm

1шт.

26

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

27

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

5шт.

28

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

BOLT - hex head, 6 - 1 x 12 mm

2шт.

29

151358A1

SPECIAL PIN

PIN - spring tension

1шт.

30

151364A1

SPRING

- latch rod

1шт.

31

152126A1

ROD

- latch, threaded

1шт.

32

151348A1

HANDLE

LATCH - handle, top cover

1шт.

33

733-2012

COTTER PIN,M2 x 12

PIN, SPLIT (COTTER), M2 x 12

1шт.

34

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, 6 - 1 x 12 mm, class 10.9, Full Thd

3шт.
