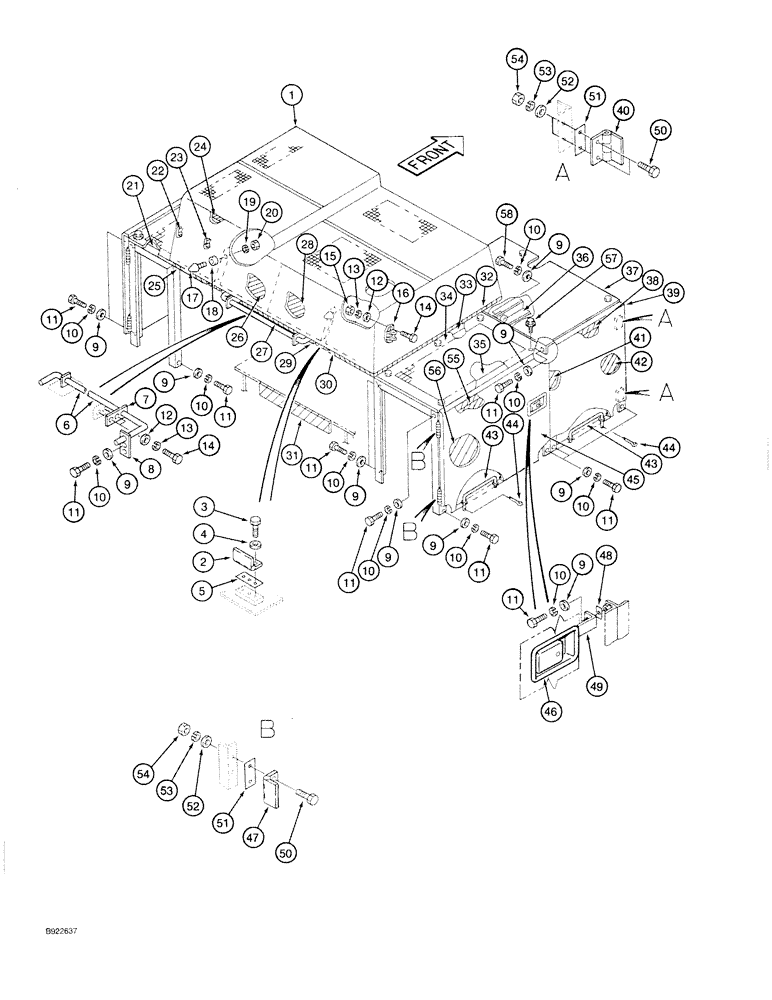

Запчасти Case 9030 (9-20) - UPPER STRUCTURE, FRAME, PANELS AND INSULATION PADS (09) - CHASSIS

153096A1

HOOD

ASSEMBLY - engine cover, Includes: Ref. 1 and 2, Serial Range: -DAC0300004

1шт.

157468A1

HOOD ASSY.

HOOD ASSEMBLY - engine cover, Includes: Ref. 1 and 2, Start Serial: DAC0300004

1шт.

1

NSS

NOT SOLD SEPARAT

HOOD - engine cover

1шт.

2

152819A1

HINGE

- hood

2шт.

3

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

4шт.

4

150811A1

WASHER

- flat, 12 mm

4шт.

5

152743A1

SHIM

PLATE - shim, 0.09 inch thick

1шт.

6

153013A1

SPRING

ROD - torsion

1шт.

7

150948A1

BRACKET

- hood

1шт.

8

150943A1

BRACKET

- torsion rod, hood

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

20шт.

10

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

20шт.

11

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

20шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

16

150856A1

STOP LOCK

CATCH - top cover

1шт.

17

151108A1

STOP

BUMPER - rubber

2шт.

18

152887A1

SPACER

- bumper, Serial Range: -DAC0300004

2шт.

18

156912A1

SPACER

- bumper, Start Serial: DAC0300004

2шт.

19

892-11010

LOCK WASHER,M10

2шт.

20

153604A1

NUT

- hex, bumper retaining

2шт.

21

153115A1

FRAME

- upper structure, left hand, Serial Range: -DAC0300004

1шт.

21

157198A1

FRAME

- upper structure, left hand, Start Serial: DAC0300004

1шт.

22

153174A1

NOISE PROTECTION

PAD - insulation

1шт.

23

153171A1

NOISE PROTECTION

PAD - insulation, Serial Range: -DAC0300004

1шт.

23

157174A1

INSULATOR

PAD - insulation, Start Serial: DAC0300004

1шт.

24

153176A1

NOISE PROTECTION

PAD - insulation, Serial Range: -DAC0300004

1шт.

24

157175A1

NOISE PROTECTION

PAD - insulation, Start Serial: DAC0300004

1шт.

25

152869A1

RUBBER BLOCK

CUSHION - sponge

1шт.

26

153169A1

NOISE PROTECTION

PAD - insulation, Serial Range: -DAC0300004

2шт.

26

157172A1

NOISE PROTECTION

PAD - insulation, Start Serial: DAC0300004

2шт.

27

152557A1

RUBBER BLOCK

CUSHION - sponge

1шт.

28

153167A1

NOISE PROTECTION

PAD - insulation

1шт.

29

152554A1

RUBBER BLOCK

CUSHION - sponge

1шт.

30

152871A1

RUBBER BLOCK

CUSHION - sponge

1шт.

31

153007A1

SEAL

- cushion

1шт.

32

152655A1

RUBBER BLOCK

CUSHION - foam

1шт.

33

153178A1

FRAME

- upper structure, right hand

1шт.

34

152972A1

COVER

- rear, right hand

1шт.

35

153180A1

FRAME

- upper structure, right hand

1шт.

36

153183A1

FRAME

- upper structure, right hand

1шт.

37

153184A1

COVER

- upper structure, right hand top

1шт.

38

152909A1

INSULATOR

PAD - insulation (Replaces 150929A1)

1шт.

39

152963A1

DOOR

PANEL ASSEMBLY - right hand front, Includes: Ref. 40

1шт.

40

151104A1

HINGE

- left hand side plate

2шт.

41

152908A1

SEAL

- cushion

1шт.

42

152905A1

NOISE PROTECTION

PAD - insulation

1шт.

43

151791A1

STAY

ROD - retaining, cover

2шт.

44

130003

COTTER PIN,3mm OD x 30mm OAL

Replaces 156467A1

2шт.

152961A1

DOOR

PANEL ASSEMBLY - side, right hand, Includes: Ref. 45 - 47

1шт.

45

NSS

NOT SOLD SEPARAT

PANEL - side, right hand

1шт.

46

150939A1

LOCK

- right hand side panel

1шт.

47

151104A1

HINGE

- side plate

2шт.

48

152719A1

SHIM

- plate

1шт.

49

152720A1

BRACKET

- 90 degree

1шт.

50

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 35 mm, Grade 10.9

8шт.

51

152651A1

ADJUSTING PLATE

SHIM - plate

1шт.

52

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

53

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

54

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

8шт.

55

152910A1

NOISE PROTECTION

PAD - insulation

1шт.

56

152903A1

NIPPLE, LUBE

PAD - insulation

1шт.

57

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access cover

6шт.

58

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 30 mm, class 10.9

1шт.

14

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.
