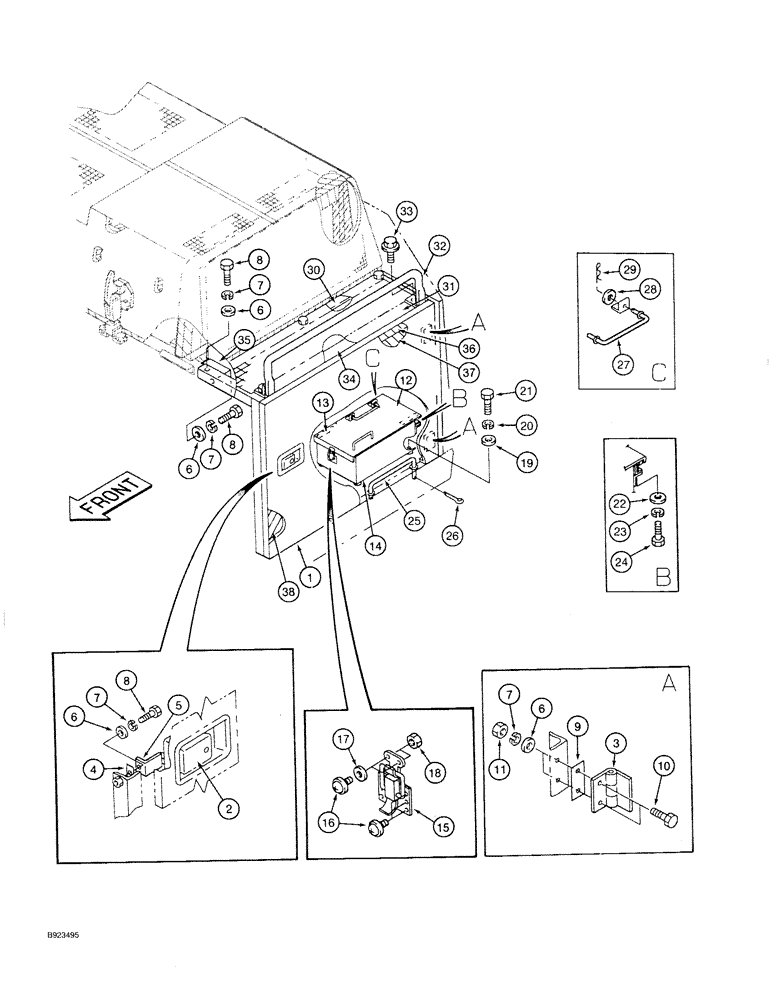

Запчасти Case 9030 (9-18) - UPPER STRUCTURE, LEFT HAND SIDE COVER AND RELATED PARTS (09) - CHASSIS

1

152959A1

DOOR

COVER ASSEMBLY - left hand side, Includes: Ref. 2 and 3

1шт.

2

150938A1

LOCK

- door, left hand

1шт.

3

151104A1

HINGE

- left hand side plate

2шт.

4

152719A1

SHIM

- plate

1шт.

5

152720A1

BRACKET

- 90 degree

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

7

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

8

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

9

152651A1

ADJUSTING PLATE

SHIM - plate

1шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 35 mm, class 10.9

4шт.

11

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

4шт.

12

153135A1

COVER

- box

1шт.

13

150396A1

CUSHION ASSY.

CUSHION - rubber

2шт.

14

153130A1

BOX

- tool

1шт.

15

153133A1

CATCH

LATCH - tool box

1шт.

16

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

- pan head, catch retaining

8шт.

17

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

18

825-1405

NUT,M5, Cl 8

2шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

20

892-11010

LOCK WASHER,M10

4шт.

21

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, class 10.9

4шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

23

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

24

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, 6 - 1 x 16 mm, class 10.9

2шт.

25

151791A1

STAY

ROD - retaining, cover

1шт.

26

130003

COTTER PIN,3mm OD x 30mm OAL

Replaces 156467A1

1шт.

27

153132A1

STAY

ROD - retaining

1шт.

28

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

29

733-1616

COTTER PIN,M1.6 x 16

PIN - cotter, 1.6 x 16 mm

1шт.

30

153118A1

FRAME ASSY

FRAME - upper structure, left hand, inner, Serial Range: -DAC0300004

1шт.

30

157166A1

FRAME

- upper structure, left hand, inner, Start Serial: DAC0300004

1шт.

31

153126A1

REAR COVER

COVER - rear, left hand

1шт.

32

153128A1

STAY

RAIL - hand, left hand side

1шт.

33

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access cover

2шт.

34

153121A1

FRAME ASSY

FRAME - upper structure, left hand, outer

1шт.

35

153124A1

FRAME ASSY

FRAME - upper structure, left hand, front

1шт.

36

152912A1

INSULATOR

PAD - insulation

1шт.

37

152900A1

INSULATOR

PAD - insulation

1шт.

38

152908A1

SEAL

- cushion

2шт.
