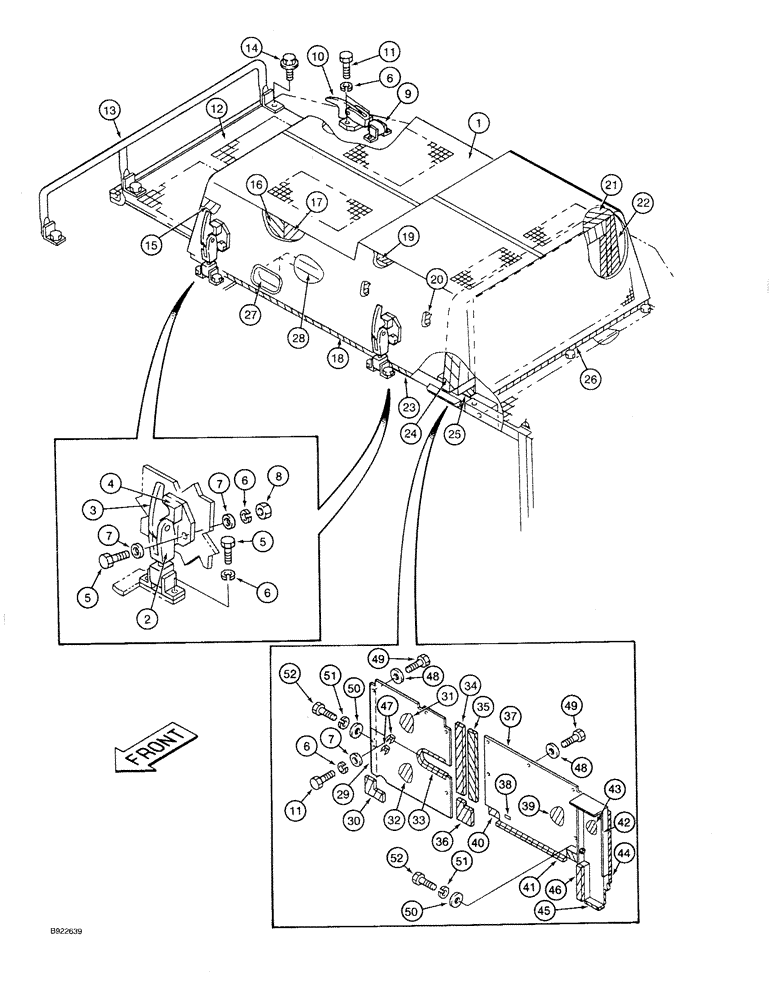

Запчасти Case 9030 (9-14) - UPPER STRUCTURE, HOOD AND INSULATION PADS (09) - CHASSIS

1

153096A1

HOOD

- engine cover, includes two 152819A1 hinges, Serial Range: -DAC0300004

1шт.

1

157468A1

HOOD ASSY.

HOOD - engine cover, includes two 152819A1 hinges, Start Serial: DAC0300004

1шт.

2

150790A1

LATCH

CATCH - cover, without lock

2шт.

3

152423A1

LATCH

CATCH - cover, with lock

2шт.

4

150785A1

STOP LOCK

LATCH - cover

2шт.

6

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

14шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

9

150854A1

FASTENER

LATCH - top cover

1шт.

10

150856A1

STOP LOCK

CATCH - top cover

1шт.

11

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, 8-1.25 x 16, class 10.9

6шт.

12

152972A1

COVER

- rear, right hand

1шт.

13

152816A1

STAY

RAIL - side, right hand

1шт.

14

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access cover

3шт.

15

152969A1

INSULATOR

PAD - insulation

1шт.

16

153165A1

INSULATOR

PAD - insulation

1шт.

17

153169A1

NOISE PROTECTION

PAD - insulation, Serial Range: -DAC0300004

1шт.

17

157172A1

NOISE PROTECTION

PAD - insulation, Start Serial: DAC0300004

1шт.

18

153170A1

INSULATOR

PAD - insulation

1шт.

19

153176A1

NOISE PROTECTION

PAD - insulation, Serial Range: -DAC0300004

1шт.

19

157175A1

NOISE PROTECTION

PAD - insulation, Start Serial: DAC0300004

1шт.

20

153172A1

INSULATOR

PAD - insulation

1шт.

21

153156A1

INSULATOR

PAD - insulation

1шт.

22

153094A1

INSULATOR

PAD - insulation

1шт.

23

152653A1

CUSHION ASSY.

CUSHION - edge, cover

1шт.

24

153158A1

INSULATOR

PAD - insulation

1шт.

25

153161A1

INSULATOR

PAD - insulation

1шт.

26

152655A1

RUBBER BLOCK

CUSHION - foam

1шт.

27

150484A1

HANDLE

- cover

1шт.

28

152818A1

FRAME ASSY

FRAME - cover, center

1шт.

29

153185A1

COVER

- center, right hand

1шт.

30

152915A1

INSULATOR

PAD - insulation

1шт.

31

152913A1

INSULATOR

PAD - insulation

1шт.

32

152914A1

INSULATOR

PAD - insulation

1шт.

33

153023A1

CUSHION ASSY.

CUSHION - rubber

1шт.

34

153140A1

INSULATOR

PAD - insulation

1шт.

35

153142A1

INSULATOR

PAD - insulation

1шт.

36

152916A1

INSULATOR

PAD - insulation

1шт.

37

152965A1

COVER

- center

1шт.

38

150486A1

CLIP

- harness

1шт.

39

152967A1

INSULATOR

PAD - insulation

1шт.

40

153011A1

INSULATOR

PAD - insulation

1шт.

41

152917A1

INSULATOR

PAD - insulation

1шт.

42

153143A1

COVER

- center, left hand

1шт.

43

153144A1

INSULATOR

PAD - insulation

1шт.

44

153146A1

INSULATOR

PAD - insulation

1шт.

45

153148A1

INSULATOR

PAD - insulation

1шт.

46

152918A1

INSULATOR

PAD - insulation

1шт.

47

152772A1

HOLDER

- grease gun

2шт.

48

151161A1

WASHER

- special

10шт.

49

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

10шт.

50

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

51

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

52

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.
