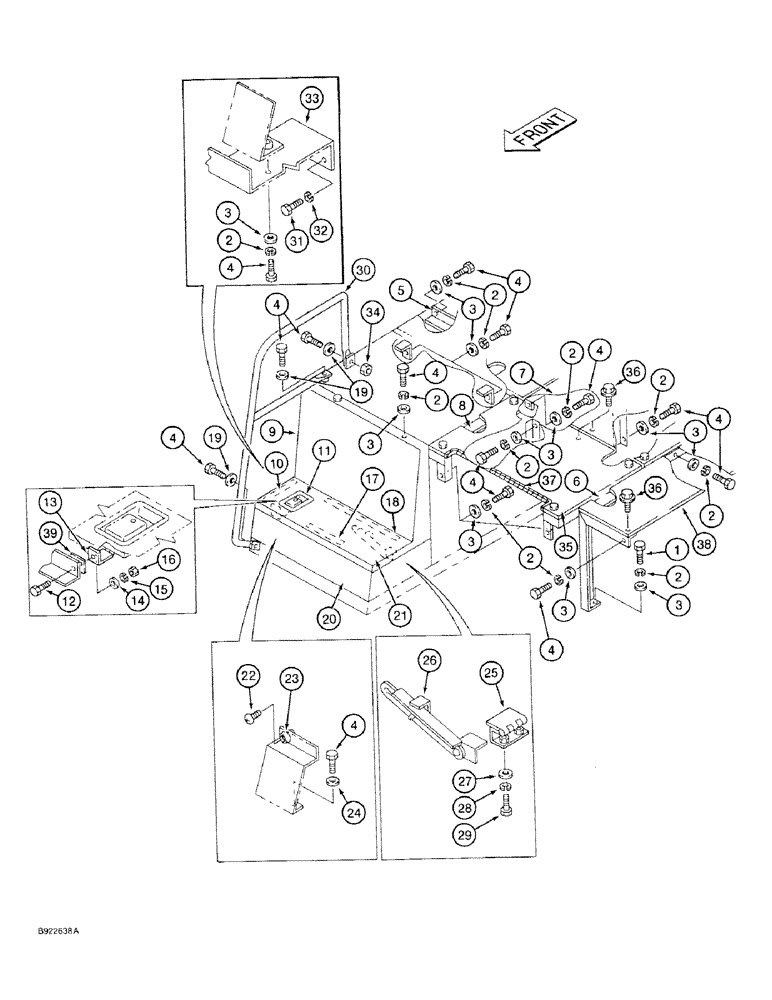

Запчасти Case 9030 (9-12) - UPPER STRUCTURE, TOP AND FRONT COVERS (09) - CHASSIS

1

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 30 mm, class 10.9

2шт.

2

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

16шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

14шт.

5

153182A1

FRAME ASSY

FRAME - engine cover, RH

1шт.

6

152825A1

FRAME ASSY

FRAME - engine cover, LH

1шт.

7

152862A1

COVER

- engine, top

1шт.

8

153064A1

FRAME ASSY

FRAME - engine cover, center

1шт.

9

153018A1

COVER

- front, lower

1шт.

10

150393A1

CUSHION ASSY.

CUSHION - rubber

2шт.

11

150938A1

LOCK

LATCH - cover

1шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, 8 - 1.25 x 20 mm, class 10.9

2шт.

13

152739A1

BRACKET

- cover support

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

17

150393A1

CUSHION ASSY.

CUSHION - rubber

1шт.

18

151790A1

CUSHION ASSY.

CUSHION - rubber

1шт.

19

150811A1

WASHER

- flat, 12 mm

3шт.

20

153086A1

COVER

- front, lower

1шт.

21

153085A1

COVER

ASSEMBLY - front, Includes: Refs. 11 and 25

1шт.

22

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

1шт.

23

152857A1

CUSHION ASSY.

CUSHION - rubber

1шт.

24

151161A1

WASHER

- special

2шт.

25

152633A1

HINGE

- cover

2шт.

26

151467A1

STAY

SLIDE - cover rail

1шт.

27

153360A1

WASHER

- flat, special

4шт.

28

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

29

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, 6 - 1 x 16 mm, class 10.9

4шт.

30

153087A1

STAY

RAILING - cover

1шт.

31

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, 8-1.25 x 16, class 10.9

4шт.

32

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

33

152873A1

BRACKET

- cover

1шт.

34

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

35

153067A1

COVER

- top

1шт.

36

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, cover

10шт.

37

150839A1

CUSHION ASSY.

CUSHION - rubber

1шт.

38

153164A1

COVER

- side, left hand

1шт.

39

158749A1

SHIM

PLATE - shim, 1.2 mm thick, if used

1шт.

39

158750A1

SHIM

PLATE - shim, 2.3 mm thick, if used

1шт.
