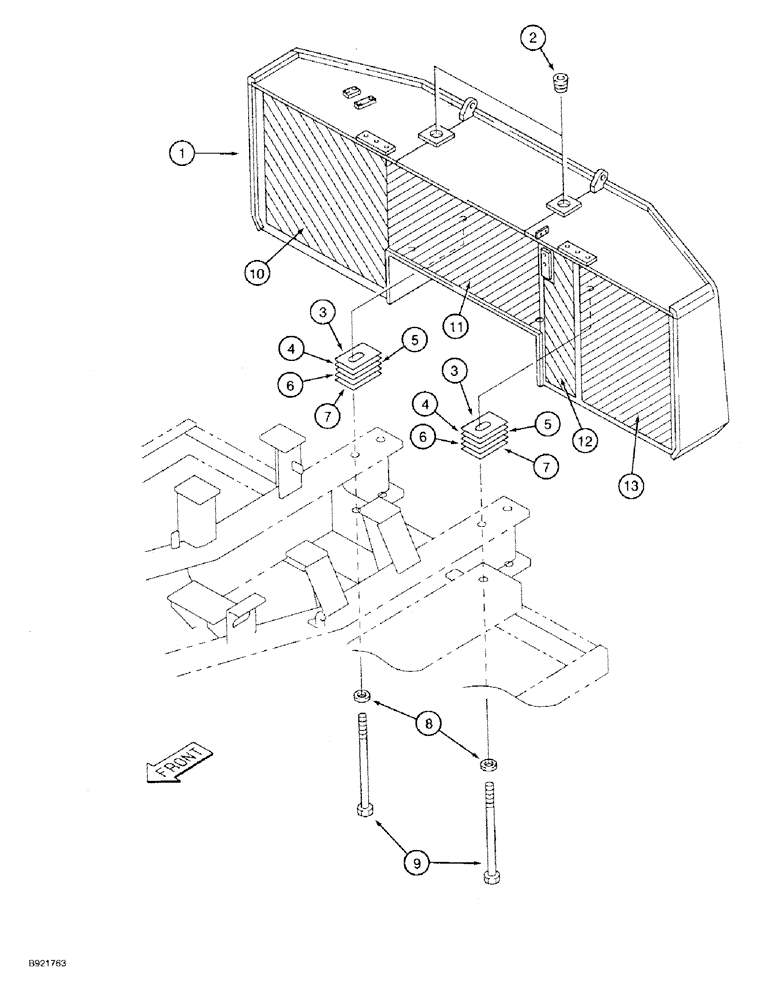

Запчасти Case 9030 (9-10) - COUNTERWEIGHT (09) - CHASSIS

1

152480A1

WEIGHT

COUNTERWEIGHT - rear, 8886 pounds (4031 kg), for models with 7-3/4 or 9-2/3 foot arm

1шт.

1

158305A1

WEIGHT

COUNTERWEIGHT - rear, 11,240 pounds (6000 kg), for models with 22-1/2 foot arm

1шт.

2

150129A1

PLUG

- special, rubber

2шт.

3

151040A1

SHIM

PLATE - shim, 0.03 inch thick

1шт.

4

151043A1

SHIM

PLATE - shim, 0.05 inch thick

1шт.

5

151045A1

SHIM

PLATE - shim, 0.09 inch thick

1шт.

6

151048A1

SHIM

PLATE - shim, 0.18 inch thick

1шт.

7

151245A1

SHIM

PLATE - shim, 0.24 inch thick

1шт.

8

150189A1

WASHER

- flat, 27 mm, special, if used

4шт.

8

157182A1

WASHER

- flat, 30 mm, special, if used

4шт.

9

151052A1

SPECIAL BOLT,Spcl, Hex, M27 x 3 x 300mm

BOLT - hex, 27 x 300 mm, special, if used

4шт.

9

157427A1

BOLT

BOLT - hex, 30 x 300 mm, special, if used

4шт.

10

152113A1

INSULATOR

PAD - counterweight mounting, right hand

1шт.

11

152114A1

INSULATOR

PAD - counterweight mounting, center

1шт.

12

152442A1

INSULATOR

PAD - counterweight mounting, left hand inner

1шт.

13

152444A1

INSULATOR

PAD - counterweight mounting, left hand outer

1шт.
