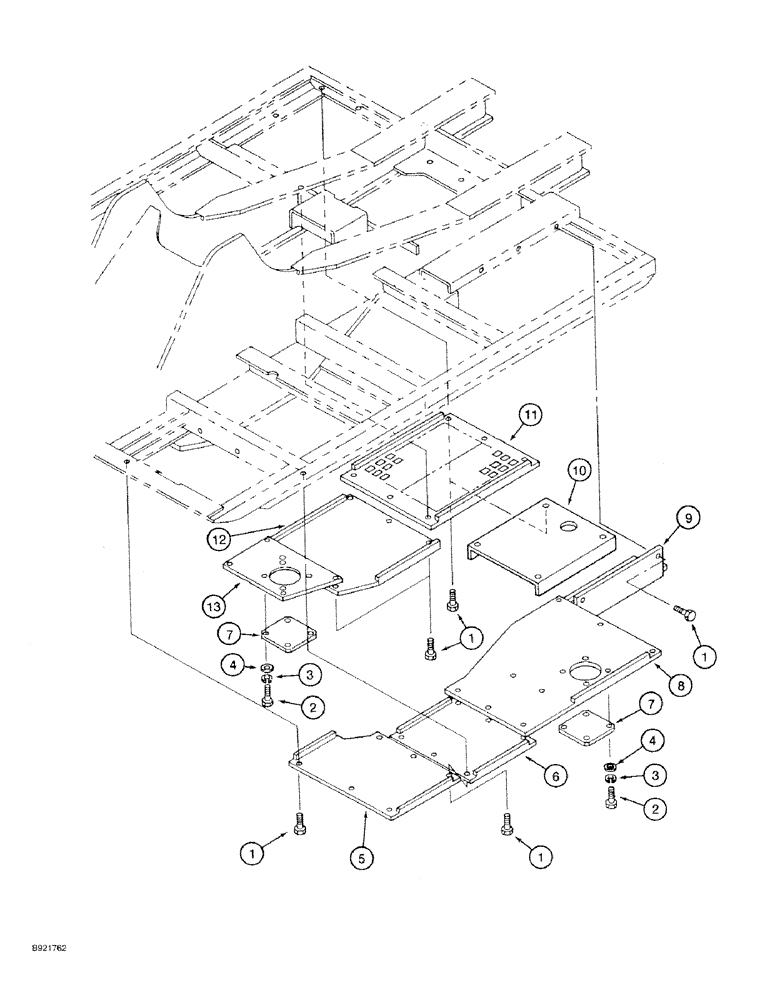

Запчасти Case 9030 (9-08) - TURNTABLE GUARDS (09) - CHASSIS

1

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, guard and cover mounting

31шт.

2

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 30 mm, class 10.9

8шт.

3

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

5

151488A1

COVER

GUARD - turntable, left hand front

1шт.

6

151503A1

COVER

GUARD - turntable, left hand center

1шт.

7

150222A1

COVER

- access, turntable

2шт.

8

152448A1

GUARD

- turntable, left hand rear

1шт.

9

152436A1

COVER

GUARD - turntable, left hand side

1шт.

10

152108A1

COVER

GUARD - turntable, rear center

1шт.

11

152110A1

COVER

GUARD - turntable, right hand rear

1шт.

12

151354A1

COVER

GUARD - turntable, right hand center

1шт.

13

151568A1

COVER

GUARD - turntable, right hand front

1шт.
