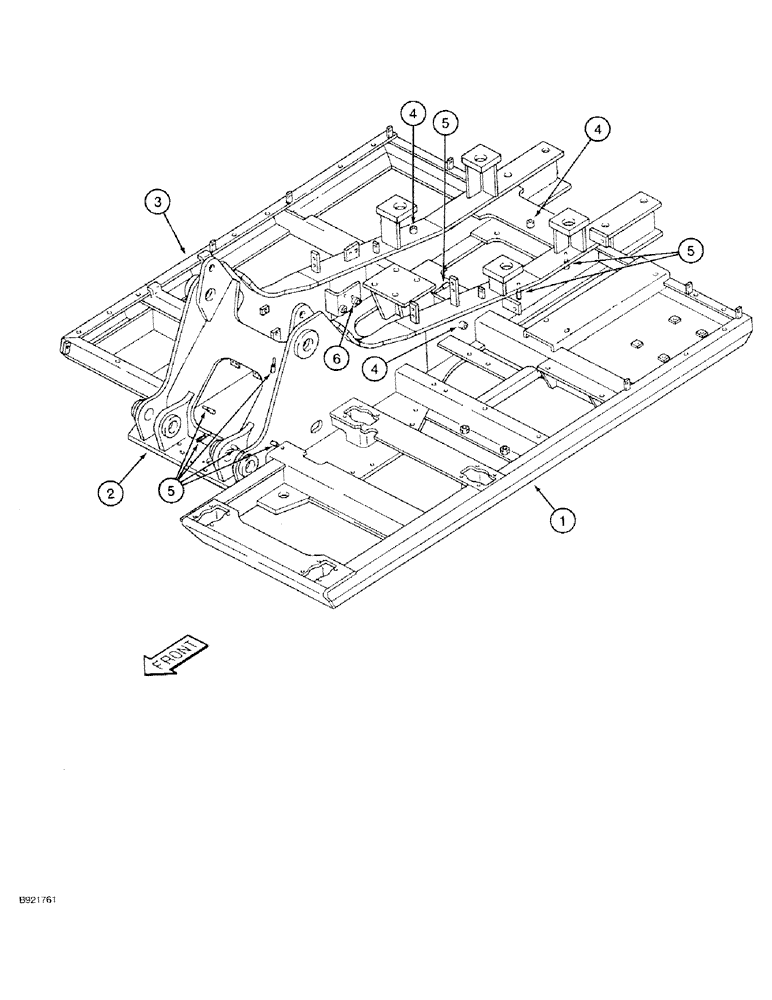

Запчасти Case 9030 (9-06) - TURNTABLE (09) - CHASSIS

1

152437A1

PLATFORM

- turntable, left hand, Serial Range: -DAC0300004

1шт.

1

157162A1

PLATFORM

- turntable, left hand, Start Serial: DAC0300004

1шт.

2

152425A1

FRAME

- boom mounting

1шт.

3

152421A1

PLATFORM

- turntable, right hand

1шт.

4

150508A1

BOSS

- hydraulic tube retaining

8-12шт.

5

150486A1

CLIP

- electrical harness

9шт.

6

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10, If used

2шт.
