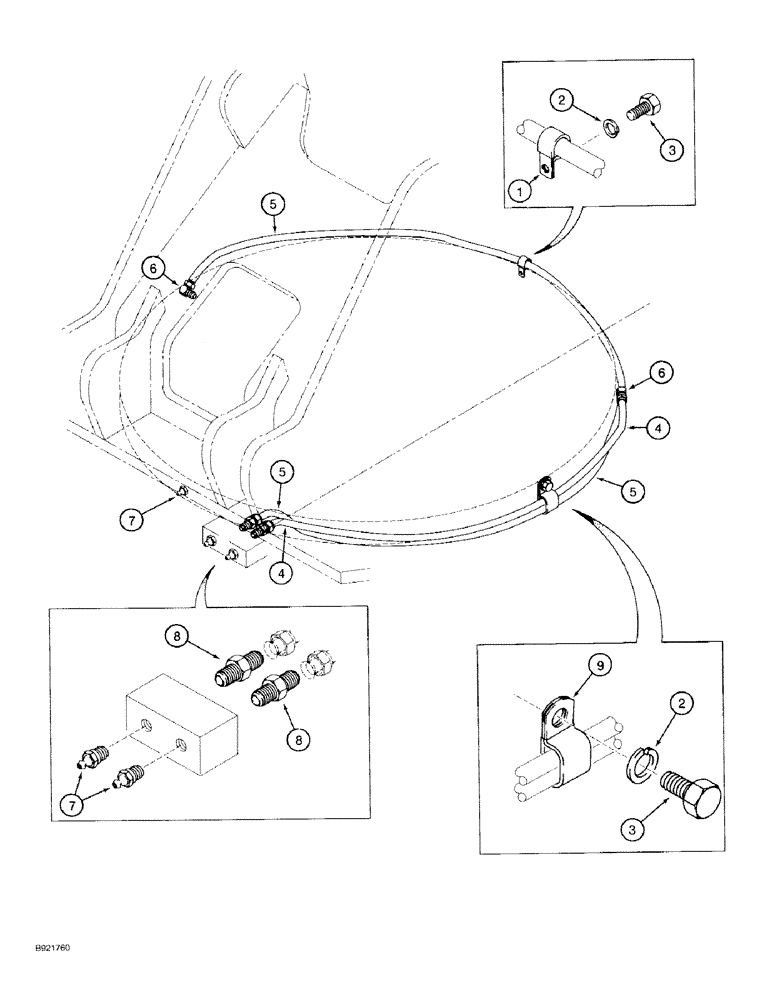

Запчасти Case 9030 (9-04) - TURNTABLE BEARING LUBRICATION LINES (09) - CHASSIS

1

150566A1

CLAMP

- tube

1шт.

2

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

3

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

2шт.

4

151855A1

TUBE,1082.4 mm Length

- lubrication, turntable, short

1шт.

5

151860A1

TUBE

- lubrication, turntable, long

1шт.

6

152627A1

ELBOW

- 90 degree

2шт.

7

153630A1

LUBE NIPPLE

FITTING - grease, straight

3шт.

8

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, lubrication line

2шт.

9

150578A1

CLAMP

- tube, double line

1шт.
