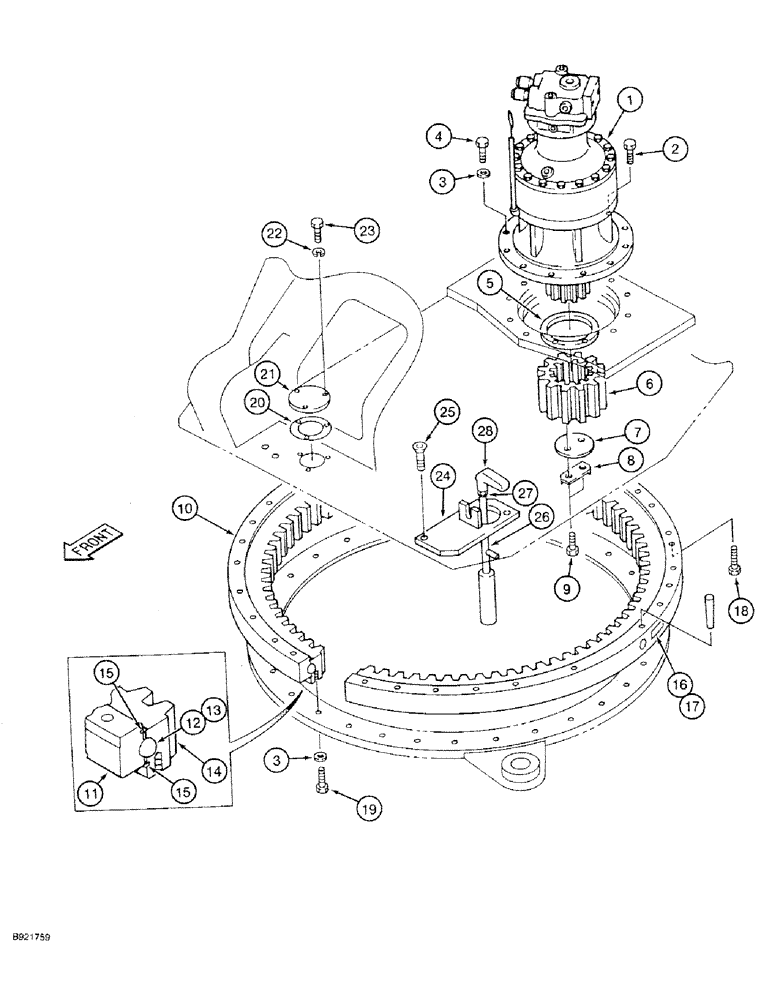

Запчасти Case 9030 (9-02) - TURNTABLE BEARING (09) - CHASSIS

1

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, see Figure 8-48 for correct assembly and components

1шт.

2

150317A1

HEADED PIN,24mm OD x 90mm L

PIN - alignment, headed

1шт.

3

150996A1

WASHER

- special

47шт.

4

828-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9

- hex, 20 - 2.5 x 75 mm, class 10.9

11шт.

5

150415A1

SPACER

- pinion gear

1шт.

6

150310A1

PINION

GEAR - pinion

1шт.

7

150018A1

PLATE

- end

1шт.

8

150002A1

LOCKING PLATE

RETAINER - plate

1шт.

9

31141R1

BOLT,Hex, M16 x 2 x 35mm, Grade 10.9

2шт.

10

150997A1

SLEWING RING

BEARING ASSEMBLY - turntable, Includes: Ref. 11 - 17

1шт.

11

151005A1

RACE

- outer, bearing

1шт.

12

150980A1

BEARING, BALL,28.57mm OD

BEARING - ball

116шт.

13

150982A1

SPACER

- nylon

116шт.

14

151000A1

RACE

- inner, bearing

1шт.

15

150971A1

SEALING RING

RING - seal

2шт.

16

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

17

NSS

NOT SOLD SEPARAT

RIVET - plate mounting

4шт.

18

828-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

- hex, 20 - 2.5 x 90 mm, class 10.9

32шт.

19

828-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9

- hex, 20 - 2.5 x 65 mm, class 10.9

36шт.

20

150370A1

PACKING

GASKET - access cover

1шт.

21

150368A1

PLATE

COVER - access

1шт.

22

892-10008

LOCK WASHER,M8

WASHER - lock, 8 mm

3шт.

23

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

BOLT hex, full threads, 8 - 1.25 x 20 mm, class 10.9

3шт.

24

150020A1

BRACKET

- swing lock pin

1шт.

25

150403A1

SCREW,Spcl, Flat Hd Csk, M10 x 20mm

BOLT - hex socket, special

2шт.

26

150375A1

PIN

- swing lock

1шт.

27

150373A1

NUT

- hex, jam, special

1шт.

28

150347A1

KNOB

HANDLE - control, swing lock

1шт.
