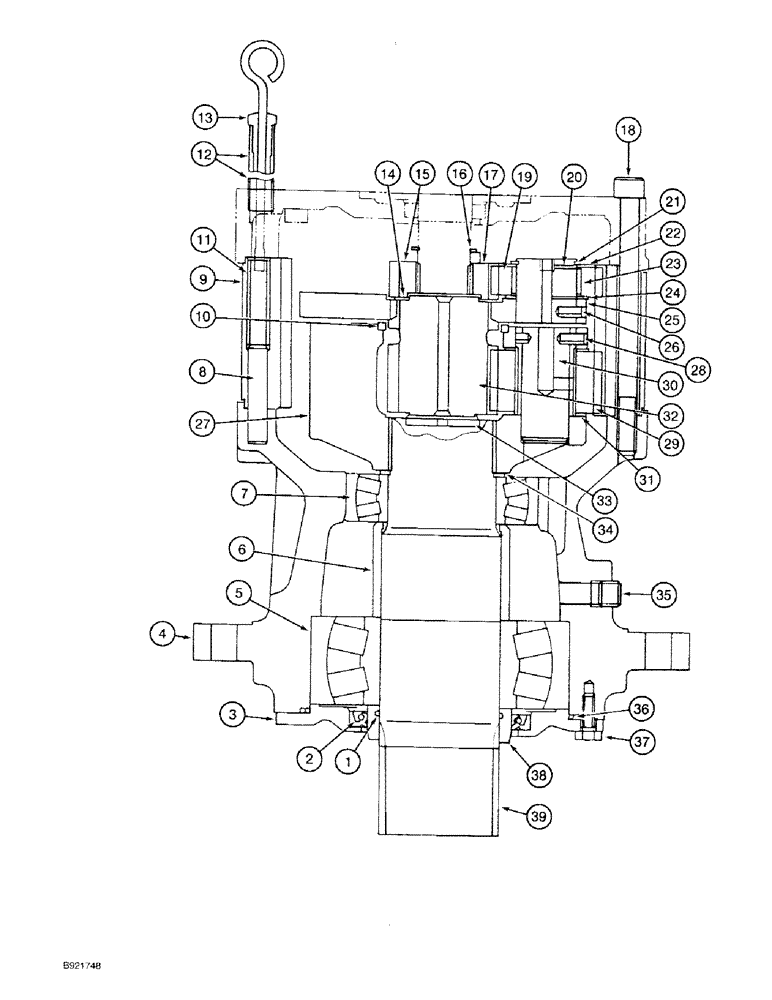

Запчасти Case 9030 (8-86) - 156502A1 SWING REDUCTION GEAR ASSEMBLY, PRIOR TO P.I.N. DAC0300273 (08) - HYDRAULICS

156502A1

GEAR ASSEMBLY - reduction, swing, Includes: Ref. 1 - 39

1шт.

1

154721A1

O-RING,99.4mm ID x 3.1mm Width

- collar, shaft, splined end

1шт.

2

153922A1

OIL SEAL

SEAL - lip, Serial Range: cover-collar

1шт.

3

156306A1

COVER

- splined end

1шт.

4

156307A1

CASE

HOUSING - gear assembly

1шт.

5

156130A1

BEARING, ROLLER,100 mm ID x 215 mm OD x 73 mm

BEARING - roller

1шт.

6

155612A1

SPACER

- bearing

1шт.

7

156131A1

BEARING, ROLLER,50 mm ID x 27 mm

BEARING - roller, inner

1шт.

8

156503A1

PIN

- special

4шт.

9

155266A1

GEAR, RING

GEAR - ring

1шт.

10

155379A1

THRUST RING

RING - thrust

1шт.

11

155478A1

PIPE

SLEEVE - housing

4шт.

12

156504A1

TUBE

- dipstick

1шт.

13

156505A1

BAR

DIPSTICK - oil lube

1шт.

14

156308A1

PLATE

- side

1шт.

15

156509A1

COLLAR

- motor shaft

1шт.

16

800-1145

SNAP RING,M45, Ext

Retaining M45, Ext

1шт.

17

156506A1

GEAR

- sun

1шт.

18

156508A1

BOLT (MACHINE),Hex Skt

BOLT - hex socket, special

12шт.

155777A1

CARRIER ASSY.

CARRIER ASSEMBLY - planetary, primary, Includes: Ref. 19 - 26

1шт.

19

NSS

NOT SOLD SEPARAT

GEAR - planetary carrier

3шт.

20

NSS

NOT SOLD SEPARAT

PIN - planetary gear

3шт.

21

800-1150

SNAP RING,M50, Ext

RING - retaining, external, 50 mm

3шт.

22

156309A1

PLATE

- side

3шт.

23

156507A1

NEEDLE BEARING

BEARING - roller

3шт.

24

156310A1

PLATE

- side

3шт.

25

NSS

NOT SOLD SEPARAT

CARRIER - primary planetary

1шт.

26

738-1820

LOCK PIN,M8 x 20, Slotted

PIN - roll, 8 x 20 mm

3шт.

155778A1

CARRIER ASSY.

CARRIER ASSEMBLY - planetary, secondary, Includes: Ref. 27 - 31

1шт.

27

NSS

NOT SOLD SEPARAT

CARRIER - planetary

1шт.

28

738-1820

LOCK PIN,M8 x 20, Slotted

PIN - roll, 8 x 20 mm

3шт.

29

NSS

NOT SOLD SEPARAT

GEAR - planetary carrier

3шт.

30

NSS

NOT SOLD SEPARAT

PIN - gear

3шт.

31

NSS

NOT SOLD SEPARAT

WASHER - thrust

6шт.

32

155267A1

GEAR

- sun

1шт.

33

153867A1

PLATE

- shaft end

1шт.

34

800-1190

SNAP RING,M90, Ext

RING - retaining, external, 90 mm

1шт.

35

155497A1

PLUG

- side port, housing

1шт.

36

155218A1

O-RING

-, Serial Range: cover-housing

1шт.

37

626-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 30 mm, class 10.9

8шт.

38

155611A1

SEALING RING

RING - seal

1шт.

39

155358A1

DRIVE SHAFT

SHAFT - drive

1шт.
