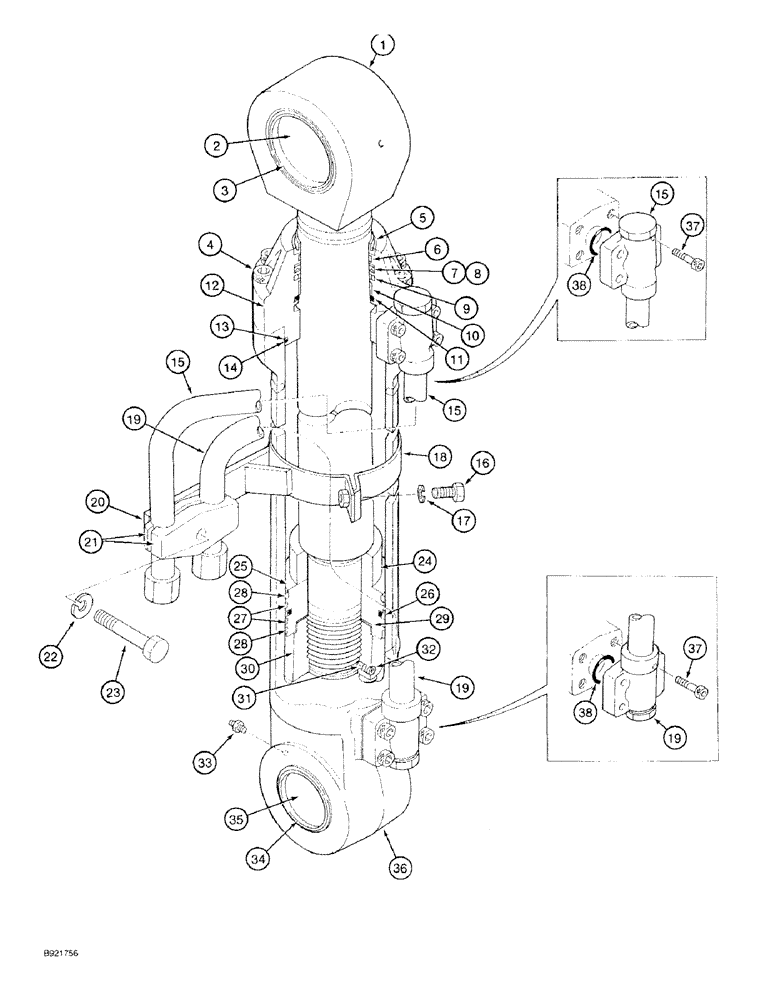

Запчасти Case 9030 (8-84) - BOOM CYLINDERS (08) - HYDRAULICS

151951A1

CYLINDER

ASSEMBLY - boom, right hand1 - 38 and seal kit

1шт.

151960A1

CYLINDER

ASSEMBLY - boom, left hand, Includes: Ref. 1 - 38 and seal kit

1шт.

155868A1

ROD ASSY.

ROD ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - cylinder

1шт.

2

155408A1

BUSHING

- cylinder rod

1шт.

3

155117A1

BACK-UP RING

WIPER - piston rod pin

2шт.

4

863-20070

HEX SOC SCREW,M20 x 70mm, 12.9

BOLT - hex socket, 20 - 2.5 x 70 mm, class 12.9

8шт.

5

158147A1

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit P/N 158170A1

1шт.

6

155324A1

BACK-UP RING

SEAL - piston rod

1шт.

Part of Seal Kit P/N 158170A1

1шт.

7

155232A1

BACK-UP RING

RING - backup, U-cup seal

1шт.

Part of Seal Kit P/N 158170A1

1шт.

8

155131A1

RING

SEAL - U-cup, piston rod

1шт.

Part of Seal Kit P/N 158170A1

1шт.

9

155135A1

SCRAPER RING

RING - buffer, piston rod

1шт.

Part of Seal Kit P/N 158170A1

1шт.

155873A1

GLAND

ASSEMBLY - cylinder, Includes: Ref. 10 - 12

1шт.

10

155419A1

BUSHING

- gland

1шт.

11

155697A1

RING, SNAP

RING - retaining, gland bushing

1шт.

12

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

13

155248A1

BACK-UP RING

RING - backup, gland seal

1шт.

Part of Seal Kit P/N 158170A1

1шт.

14

154760A1

O-RING,119.6mm ID x 5.7mm Width

SEAL - gland to tube

1шт.

Part of Seal Kit P/N 158170A1

1шт.

15

155525A1

HYD TUBE

TUBE - hydraulic, gland end, right hand boom cylinder

1шт.

15

155527A1

HYD TUBE

TUBE - hydraulic, gland end, left hand boom cylinder

1шт.

16

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex, special

2шт.

17

156227A1

WASHER

- lock, special

2шт.

18

156374A1

MOUNTING CLIP

CLAMP - band, plain half

1шт.

19

155526A1

HYD TUBE

TUBE - hydraulic, cylinder tube end, right hand boom cylinder

1шт.

19

155528A1

HYD TUBE

TUBE - hydraulic, cylinder tube end, left hand boom cylinder

1шт.

20

156377A1

BAND

CLAMP - band, tube support half

1шт.

21

155701A1

COLLAR

CLAMP - tube

2шт.

22

153623A1

SPRING WASHER

WASHER - lock, special

1шт.

23

153910A1

BOLT,High Strength, Hex, M14 x 80mm

BOLT - special

1шт.

24

155726A1

BUSHING

BEARING - cushion

1шт.

25

155974A1

PISTON

- cylinder

1шт.

26

155323A1

SEALING RING

SEAL - piston

1шт.

Part of Seal Kit P/N 158170A1

1шт.

27

155320A1

RING

- wear, piston, inner

2шт.

Part of Seal Kit P/N 158170A1

1шт.

28

155319A1

RING

- wear, piston, outer

2шт.

Part of Seal Kit P/N 158170A1

1шт.

29

155721A1

SHIM

WASHER - special

1шт.

Part of Seal Kit P/N 158170A1

1шт.

30

156219A1

NUT

- piston retaining

1шт.

31

155977A1

BALL

- steel, nut locking

1шт.

32

156223A1

SET SCREW

SCREW - set, special

1шт.

33

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

34

155144A1

BACK-UP RING

WIPER - tube mounting pin

2шт.

155863A1

HYD TUBE

TUBE ASSEMBLY -cylinder, Includes: Ref. 35 and 36

1шт.

35

155409A1

BUSHING

- tube

1шт.

36

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

37

861-10050

HEX SOC SCREW,M10 x 50mm, Cl 12.9

BOLT - hex socket, 10 - 1.25 x 50 mm, class 12.9

8шт.

38

154528A1

O-RING

SEAL - o-ring, hydraulic tube

2шт.

158170A1

SEAL KIT

- seal, Includes: Ref. 5-9, 13, 14 and 26-29.

1шт.
