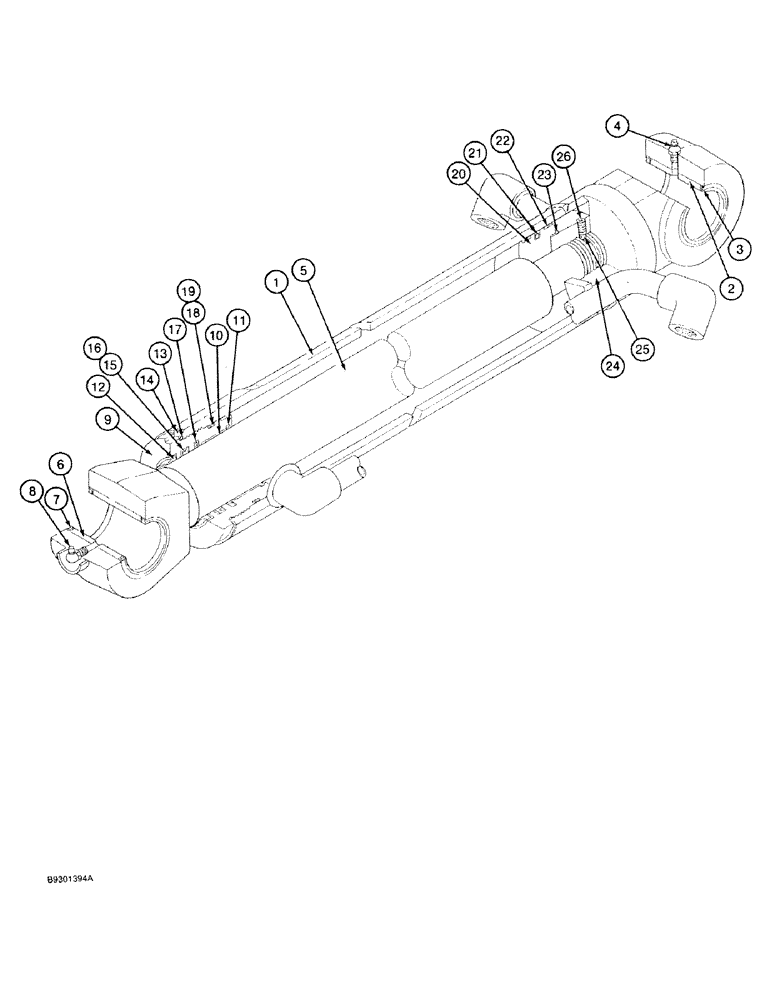

Запчасти Case 9030 (8-82) - 150661A1 BUCKET CYLINDER (08) - HYDRAULICS

150661A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket, Includes: Ref. 1 - 26

1шт.

155862A1

HYD TUBE

TUBE ASSEMBlY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

155401A1

PIN

BUSHING - tube

1шт.

3

155119A1

BACK-UP RING

WIPER - tube mounting pin

2шт.

4

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

155867A1

ROD ASSY.

ROD ASSEMBLY - cylinder, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - cylinder

1шт.

6

155400A1

BUSHING

- rod

1шт.

7

155113A1

SHAFT SEAL

WIPER - rod mounting pin

2шт.

8

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

155872A1

GLAND

ASSEMBLY - cylinder, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

10

155415A1

BUSHING

- gland

1шт.

11

155698A1

RING, SNAP

RING - snap

1шт.

12

158035A1

WIPER SEAL

WIPER - rod

1шт.

Part of Seal Kit P/N 158036A1

1шт.

13

154731A1

O-RING

-, Serial Range: gland-tube

1шт.

Part of Seal Kit P/N 158036A1

1шт.

14

156224A1

LOCK WASHER

WASHER - lock

1шт.

Part of Seal Kit P/N 158036A1

1шт.

15

155230A1

BACK-UP RING

RING - backup

1шт.

Part of Seal Kit P/N 158036A1

1шт.

16

155129A1

RING

SEAL - U-cup, piston rod

1шт.

Part of Seal Kit P/N 158036A1

1шт.

17

155133A1

SEALING RING

RING - buffer, piston rod

1шт.

Part of Seal Kit P/N 158036A1

1шт.

18

154139A1

BACK-UP RING

RING - backup

1шт.

Part of Seal Kit P/N 158036A1

1шт.

19

154712A1

O-RING

-, Serial Range: gland-tube

1шт.

Part of Seal Kit P/N 158036A1

1шт.

20

155972A1

PISTON

- cylinder

1шт.

21

155330A1

SEALING RING

SEAL - piston

1шт.

Part of Seal Kit P/N 158036A1

1шт.

22

155329A1

BACK-UP RING

RING - wear, piston

2шт.

Part of Seal Kit P/N 158036A1

1шт.

23

155718A1

SHIM

- special

1шт.

Part of Seal Kit P/N 158036A1

1шт.

24

156217A1

NUT

- special

1шт.

25

155976A1

BALL

- steel

1шт.

26

156222A1

SCREW

- set

1шт.

158036A1

SEAL KIT

- seal, Includes: Ref. 12-19 and 21-23

1шт.
