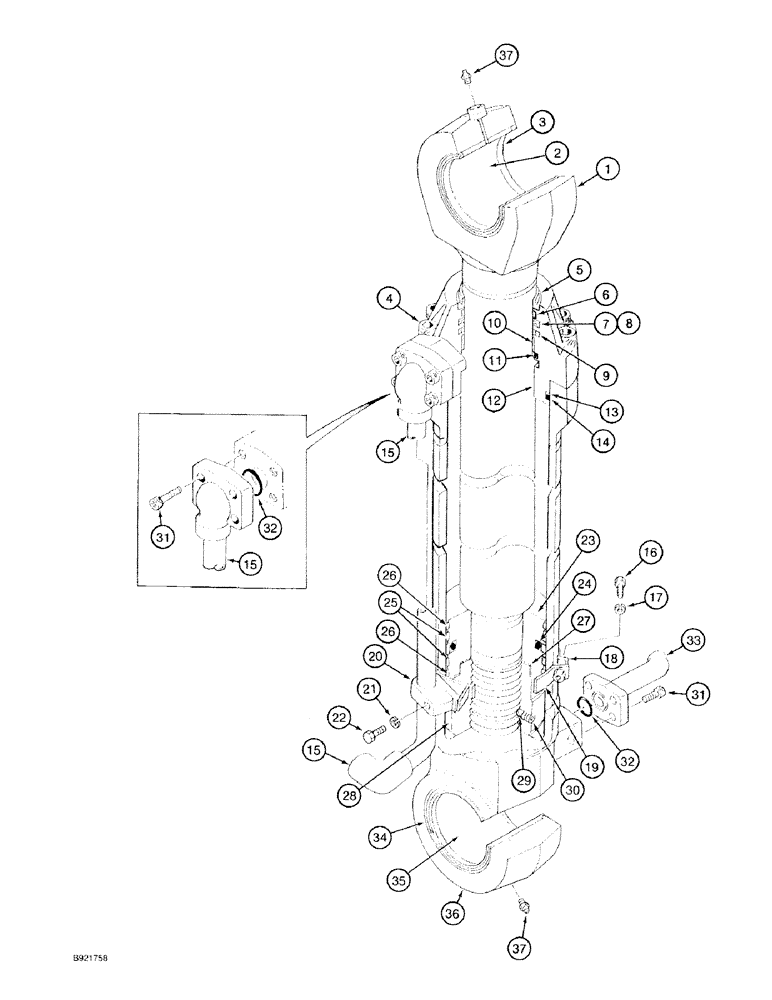

Запчасти Case 9030 (8-80) - BUCKET CYLINDER (08) - HYDRAULICS

152710A1

CYLINDER

ASSEMBLY - bucket, Includes: Ref. 1 - 37 and seal kit

1шт.

155892A1

ROD ASSY.

ROD ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - cylinder

1шт.

2

155411A1

BUSHING

- cylinder rod

1шт.

3

155144A1

BACK-UP RING

WIPER - piston rod pin

2шт.

4

861-20060

HEX SOC SCREW,M20 x 60mm, Cl 12.9

BOLT - hex socket, 20 - 2.5 x 60 mm, class 12.9

8шт.

5

158033A1

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit P/N 158379A1

1шт.

6

155347A1

BACK-UP RING

SEAL - piston rod

1шт.

Part of Seal Kit P/N 158378A1

1шт.

7

155241A1

BACK-UP RING

RING - backup, U-cup seal

1шт.

Part of Seal Kit P/N 158379A1

1шт.

8

155132A1

RING,80mm ID x 95mm OD x 9mm Thk

SEAL - U-cup, piston rod

1шт.

Part of Seal Kit P/N 158379A1

1шт.

9

155136A1

SCRAPER RING

RING - buffer, piston rod

1шт.

Part of Seal Kit P/N 158379A1

1шт.

155893A1

GLAND

ASSEMBLY - cylinder, Includes: Ref. 10 - 12

1шт.

10

155430A1

BUSHING

- gland

1шт.

11

155738A1

RING, SNAP

RING - retaining, gland bushing

1шт.

12

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

13

155234A1

BACK-UP RING

RING - backup, gland seal

1шт.

Part of Seal Kit P/N 158379A1

1шт.

14

154753A1

O-RING,114.4mm ID x 3.1mm Width

SEAL - gland to tube

1шт.

Part of Seal Kit P/N 158379A1

1шт.

15

155543A1

HYD TUBE

TUBE - hydraulic, gland end

1шт.

16

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex, 10 - 1.5 x 35 mm, class 10.9 (Replaces 628-10035)

2шт.

17

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

2шт.

18

156376A1

MOUNTING CLIP

CLAMP - band, plain half

1шт.

19

156379A1

BAND

CLAMP - band, tube support half

1шт.

20

155717A1

COLLAR

CLAMP - tube (Replaces 155716A1)

1шт.

21

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm, Special (Replaces 156227A1)

1шт.

22

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, special (Replaces 158131A1)

1шт.

23

155983A1

PISTON

- cylinder

1шт.

24

155313A1

SEALING RING

SEAL - piston

1шт.

Part of Seal Kit P/N 158379A1

1шт.

25

155326A1

RING

- wear, piston, inner

2шт.

Part of Seal Kit P/N 158379A1

1шт.

26

155308A1

RING

- wear, piston, outer

2шт.

Part of Seal Kit P/N 158379A1

1шт.

27

155737A1

SHIM

WASHER - special

1шт.

Part of Seal Kit P/N 158379A1

1шт.

28

156233A1

NUT

- piston retaining

1шт.

29

155977A1

BALL

- steel, nut locking

1шт.

30

156223A1

SET SCREW

SCREW - set, special

1шт.

31

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - socket head, 10 - 1.5 x 30 mm, class 12.9

8шт.

32

154528A1

O-RING

SEAL - o-ring, hydraulic tube

2шт.

33

155516A1

TUBE

TUBE - hydraulic, cylinder tube end

1шт.

34

155116A1

SHAFT SEAL

WIPER - tube mounting pin

2шт.

155891A1

HYD TUBE

TUBE ASSEMBLY -cylinder, Includes: Ref. 35 and 36

1шт.

35

155410A1

BUSHING

- tube

1шт.

36

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

37

153630A1

LUBE NIPPLE

FITTING - grease, straight

2шт.

158379A1

SEAL KIT

- seal, Includes: Ref. 5-9, 13, 14 and 24-27

1шт.
