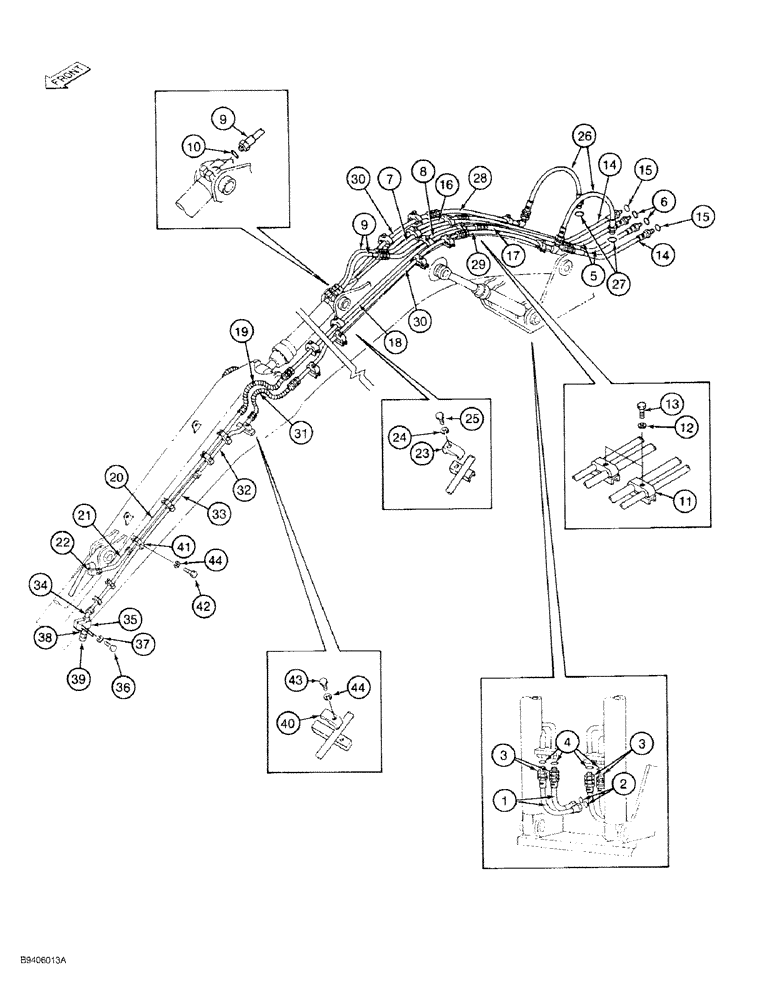

Запчасти Case 9030 (8-76) - BOOM, ARM, BUCKET & ATTACHMENT HYDR CIRCTS, BASE OF BOOM TO BUCKET CYLINDER, MOD W/ 22-1/2 FOOT ARM (08) - HYDRAULICS

1

152347A1

HYDRAULIC HOSE,950mm

- At boom cylinder, Includes Ref. 2 950.00 mm

4шт.

2

154503A1

O-RING

- seal, boom cylinder hose

1шт.

3

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, hydraulic, Includes: Ref. 4

4шт.

4

154503A1

O-RING

- adapter

1шт.

5

152036A1

HOSE ASSY.

HYDRAULIC HOSE - Arm cylinder, At base of boom, Includes Ref. 6

2шт.

6

154523A1

O-RING

- seal, arm cylinder hose

1шт.

7

158355A1

HYD TUBE

TUBE - arm cylinder, closed end

1шт.

8

158356A1

HYD TUBE

TUBE - arm cylinder, rod end

1шт.

9

152036A1

HOSE ASSY.

HYDRAULIC HOSE - At arm cylinder, Includes Ref. 10

2шт.

10

154523A1

O-RING

- seal, hose at arm cylinder

1шт.

11

151489A1

CLAMP

- tube, double

10шт.

12

892-10016

LOCK WASHER,M16

WASHER - lock, 16 mm

10шт.

13

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

10шт.

14

151451A1

HOSE ASSY.,1050.00 mm

HYDRAULIC HOSE - Bucket cylinder, at base of boom, Includes Ref. 15 1050.00 mm

2шт.

15

154523A1

O-RING

- seal, bucket cylinder hose

1шт.

16

158357A1

HYD TUBE

TUBE - to closed end of bucket cylinder

1шт.

17

158358A1

HYD TUBE

TUBE - to rod end of bucket cylinder

1шт.

18

158359A1

HYD TUBE

TUBE - to bucket cylinder

2шт.

19

158360A1

HYDRAULIC HOSE,1500.00 mm

to Bucket Cylinder, at Top of Arm 1500.00 mm

2шт.

20

158361A1

HYD TUBE,3900 mm Length

TUBE - to bucket cylinder, at arm

2шт.

21

158362A1

HYDRAULIC HOSE,600.00 mm

at Bucket Cylinder 600.00 mm

2шт.

22

153622A1

ADAPTER

ELBOW - 90 degree, hydraulic, at bucket cylinder

2шт.

23

151486A1

CLAMP BRACKET

CLAMP - tube

12шт.

24

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

12шт.

25

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

12шт.

26

151312A1

HOSE,1600.00 mm

HYDRAULIC HOSE - Attachment line, at base of boom, Includes Ref. 27 1600.00 mm

2шт.

27

154523A1

O-RING

- hose

1шт.

28

158363A1

TUBE

- attachment line, at base of boom, right hand

1шт.

29

158364A1

TUBE

- attachment line, at base of boom, left hand

1шт.

30

158365A1

TUBE,27.2 mm OD, 3927.2 mm Length

- attachment line, top of boom

2шт.

31

158360A1

HYDRAULIC HOSE,1500.00 mm

Attachment Line, Top of Boom 1500.00 mm

2шт.

32

158366A1

TUBE,27.2 mm OD, 1600, 60 mm Length

- attachment line, top of arm

2шт.

33

158367A1

TUBE,27.2 mm OD, 4162.3 mm Length

- attachment line, side of arm

2шт.

34

152400A1

ADAPTER

ELBOW - 45 degree, attachment line, end of arm

2шт.

35

153692A1

VALVE

- stop, attachment line, bucket end of arm

2шт.

36

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

4шт.

37

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

4шт.

38

150720A1

ADAPTER

- hose

2шт.

39

153683A1

PLUG

- attachment line

2шт.

40

151486A1

CLAMP BRACKET

CLAMP - tube

10шт.

41

152085A1

COLLAR

CLAMP - tube

8шт.

42

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

18шт.

43

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

2шт.

44

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

20шт.
