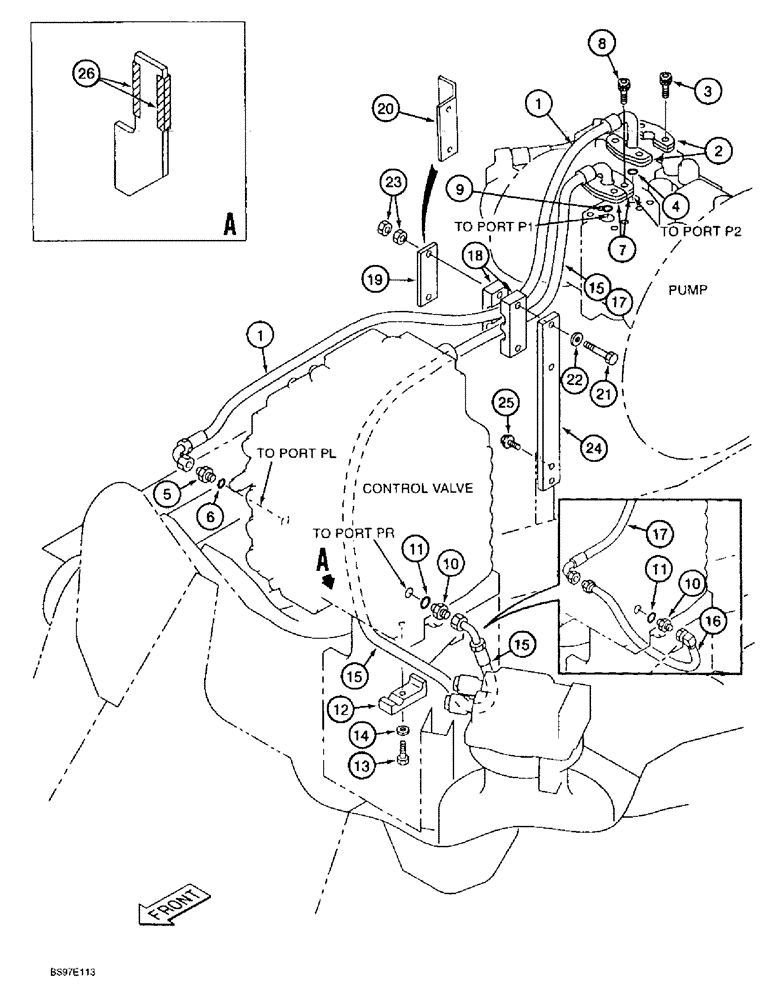

Запчасти Case 9020B (8-008) - CONTROL VALVE SUPPLY LINES (08) - HYDRAULICS

1

161565A1

HYDRAULIC HOSE,19.00 mm ID x 780.00 mm

- RH supply line (Pump port "P2" to control valve port "PL") 19.00 mm ID x 780.00 mm

1шт.

2

153458A1

FLANGE

- split

2шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

4

155210A1

O-RING

- seal, hose

1шт.

5

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 6

1шт.

6

154503A1

O-RING

- adapter

1шт.

7

153458A1

FLANGE

- split

2шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

9

155210A1

O-RING

- seal, hose

1шт.

10

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 11

1шт.

11

154503A1

O-RING

- adapter

1шт.

12

161200A1

COLLAR

CLAMP - tube

1шт.

13

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

- hex, 12 - 1.75 x 55 mm, class 10.9

1шт.

14

150811A1

WASHER

- flat, special, 12 mm

1шт.

15

162114A1

HOSE ASSY.

HOSE - 1300 mm (51-1/8 inch) long, left-hand supply line (pump port "P1" to control valve port "PR"), Serial Range: -DAC0201173

1шт.

16

161199A1

TUBE ASSY.,27.2 mm OD, 346, 145 mm Length

TUBE - left-hand supply line, Start Serial: DAC0201173

1шт.

16

161199A1

TUBE ASSY.,27.2 mm OD, 346, 145 mm Length

TUBE - left-hand supply line, Start Serial: DAC0211001

1шт.

17

163464A1

HYDRAULIC HOSE,19.00 mm ID x 750.00 mm

- - LH supply line (Pump port "P1" to control valve port "PR") 19.00 mm ID x 750.00 mm, Start Serial: DAC0201173

1шт.

17

163464A1

HYDRAULIC HOSE,19.00 mm ID x 750.00 mm

- - LH supply line (Pump port "P1" to control valve port "PR") 19.00 mm ID x 750.00 mm, Start Serial: DAC0211001

1шт.

18

159841A1

COLLAR

CLAMP - hose, Serial Range: -DAC02#2001

2шт.

18

158995A1

COLLAR

CLAMP - hose, Start Serial: DAC02#2001

2шт.

19

159842A1

PLATE, SPACER

PLATE - flat, hose clamp support, Serial Range: -DAC02#2001

1шт.

20

165412A1

BRACKET

PLATE - angled, hose clamp support, Start Serial: DAC02#2001

1шт.

21

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm, Serial Range: -DAC02#2001

2шт.

21

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

- hex, 12 - 1.75 x 90 mm, class 10.9, Start Serial: DAC02#2001

2шт.

22

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm, Serial Range: -DAC02#2001

2шт.

23

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, Start Serial: DAC02#2001

4шт.

24

161567A1

PLATE

BRACKET - mounting, Serial Range: -DAC02#2001

1шт.

24

165411A1

BRACKET

- mounting, Start Serial: DAC02#2001

1шт.

25

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

26

163249A1

CUSHION

- rubber, Serial Range: -DAC0201173

2шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

, Serial Range: -DAC02#2001

4шт.
