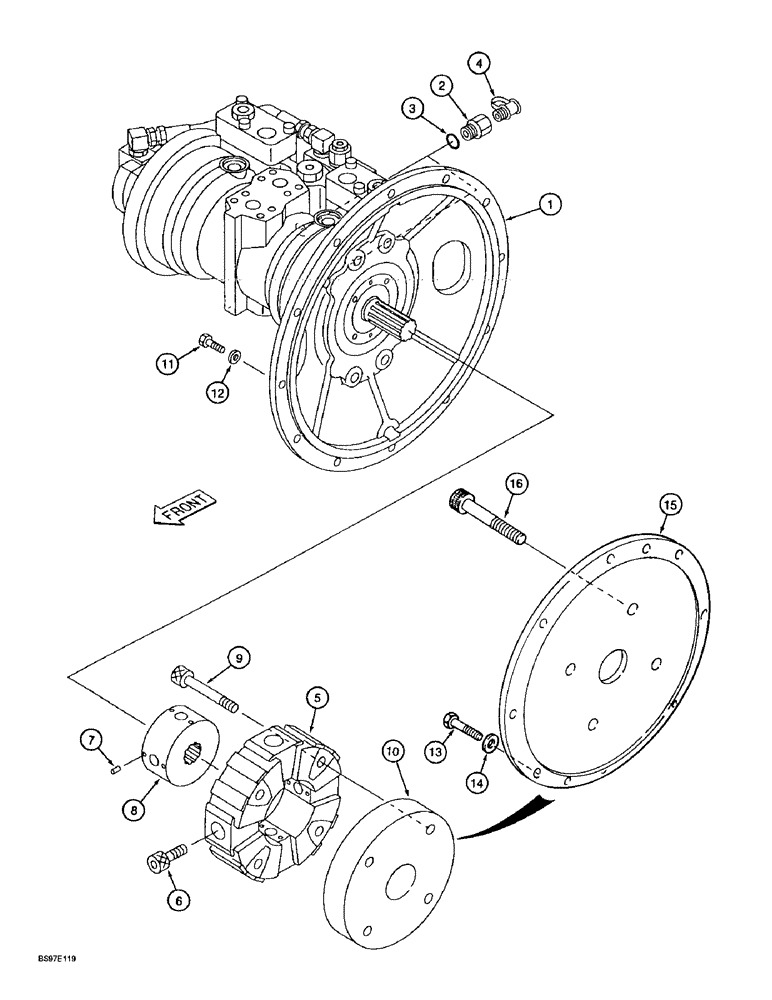

Запчасти Case 9020B (8-004) - HYDRAULIC PUMP AND COUPLING (08) - HYDRAULICS

1

161302A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, parts list Figures 8-96 - 8-104, Serial Range: -DAC02#2001

1шт.

315617A2R

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

315617A1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

1

165409A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, parts list Figures 8-96 - 8-104, Start Serial: DAC02#2001

1шт.

169304A1R

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

169304A1C

CORE-HYDRAULIC PUMP

Return Number, For N. A. Only

1шт.

2

151136A1

BUSHING

ADAPTER - straight, special, oil plug, Includes: Ref. 3

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

O-RING - adapter

1шт.

4

1541849C1

COUPLING

COUPLING ASSEMBLY - diagnostic

2шт.

5

150612A1

FLEXIBLE COUPLING

DAMPER ASSEMBLY - vibration, Includes: Ref. 6 and 7

1шт.

6

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

BOLT - hex socket, 16 - 2.0 x 50 mm, class 12.9

8шт.

7

738-1510

LOCK PIN,M5 x 10, Slotted

PIN - roll, 5 x 10 mm

4шт.

8

152680A1

SPLINED COUPLING

COUPLING - splined

1шт.

9

862-16100

HEX SOC SCREW,M16 x 100mm, Cl 12.9

BOLT - hex socket, 16 - 2.0 x 100 mm, class 12.9, Serial Range: -DAC02#2001

4шт.

10

161212A1

FLANGE

DISK - pump drive, Serial Range: -DAC02#2001

1шт.

12

150409A1

WASHER

WASHER - flat, special, 10.5 x 21 x 3.2 mm

9шт.

13

165057A1

BOLT,Hex, 3/8" - 16 x 28.50mm

BOLT - hex, special, Start Serial: DAC02#2001

8шт.

14

150409A1

WASHER

WASHER - flat, special, 10.5 x 21 x 3.2 mm, Start Serial: DAC02#2001

8шт.

15

153338A1

FLANGE

DISC - pump drive, Start Serial: DAC02#2001

1шт.

16

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

BOLT - hex socket, 16 - 2.0 x 50 mm, class 12.9, Start Serial: DAC02#2001

4шт.

11

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

BOLT, Hex, M10 x 30, 10.9, Full Thd

9шт.
