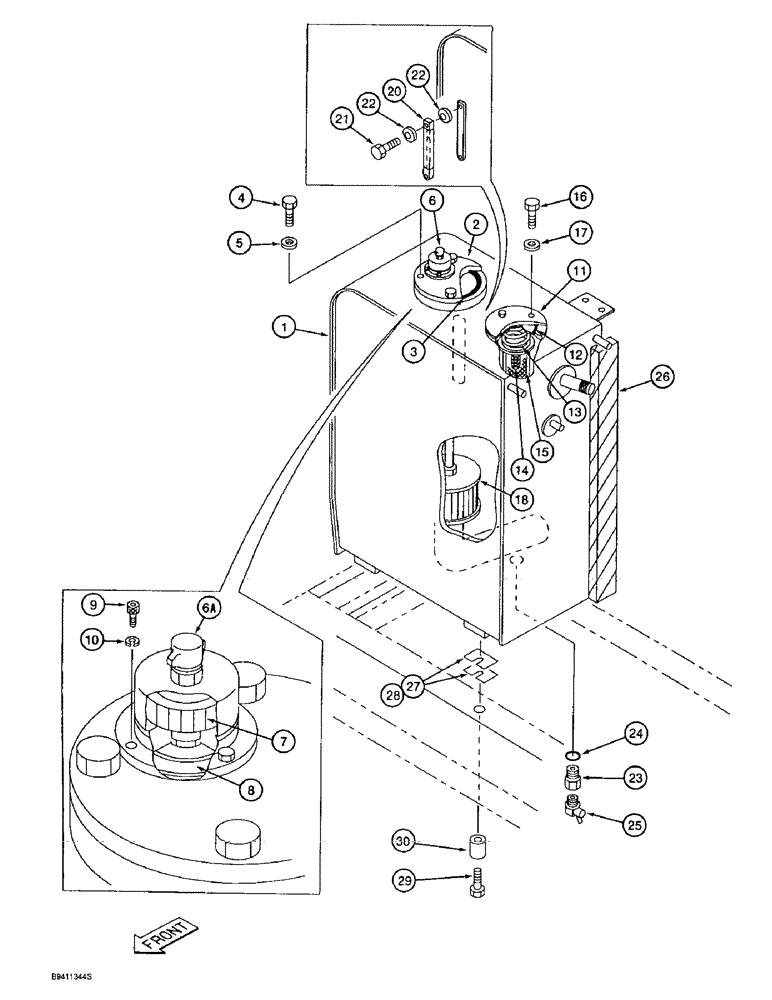

Запчасти Case 9020B (8-002) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

163495A1

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic oil

1шт.

Reservoir P/N 163495A1 is used on excavators P.I.N. DAC0201004 and after.The reservoir "REF" is used on units prior to P.I.N. DAC0201004.Both reservoirs accept drain return lines, but they are not interchangeable.To replace the reservoir on an excavator prior to P.I.N. DAC0201004, order the later configuration reservoir listed above, and modify the hydraulic system.The necessary parts are identified on Figures 8-10, 8-18, 8-42, and 8-50.

1шт.

1

REF

INSTRUCTION

RESERVOIR - hydraulic oil

1шт.

Reservoir P/N 163495A1 is used on excavators P.I.N. DAC0201004 and after.The reservoir "REF" is used on units prior to P.I.N. DAC0201004.Both reservoirs accept drain return lines, but they are not interchangeable.To replace the reservoir on an excavator prior to P.I.N. DAC0201004, order the later configuration reservoir listed above, and modify the hydraulic system.The necessary parts are identified on Figures 8-10, 8-18, 8-42, and 8-50.

1шт.

2

161162A1

COVER

- air breather

1шт.

3

154829A1

O-RING

- breather

1шт.

5

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

6

161066A1

BREATHER ASSY.

BREATHER ASSEMBLY - hydraulic reservoir, Includes: Ref. 6A - 8

1шт.

6a

163559A1

CAP

- nut

1шт.

7

159702A1

HYDRAULIC OIL FILTER

ELEMENT - breather

1шт.

8

159703A1

GASKET

- flat, breather

1шт.

9

862-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 16 mm, class 12.9

4шт.

10

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

11

161154A1

COVER

- filter

1шт.

12

154776A1

O-RING

- hydraulic reservoir cover

1шт.

13

161155A1

SPRING

- compression

1шт.

14

153191A1

VALVE

- relief

1шт.

15

153190A1

HYDRAULIC OIL FILTER

ELEMENT - filter, return

1шт.

16

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

17

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

18

161065A1

HYDRAULIC OIL FILTER

STRAINER - hydraulic oil

1шт.

163560A1

SIGHTGLASS

GAUGE ASSEMBLY - sight, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - gauge

1шт.

21

159492A1

BOLT

BOLT - special

2шт.

22

159493A1

SEALING WASHER

SEAL - washer

4шт.

23

159279A1

SOCKET

REDUCER - drain valve, Includes: Ref. 24

1шт.

24

154503A1

O-RING

- reservoir drain valve

1шт.

25

150962A1

COCK, DRAIN

VALVE - drain

1шт.

26

161183A1

SEAL

SEAL - cushion

1шт.

27

150166A1

SHIM

- 0.8 mm (1/32 inch) thick, between fuel tank and frame

4шт.

28

150479A1

SHIM

- 2.0 mm (5/64 inch) thick, between fuel tank and frame

4шт.

29

828-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

4шт.

30

153357A1

SPACER

- bolt

4шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
