Запчасти Case 9020B (6-012) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS (06) - POWER TRAIN

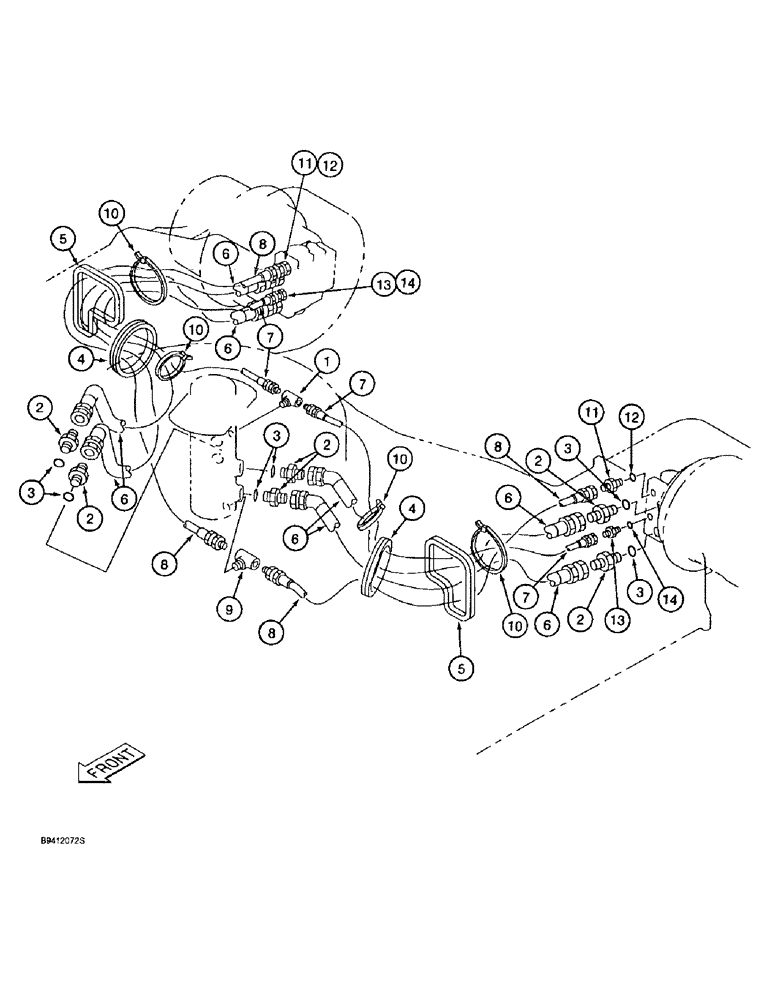

Схема запчастей Case 9020B - (6-012) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS (06) - POWER TRAIN
12
13
7
5
14
10
4
3
14
9
11
13
2
6
8
10
6
4
10
10
12
8
8
2
2
5
2
3
2
3
6
3
6
6
11
8
6
1
7
7

Артикул

Название

Примечание

Количество

1

152509A1

TEE

- special

1шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 3

8шт.

3

154503A1

O-RING

- seal, adapter

1шт.

4

150876A1

RUBBER BLOCK

GROMMET - rubber

2шт.

5

159377A1

RUBBER BLOCK

GROMMET - rubber

2шт.

6

161503A1

HOSE ASSY.

HOSE - 1850 mm (72-13/16 inch) long

4шт.

7

152581A1

HOSE,6.3mm ID x 1900mm L

63.00 mm ID x 1900.00 mm

2шт.

8

150063A1

HOSE ASSY.

HOSE - 1850 mm (72-13/16 inch) long

2шт.

9

152195A1

TEE

- special

1шт.

10

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

4шт.

11

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, Includes: Ref. 12

2шт.

12

154487A1

O-RING

- seal, adapter

2шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 14

2шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

- seal, adapter

2шт.

Выбрано товаров: 14
