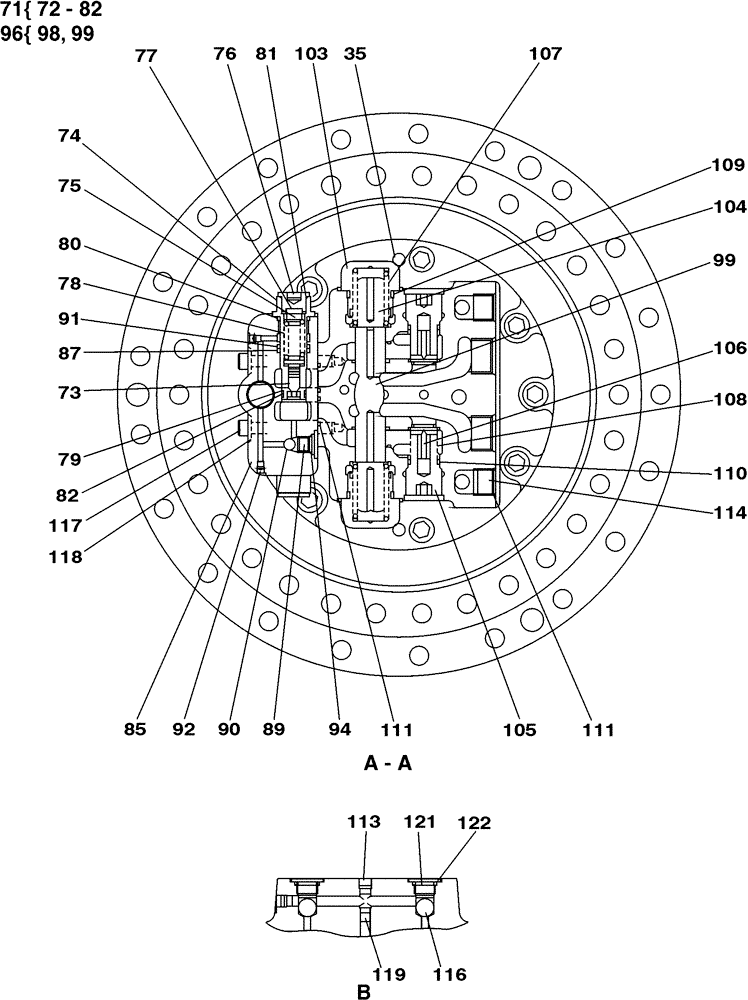

Запчасти Case 9020B (6-008) - VALVE ASSY, RELIEF TRACK DRIVE - SN DAC0202668 AND AFTER (06) - POWER TRAIN

KLA0134

MOTOR, HYDRAULIC

Includes All Parts On Figures 6-007, 6-008

2шт.

35

LA00749

DOWEL

2шт.

LJ00797

VALVE

Incl. 71 - 94

1шт.

71

NSS

NOT SOLD SEPARAT

Valve; Incl. 73 - 82

2шт.

73

LNM0455

BUSHING

2шт.

74

NSS

NOT SOLD SEPARAT

Sleeve

2шт.

75

LPM0131

VALVE

2шт.

76

LMM0567

SLEEVE

2шт.

77

LMM0566

SHIM

2шт.

78

LSM3127

SPRING

2шт.

79

154475A1

O-RING

2шт.

80

154491A1

O-RING

4шт.

81

154483A1

O-RING

2шт.

82

153961A1

BACK-UP RING

4шт.

85

NSS

NOT SOLD SEPARAT

Body

1шт.

86

NSS

NOT SOLD SEPARAT

Piston, Not Illustrated, See Figure 6-007

1шт.

87

154491A1

O-RING

2шт.

88

165237A1

PLUG

Not Illustrated, See Figure 6-007

1шт.

89

165236A1

PLUG

2шт.

90

LB00581

BALL

2шт.

91

153974A1

BACK-UP RING

4шт.

92

LK00296

PLUG

5шт.

93

154487A1

O-RING

Not Illustrated, See Figure 6-007

1шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

LJ00798

VALVE

Incl. 96 - 125

1шт.

96

LH00270

FLANGE

Incl. 98, 99

1шт.

98

LH00271

FLANGE

1шт.

99

NSS

NOT SOLD SEPARAT

Spool

1шт.

100

LJ00799

SPOOL

1шт.

101

NSS

NOT SOLD SEPARAT

Spool, Not Illustrated, See Figure 6-007

1шт.

102

NSS

NOT SOLD SEPARAT

Stop, Not Illustrated, See Figure 6-007

1шт.

103

155474A1

PLUG

2шт.

104

161840A1

STOP

2шт.

105

155476A1

PLUG

2шт.

106

155943A1

VALVE

2шт.

107

156074A1

SPRING

2шт.

108

156073A1

SPRING

2шт.

109

154539A1

O-RING

2шт.

110

154491A1

O-RING

2шт.

111

154487A1

O-RING

4шт.

112

LK00320

PLUG

Not Illustrated, See Figure 6-007

7шт.

113

LK00298

PLUG

4шт.

114

165237A1

PLUG

Not Illustrated, See Figure 6-007

2шт.

115

165283A1

SPRING

Not Illustrated,, See Figure 6-007

1шт.

116

LB00581

BALL

2шт.

117

863-8065

HEX SOC SCREW,M8 x 65mm, Cl 12.9

4шт.

118

156188A1

SPRING WASHER

4шт.

119

NSS

NOT SOLD SEPARAT

Orifice

1шт.

120

NSS

NOT SOLD SEPARAT

Filter, Not Illustrated, See Figure 6-007

1шт.

121

165236A1

PLUG

2шт.

122

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

123

161835A1

TYPE PLATE

Not Illustrated, See Figure 6-007

1шт.

124

837-5012

DOWEL,M5 x 12

Not Illustrated, See Figure 6-007

2шт.

125

861-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

Not Illustrated, See Figure 6-007

9шт.
