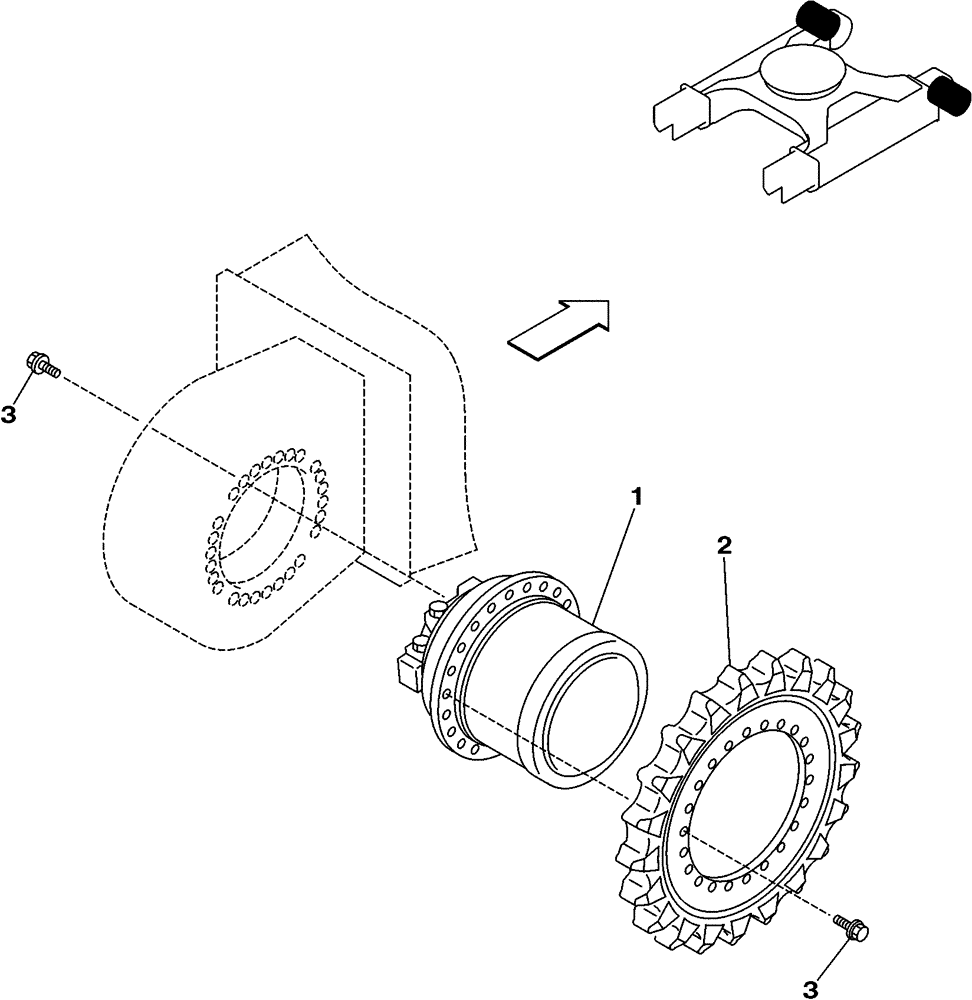

Запчасти Case 9020B (6-006) - TRACK DRIVE ASSY - SN DAC0202668 AND AFTER (06) - POWER TRAIN

1

KLA0134

MOTOR, HYDRAULIC

Travel, See Figures 6-007, 6-008

2шт.

2

161299A1

SPROCKET ASSY.

2шт.

3

86900235

BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

94шт.

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

17,5 x 30 x 4 mm

94шт.
