(6-001) - TRACK DRIVE ASSEMBLY - PRIOR TO SN DAC0202754

Запчасти Case 9020B (6-001) - TRACK DRIVE ASSEMBLY - PRIOR TO SN DAC0202754 (06) - POWER TRAIN

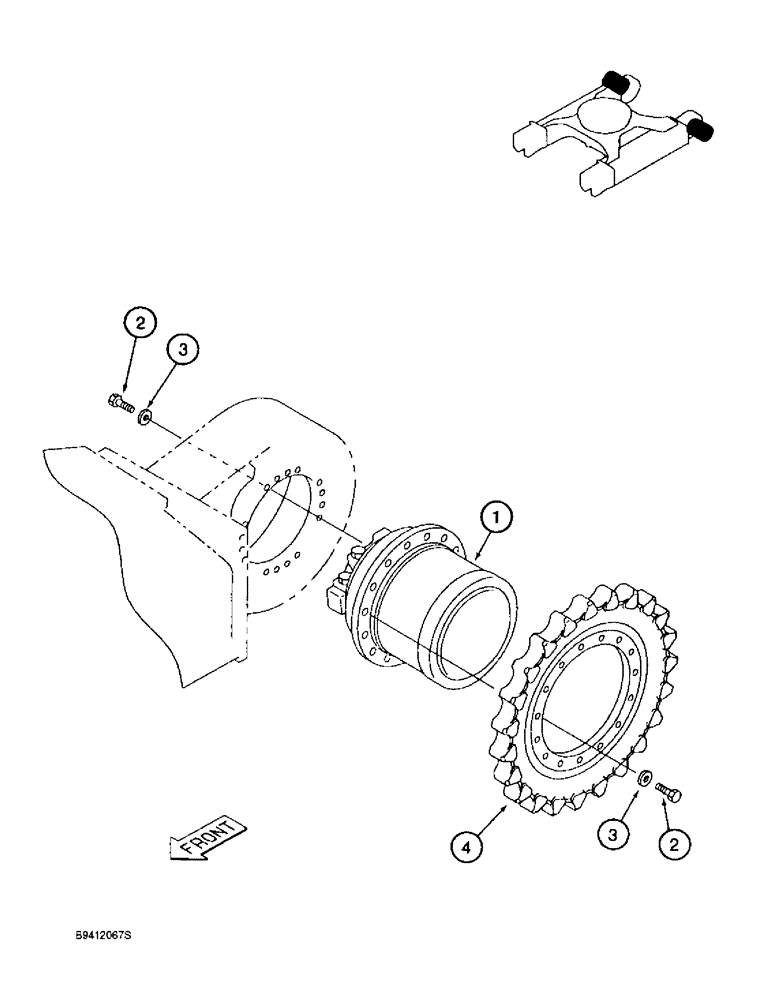

Схема запчастей Case 9020B - (6-001) - TRACK DRIVE ASSEMBLY - PRIOR TO SN DAC0202754 (06) - POWER TRAIN
3
1
2
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

161303A1

MOTOR, HYDRAULIC

Track Drive; Includes 161320A1 and 161321A1

2шт.

161320A1

MOTOR, HYDRAULIC

Track Drive; See Figure 6-003 - 6-005

1шт.

161321A1

GEAR

Final Drive; See Figure 6-002

1шт.

2

627-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9, Full Thd

94шт.

3

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

94шт.

4

161299A1

SPROCKET ASSY.

2шт.
