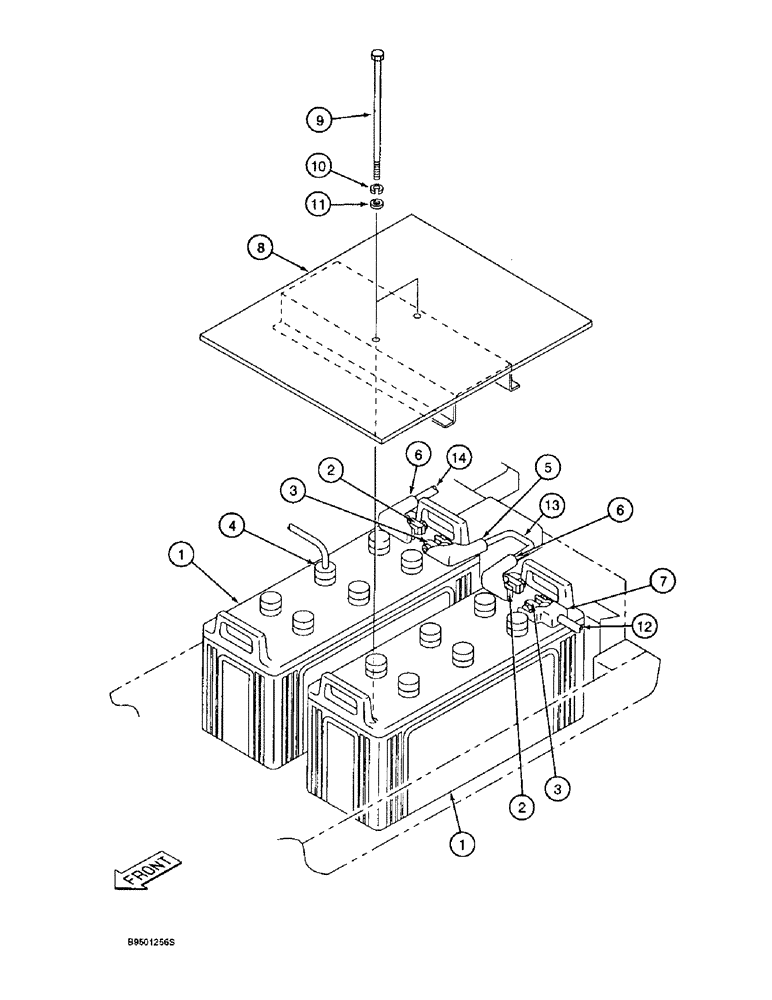

Запчасти Case 9020B (4-020) - BATTERIES, CABLES AND BATTERY MOUNTING (04) - ELECTRICAL SYSTEMS

1

158877A1

BATTERY, DRY

BATTERY - 12 volt, wet charged

2шт.

1

EN120W

DRY BATTERY

Ship Direct Option, US Only

1шт.

1

CCN120

BATTERY, DRY

Ship Direct Option, Canada Only

1шт.

2

158403A1

TERMINAL CONNECTOR

CLAMP - terminal, positive

2шт.

3

150455A1

TERMINAL CONNECTOR

CLAMP - terminal, negative

2шт.

4

150126A1

SENSOR

- low electrolyte

1шт.

5

150360A1

CAP

COVER - terminal

1шт.

6

150364A1

CAP

COVER - terminal

2шт.

7

150366A1

CAP

COVER - terminal

1шт.

8

152820A1

HOLDER

- battery

1шт.

9

152821A1

BOLT,Spcl, Hex, M10 x 270mm

BOLT - hex, special

2шт.

10

892-11010

LOCK WASHER,M10

2шт.

11

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

12

161650A1

CABLE ASSY.

CABLE - electrical, battery ground

1шт.

13

159914A1

CABLE ASSY.

CABLE -, Serial Range: battery-battery

1шт.

14

161651A1

CABLE ASSY.

CABLE - battery, special, Serial Range: battery-relay

1шт.
