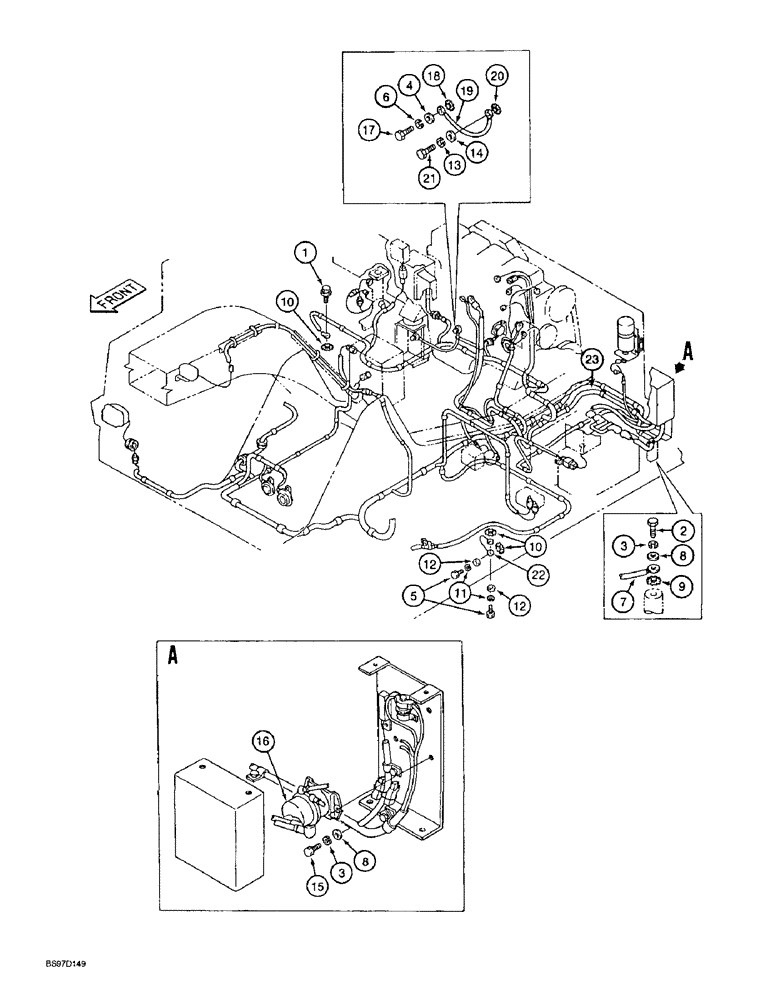

Запчасти Case 9020B (4-018) - GROUND CABLES AND BATTERY RELAY (04) - ELECTRICAL SYSTEMS

1

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

1шт.

2

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

1шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

5

627-6008

BOLT,Hex, M6 x 1 x 8mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 8 mm, class 10.9, standard models, Serial Range: -DAC0201338

2шт.

See Figure 1-002 for explanation of model variations.

1шт.

5

164796A1

BOLT,High Strength, Hex, M6 x 10mm, W/ LW

BOLT - special, standard models, special application models, Serial Range: DAC0201338-DAC0212001

2шт.

See Figure 1-002 for explanation of model variations.

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

161650A1

CABLE ASSY.

CABLE - electrical, battery ground

1шт.

9

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

10

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

3шт.

11

892-11005

LOCK WASHER,M5

WASHER, LOCK, , Standard models M5, Serial Range: -DAC0201338

2шт.

See Figure 1-002 for explanation of model variations.

1шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm, Standard models, Serial Range: -DAC0201338

2шт.

See Figure 1-002 for explanation of model variations.

1шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

16

159897A1

RELAY

- battery

1шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

1шт.

18

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

19

163250A1

CABLE ASSY.

CABLE - electrical, engine ground

1шт.

20

893-11012

LOCK WASHER,Ext Tooth, M12

WASHER, LOCK, Ext Tooth, M12

1шт.

21

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

1шт.

22

159912A1

CABLE ASSY.

STRAP - ground

1шт.

23

161652A1

CABLE ASSY.

CABLE - battery, special

1шт.

24

231959A1

DIODE

- electrical, not shown

6шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

3шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.
