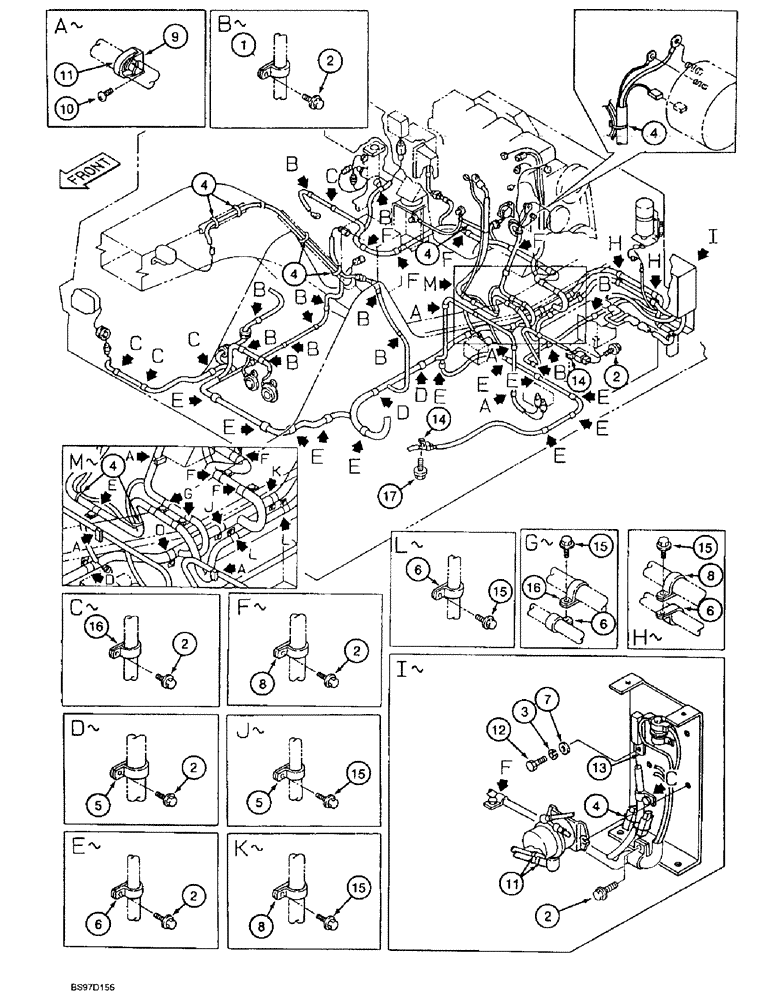

Запчасти Case 9020B (4-016) - MAIN ELECTRICAL SYSTEM CLAMPING, P.I.N. DAC0202001 AND AFTER (04) - ELECTRICAL SYSTEMS

1

153039A1

CLAMP

- P-type, 12 mm ID

19шт.

2

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

44шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

4

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

10шт.

5

158970A1

COLLAR

CLAMP - P-type

6шт.

6

156462A1

COLLAR

CLAMP - P-type

21шт.

8

159024A1

COLLAR

CLAMP - P-type

12шт.

9

150860A1

COLLAR

BRACKET - support

7шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

7шт.

11

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

7шт.

12

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

1шт.

13

158963A1

CLIP

- wire

1шт.

14

165405A1

CLIP

- wire

2шт.

15

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

BOLT - special

4шт.

16

157806A1

COLLAR

CLAMP - P-type

3шт.

17

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.
