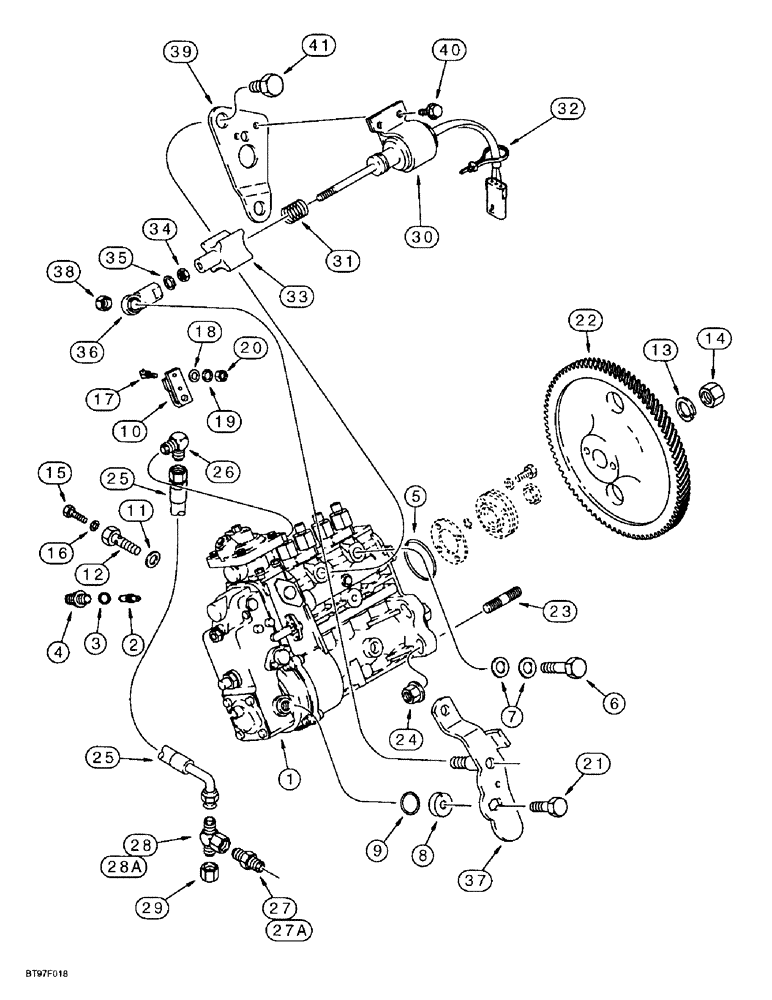

Запчасти Case 9020B (3-024) - FUEL INJECTION PUMP AND DRIVE, 4TA-390 EMISSIONS CERTIFIED ENGINE, *P.I.N. DAC0202001 AND AFTER (03) - FUEL SYSTEM

1

J928603

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 21

1шт.

1

JR928603

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured assembly, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 21

1шт.

1

JC928603

CORE-INJECTION PUMP

Return Number

1шт.

1

JC930153

CORE-INJECTION PUMP

Return Number - use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 21

1шт.

2

A77720

PIN

PIN - timing

1шт.

3

J928981

LOCK WASHER

WASHER - lock, timing plug

1шт.

4

J912888

PLUG

PLUG - timing

1шт.

5

J930993

O-RING

O-RING - sealing

1шт.

6

J912886

VALVE

VALVE - overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

2шт.

8

691292C1

RETAINER

HOUSING - spring return

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

O-RING - sealing, special

1шт.

10

1808728C1

LEVER

LEVER - throttle control

1шт.

11

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

GASKET - vent screw

1шт.

12

J913320

SCREW

SCREW - vent

1шт.

13

A77775

LOCK WASHER

WASHER - lock

1шт.

14

A41852

LOCK NUT

NUT - hex, self-locking

1шт.

15

B41211

SCREW

SCREW - vent

1шт.

16

933696R1

SEALING RING,M6 x 10 x 1

RING - 6 x 10 mm

1шт.

17

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

WASHER - flat, 6.6 x 12 x 1.6 mm

1шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

20

829-1306

NUT,M6, Cl 10

NUT - hex, 6 mm - 1.0, class 10

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

BOLT - hex, full threads, 6 - 1.0 x 16 mm, class 10.9

1шт.

22

J931450

PINION

GEAR - fuel pump

1шт.

23

J915306

STUD

STUD - pump mounting

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

NUT - hex flange, 10 mm - 1.5

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

Flexible

1шт.

26

A77512

ELBOW

ELBOW - 90 degree

1шт.

27

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

NIPPLE - hex, 1/8 PT x 1-1/16 inch, prior to Engine Serial Number 45537238

1шт.

27a

J941472

FITTING

NIPPLE - hex, 7/16-20 inch flare x 10 - 1.0 mm str thread, Engine Serial Number 45537238 and after

1шт.

28

J924346

TEE

TEE - oil pressure, prior to Engine Serial Number 45537238

1шт.

28a

J933291

TEE

TEE - 7/16-20 flare x flare x fem swivel, Engine Serial Number 45537238 and after

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

CAP - hex, 7/16-20 inch

1шт.

30

J931590

SOLENOID

SOLENOID - fuel shutoff, 24 volt, Includes: Ref. 31 - 36

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - return, plunger

1шт.

32

NSS

NOT SOLD SEPARAT

STRAP - tie, Serial Range: boot-solenoid

1шт.

33

NSS

NOT SOLD SEPARAT

BOOT - protective, plunger

1шт.

34

NSS

NOT SOLD SEPARAT

NUT - hex, jam

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

36

NSS

NOT SOLD SEPARAT

JOINT - ball

1шт.

37

J930657

LEVER

LEVER - pump shutoff

1шт.

38

J930683

LOCK NUT

NUT - hex, 5 mm - 0.8

1шт.

39

J930589

SUPPORT

BRACKET - solenoid mounting

1шт.

40

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.0 x 12 mm

2шт.

41

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

BOLT - hex, 16 - 2.0 x 12 mm

3шт.
