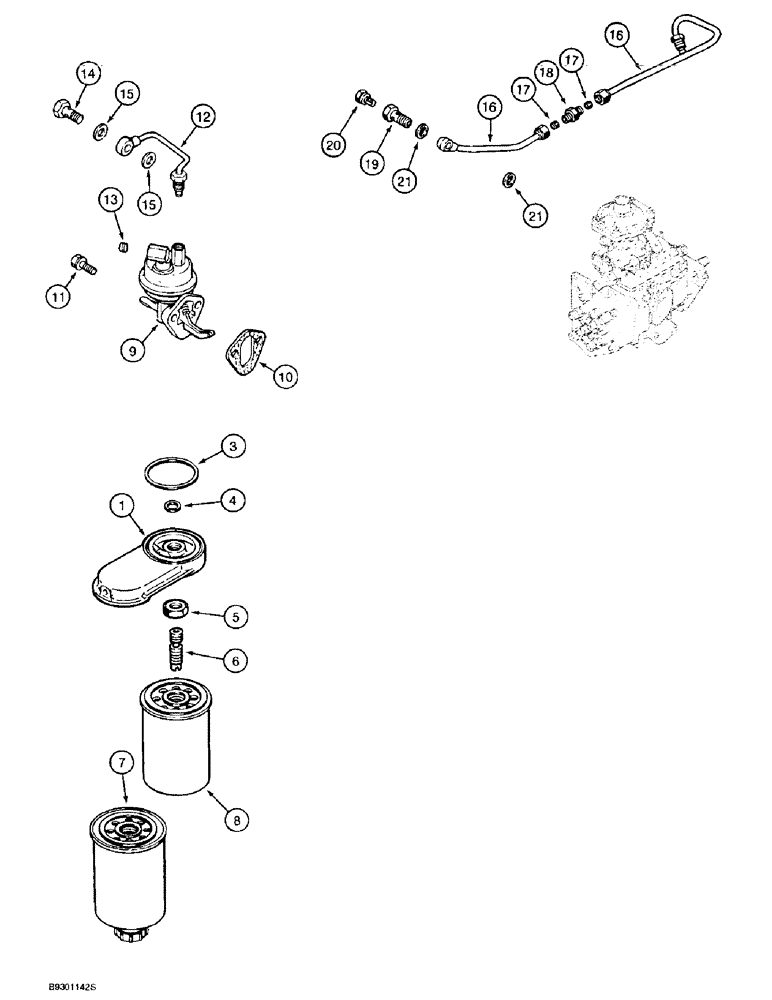

Запчасти Case 9020B (3-016) - FUEL FILTER AND LIFT PUMP, 4TA-390 ENGINE, PRIOR TO P.I.N. DAC0202001 (03) - FUEL SYSTEM

1

J897331

SUPPORT

HEAD - fuel filter, replaces J915240 head

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter, replaces J903845 adapter

1шт.

7

J925274

FILTER, FUEL

FILTER - fuel, primary

1шт.

8

J931063

FUEL FILTER

FILTER - fuel, secondary, replaces J903640 filter

1шт.

9

J928143

PUMP

- lift, fuel, replaces J904374 pump

1шт.

10

J931348

GASKET

- mounting, fuel transfer pump, replaces J914304 gasket

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm, Fuel lift pump to block

2шт.

12

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY - fuel supply, fuel lift pump to fuel filter inlet in cylinder head

1шт.

13

221-841

PLUG

- hex socket, 1/4 inch PT, fuel inlet

1шт.

14

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm, fuel filter to lift pump tube

1шт.

15

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm, banjo connectors

2шт.

16

J918640

FUEL TUBE

TUBE ASSEMBLY - fuel supply, two-piece, Includes: Ref. 17 and 18

1шт.

17

222-103

SLEEVE,5/16" Tube

2шт.

18

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER - compression, 5/16 inch tube OD

1шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW - hex, special, vent

1шт.

21

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.
