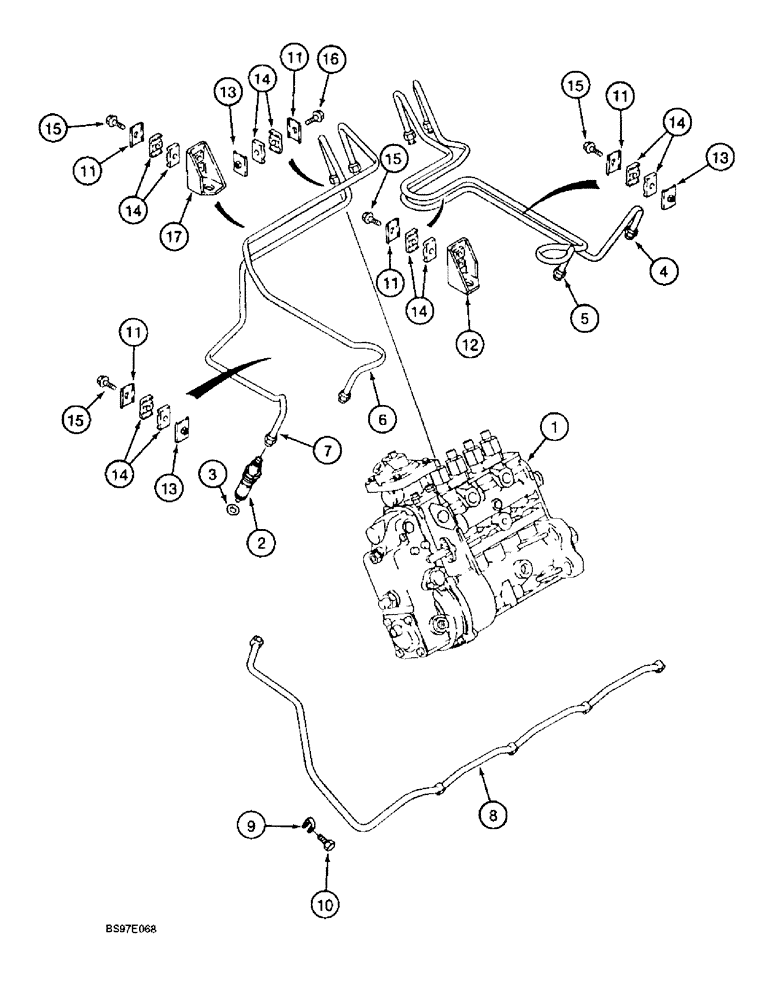

Запчасти Case 9020B (3-014) - FUEL INJECTION SYSTEM, 4TA-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J928603

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, parts list Figure 3-24

1шт.

2

J929490

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, see Figure 3-28

4шт.

2

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

4шт.

2

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

4шт.

3

J906659

SEAL

SEAL - injector nozzle, 7 mm injector tip, see Figure 3-28, Ref. 3

4шт.

4

J932054

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 816 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

5

J932055

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 816 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

6

J932056

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 816 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

7

J932057

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 816 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

8

J929558

MANIFOLD

TUBE - manifold, fuel drain, tee to fuel tank return

1шт.

9

J903380

SEAL

SEAL - connector

4шт.

10

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special, Fuel drain manifold M6 x 1 x 14.3

4шт.

11

CURJ904711

CLAMP

BRACKET - fuel tube

5шт.

12

J917777

BRACE

BRACE - fuel tube

2шт.

13

J917717

BRACE

BRACKET - fuel tube

3шт.

14

J917746

CLAMP

CLAMP - fuel tube

12шт.

15

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

4шт.

16

J920855

CAPTIVE WASHER SCREW

BOLT - hex, captive washer, special, 5 - 0.8 x 35 mm

1шт.

17

J919086

BRACKET

BRACE - fuel tube

1шт.
