(3-008) - THROTTLE AND FUEL SHUTOFF CONTROLS, PRIOR TO P.I.N. DAC02#2001

Запчасти Case 9020B (3-008) - THROTTLE AND FUEL SHUTOFF CONTROLS, PRIOR TO P.I.N. DAC02#2001 (03) - FUEL SYSTEM

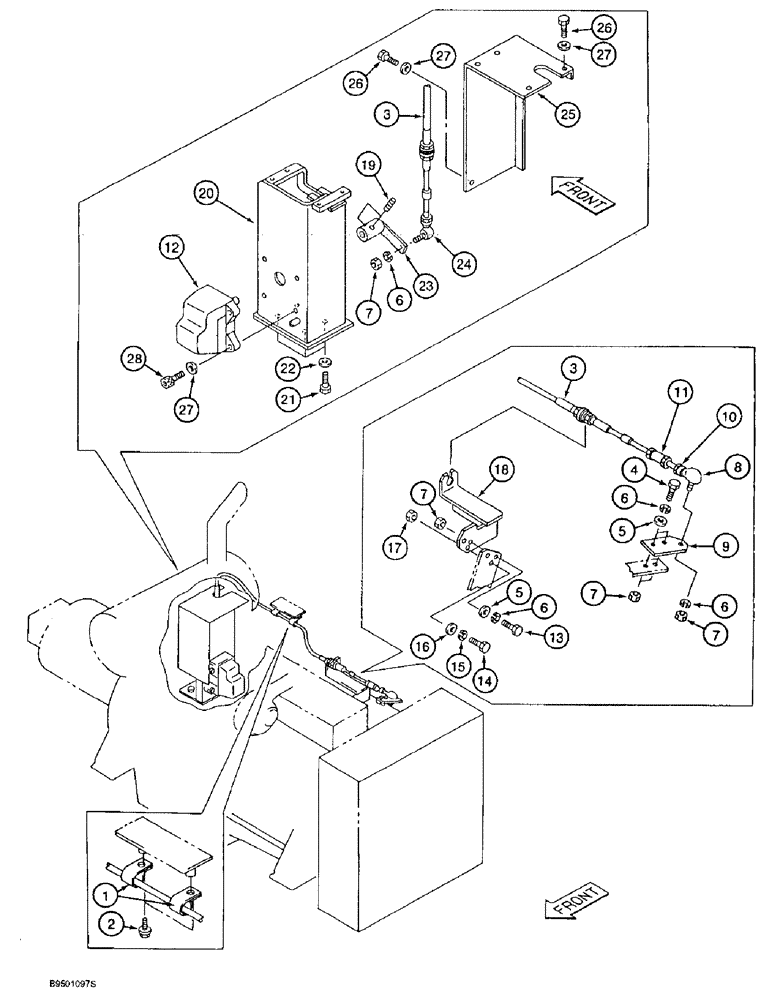

Схема запчастей Case 9020B - (3-008) - THROTTLE AND FUEL SHUTOFF CONTROLS, PRIOR TO P.I.N. DAC02#2001 (03) - FUEL SYSTEM
4
6
28
7
23
6
9
27
1
26
13
26
17
7
25
22
27
11
27
6
7
20
18
3
16
5
2
6
7
3
15
10
12
19
8
14
24
5
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

156462A1

COLLAR

CLAMP - P-type

2шт.

2

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

2шт.

3

161645A1

CABLE

- throttle control

1шт.

4

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm

4шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

7

829-1406

NUT,Hex, M6 x 1, Cl 10.9

6шт.

8

150045A1

BALL JOINT

JOINT - ball

1шт.

9

161536A1

CONTROL LEVER

LEVER - throttle control

1шт.

10

829-12406

NUT,M6, Cl 8 5, LH

- hex, left-hand threads, 6 mm - 1.0, class 10

1шт.

11

151363A1

THREADED ROD

ROD - throttle control

1шт.

12

160614A1

MOTOR, ELECTRIC

MOTOR - throttle control, component parts not serviced separately

1шт.

12

160614A1R

REMAN-ELECTRIC MOTOR

9020B CASE CRAWLER EXCAVATOR, MOTOR, Throttle Control, PRIOR TO P.I.N. DAC02#2001 (1/95-)

1шт.

12

160614A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

13

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm, class 10.9

2шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

18

161150A1

BRACKET

- cable mounting

1шт.

19

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

SCREW - set, hex socket, 8 - 1.25 x 12 mm, cup point

2шт.

20

160664A1

SUPPORT

BRACKET - motor mounting

1шт.

21

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

22

150811A1

WASHER

- flat, special, 12 mm

4шт.

23

161741A1

LEVER

- throttle

1шт.

24

150054A1

BALL JOINT

JOINT - ball

1шт.

25

160665A1

COVER

- throttle cable

1шт.

26

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

5шт.

27

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

9шт.

28

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9

4шт.

14

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.
