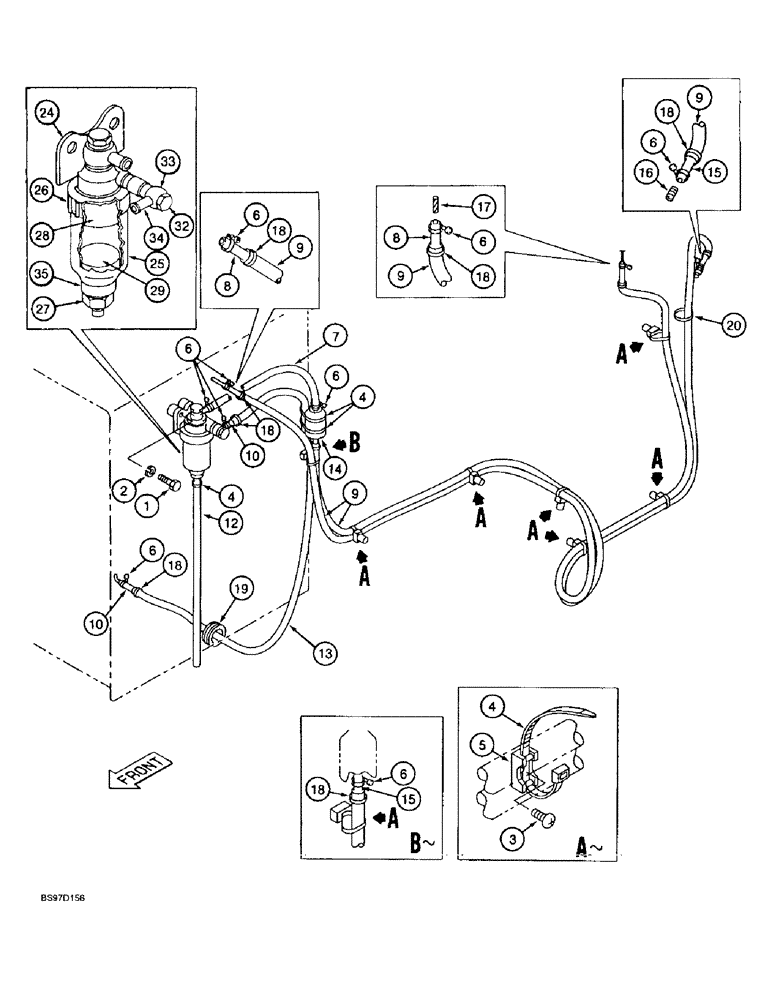

Запчасти Case 9020B (3-004) - FUEL LINES, PRIOR TO P.I.N. DAC02#2001 (03) - FUEL SYSTEM

1

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

2

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

3

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

7шт.

4

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

10шт.

5

150860A1

COLLAR

BRACKET - support

7шт.

6

153043A1

COLLAR

CLAMP - wire-type

8шт.

7

157592A1

LARGE HOSE

TUBE - vinyl, pink, 400 mm (15-3/4 inch) long, water separator to in-line fuel filter

1шт.

8

157649A1

TUBE

- vinyl, blue, 2700 mm (106-1/4 inch) long, return line from engine to fuel tank

1шт.

9

150782A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 2500 mm (98-7/16 inch) long

2шт.

10

150247A1

FUEL HOSE,9.5 mm ID, 14.7 mm OD

TUBE - vinyl, pink, 1200 mm (47-1/4 inch) long, fuel tank to water separator

1шт.

12

157631A1

TUBE

- vinyl, blue, 850 mm (33-1/2 inch) long, water separator drain

1шт.

13

150774A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 1000 mm (39-3/8 inch) long

1шт.

14

D139225

FILTER, FUEL

FILTER - fuel, in-line, replaces D145357 filter

1шт.

15

157616A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.7 mm OD

TUBE - vinyl, pink, 2700 mm (106-1/4 inch) long, in-line fuel filter to engine

1шт.

16

151659A1

NIPPLE, LUBE

ADAPTER - straight, special

1шт.

17

152374A1

SPACER

SLEEVE - rubber

1шт.

18

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

6шт.

19

150520A1

GROMMET

- rubber

1шт.

20

161844A1

MOUNTING CLIP

STRAP - tie

1шт.

151071A1

WATER TRAP

SEPARATOR ASSEMBLY - water, Includes: Ref. 24 - 35

1шт.

24

156289A1

FILTER HEAD

COVER - water separator

1шт.

25

156240A1

FILTER BOWL

HOUSING - water separator

1шт.

26

156184A1

RING NUT

NUT - ring-type

1шт.

27

155467A1

PLUG, DRAIN

PLUG - drain

1шт.

28

156291A1

PLATE

- baffle

1шт.

29

156290A1

FLOAT

INDICATOR - floating

1шт.

30

155175A1

O-RING

- separator, middle section of separator, not shown

1шт.

31

155174A1

O-RING

- separator, lower section of separator, not shown

1шт.

32

156185A1

BANJO BOLT

BOLT - special

2шт.

33

155297A1

GASKET

GASKET - banjo fitting

4шт.

34

156292A1

FITTING

- banjo-type

2шт.

35

155353A1

PLUG

CAP - drain

1шт.
