Запчасти Case 9020B (2-090) - ENGINE GASKET KITS, 4TA-390 ENGINE, PRIOR TO P.I.N. DAC02#2001, VALVE GRIND (02) - ENGINE

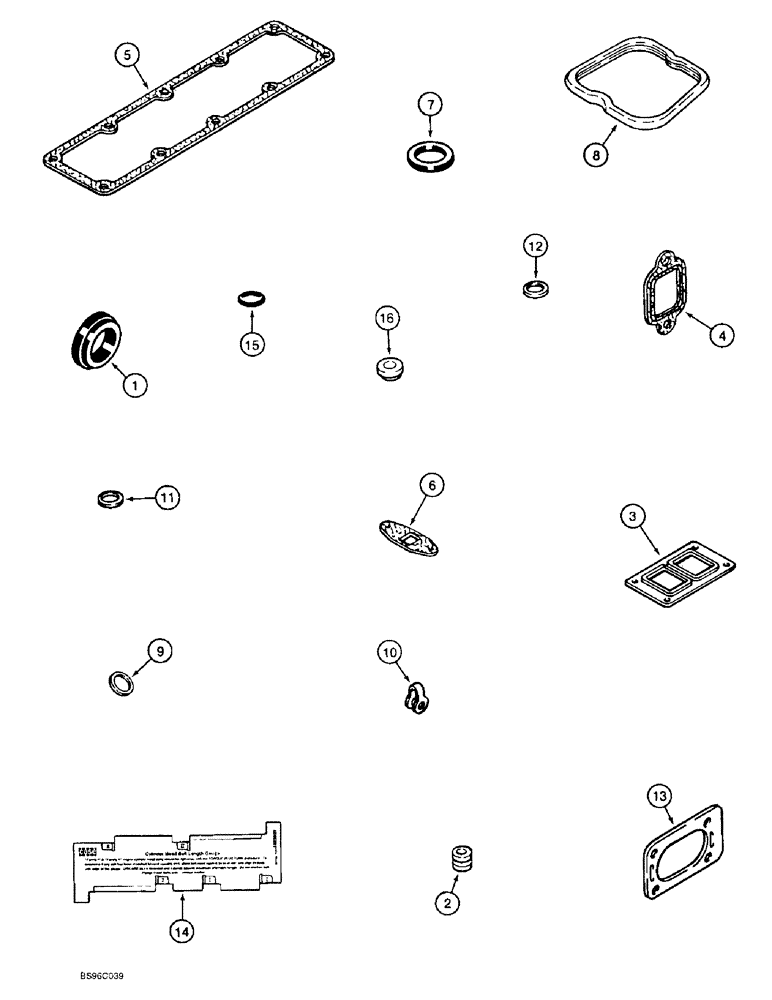

Схема запчастей Case 9020B - (2-090) - ENGINE GASKET KITS, 4TA-390 ENGINE, PRIOR TO P.I.N. DAC02#2001, VALVE GRIND (02) - ENGINE
4
3
5
9
13
10
11
7
15
8
12
2
6
16
1
14

Артикул

Название

Примечание

Количество

A77858

GASKET KIT

KIT - gasket, valve grind, replaces A77792 kit, Includes: Ref. 1 - 16

1шт.

1

J923331

GASKET

- thermostat housing

1шт.

2

J901097

SEAL

- valve

8шт.

3

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

4

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

5

J931605

BOLT

- intake manifold, replaces J914028 gasket

1шт.

6

J931350

GASKET

- turbo oil drain tube, replaces J914388 gasket

1шт.

7

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap, not used in this application

1шт.

8

J930906

GASKET

SEAL - rocker arm cover

4шт.

9

J900808

SEAL

- injector nozzle, 9 mm injector tip, not used in this application

4шт.

10

J903380

SEAL

- connector, fuel drain manifold tube

4шт.

11

J906659

SEAL

- injector nozzle, 7 mm injector tip

4шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, Serial Range: body-nut

4шт.

13

J914856

GASKET,1.02mm Thk

- air crossover connection

1шт.

14

J823921

GAUGE

- cylinder head, bolt length

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

4шт.

16

J928406

ISOLATOR

- noise, replaces J902666 seal

4шт.

Выбрано товаров: 17
