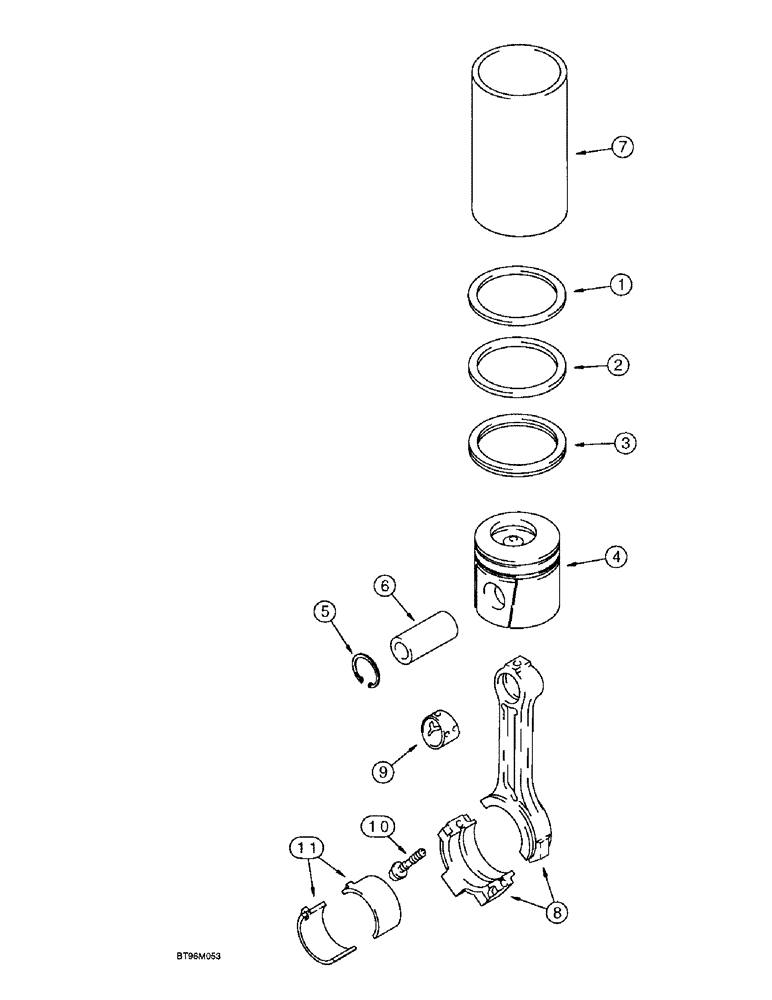

Запчасти Case 9020B (2-088) - PISTONS AND CONNECTING RODS, 4TA-390 EMISSIONS CERT ENG, P.I.N. DAC02#2001 & AFT, CONNECTING RODS (02) - ENGINE

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

KIT - piston, standard, Includes: Ref. 1 - 5

4шт.

J802746

PISTON RING SET

KIT - ring, standard, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize (Stamped 8816)

1шт.

5

J901706

RING

- snap

2шт.

6

J919053

PISTON PIN

PIN - piston

1шт.

A77734

PISTON

KIT - piston, 0.5 mm oversize, Includes: Ref. 1 - 6

4шт.

A77734, .5 mm piston, with A77728 .5 mm ring Kit and A77735, 1.0 mm piston, with A77729 ring Kit are Not Correct for Emission Certified engines.

1шт.

The correct .5 mm piston is J802764 with ring kit J802422. The correct 1.0 mm piston is J802765 with ring kit J802423.

1шт.

A77728

PISTON RING SET

KIT - ring, 0.5 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize (Stamped 8816)

1шт.

6

J901706

RING

- snap

2шт.

5

J919053

PISTON PIN

PIN - piston

1шт.

A77735

PISTON

KIT - piston, 1.00 mm oversize, Includes: Ref. 1 - 6

4шт.

A77729

PISTON RING SET

KIT - ring, 1.0 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize (Stamped 8816)

1шт.

6

J901706

RING

- snap

2шт.

5

J919053

PISTON PIN

PIN - piston

1шт.

7

J904166

SLEEVE

LINER - piston, used only in engine block repair (when liner is installed, use A77733 standard piston kit)

1шт.

J925232

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, Includes: Ref. 8 - 10

4шт.

JR925232

ROD

Assembly - connecting, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 8 - 10

4шт.

JC925232

CORE-ROD CONNECTING

Return Number

4шт.

84145405R

REMAN-CONNECTING ROD

9020B P.I.N. DAC02#2001 AND AFT (1/95-), Reman For New PN J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

JC901569

CORE-ROD CONNECTING

Return Number- use this part number to return connecting rod for credit when using a remanufactured assembly, Includes: Ref. 8 - 10

4шт.

8

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

9

J901085

BUSHING

- connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special, connecting rods

2шт.

11

A77465

BEARING SET

KIT - bearing, upper and lower set, standard, connecting rods

4шт.

11

A77466

BEARING SET

KIT - bearing, upper and lower set, 0.25 mm oversize, connecting rods

4шт.

11

A77467

BEARING LINER

KIT - bearing, upper and lower set, 0.50 mm oversize, connecting rods

4шт.

11

A77468

BEARING SET

KIT - bearing, upper and lower set, 0.75 mm oversize, connecting rods

4шт.

11

A77469

BEARING SET

KIT - bearing, upper and lower set, 1.00 mm oversize, connecting rods

4шт.
