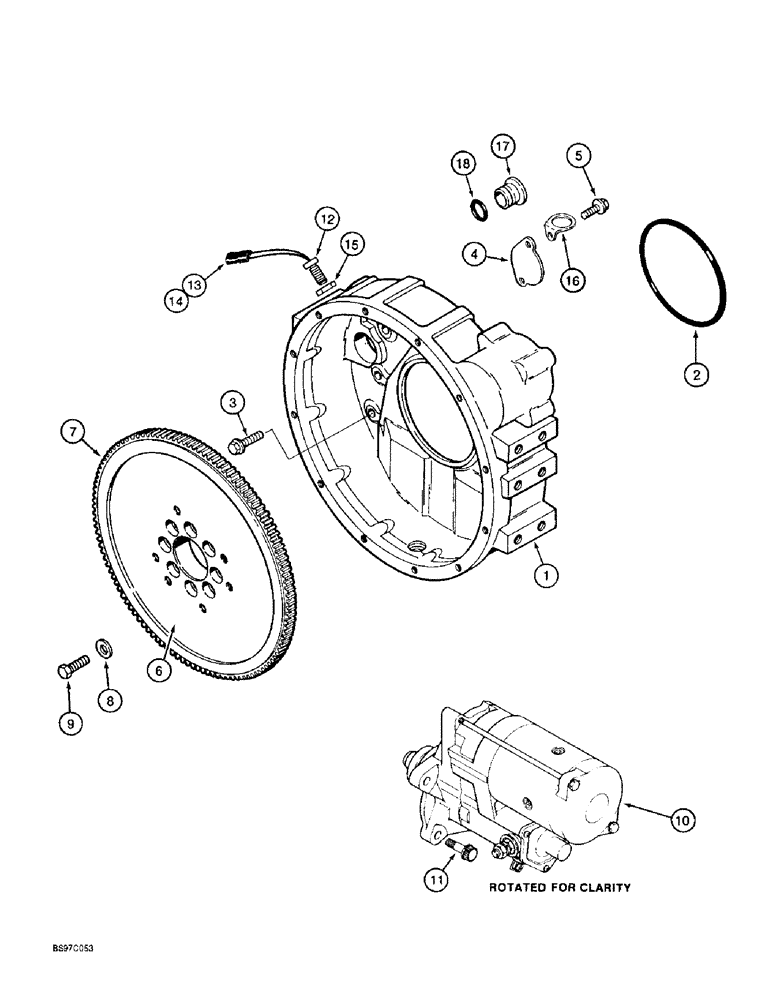

Запчасти Case 9020B (2-084) - FLYWHEEL AND HOUSING, 4TA-390 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC02#2001 AND AFTER (02) - ENGINE

1

J931627

HOUSING

HOUSING - flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING O-RING - flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

BOLT - heavy hex flange, 12 - 1.75 x 40 mm, class 10.9, Flywheel housing to block

8шт.

4

J925234

PLATE

PLATE - cover

1шт.

5

J912072

SELF-TAP SCREW

SCREW - self tapping, hex washer head, special, 8 - 1.25 x 15 mm, plate retaining

2шт.

6

J926188

FLYWHEEL

FLYWHEEL ASSEMBLY - engine, Includes: Ref. 7

1шт.

7

J905427

GEAR

GEAR - ring, flywheel

1шт.

8

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

WASHER - flat, special

8шт.

9

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

10

1987566C1

STARTER MOTOR,24V, 5.5kW

STARTER ASSEMBLY - engine, see parts list Figure 4-4

1шт.

Two production phases of engine blocks exist which affect starter interchangeability. For blocks with two cup plugs in the water jacket behind the starter (as illustrated on Figure 2-066 Ref. 6), order new starter 1987566C1 or reman starter 1987566C1R. For blocks with one cup plug and one raised casting boss with 3/4 inch NPT port (as illustrated on Figure 2-073A Ref. 6 & 6A), order new starter 87436686 which subs from J934119 or reman starter 87436686. If a replacement block is required, the starter may

1шт.

10

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

10

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

10

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Vakue

1шт.

11

J903834

12 PT SCREW,M10 x 1.5 x 35mm, Cl 10.9

BOLT - special, 12 point, starter to flywheel housing

3шт.

A187584

SENSOR

SENDER ASSEMBLY - engine rpm, located at top of flywheel housing, Includes: Ref. 12 - 18

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - threaded, with electrical wiring

1шт.

13

245483C1

ELEC CONNECTOR,Male, 2 Pin

CONNECTOR - engine rpm sender, female

1шт.

14

225127C1

PLUG

SEAL - sender cables

2шт.

15

425-1512

JAM NUT,Jam, 3/4"-10, G5

NUT - hex, jam, 3/4 inch NF

1шт.

16

J923610

CLIP

CLIP - breather hose, retaining

1шт.

17

J910248

PLUG

PLUG - flywheel housing

1шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

O-RING, -212, 70 Duro, .859" ID x .139" Thk

1шт.
