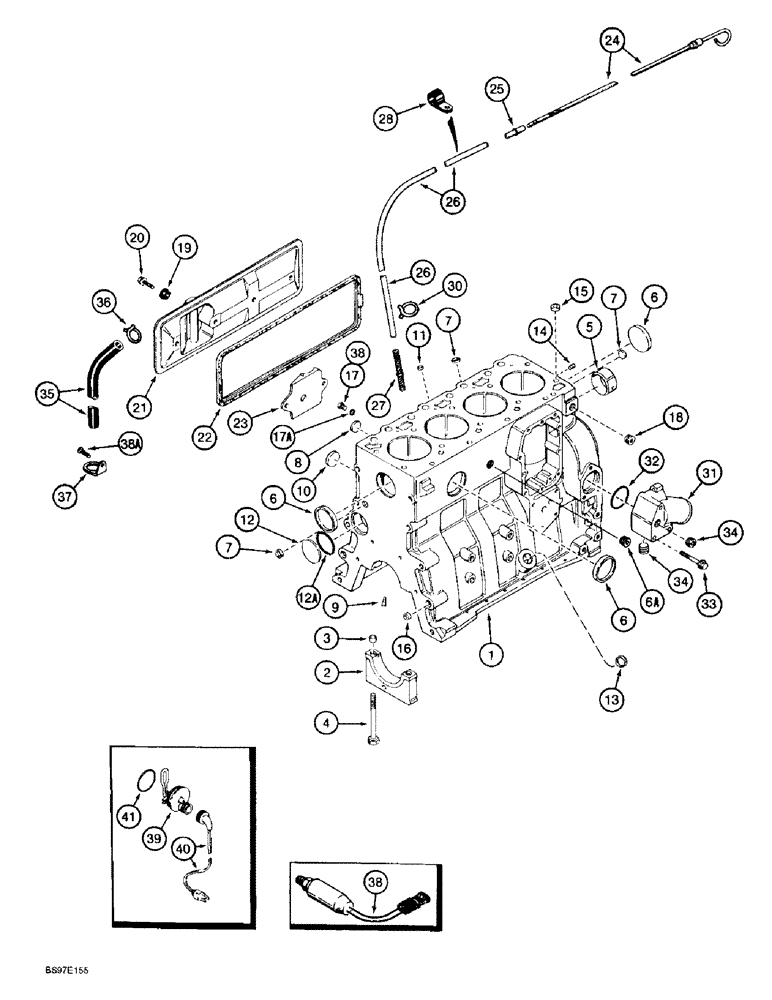

Запчасти Case 9020B (2-073A) - CYLINDER BLOCK, 4TA-390 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC02#2001 & AFT, ENG S/N 45537238 & AFT (02) - ENGINE

197900A2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, 4TA-390, includes all parts except fan, air cleaner, muffler and exhaust pipe, for service order basic engine below

1шт.

The engine part number is stamped on a metal tag, which is mounted on the front gear cover.

1шт.

234277A2

BASIC ENGINE

includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel & housing, oil fill & dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger & aftercooler; See Note

1шт.

234277A2R

REMAN-BASIC ENGINE

With Four Bolt Injection Pump Mounting. Assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

234277A2R

REMAN-BASIC ENGINE

Return Number

1шт.

47465929R

REMAN-BASIC ENGINE

With Three Bolt Injection Pump Mounting. Assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

47465929C

CORE-BASIC ENGINE

Return Number

1шт.

J933648

SHORT ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods, crankshaft and bearings, Includes: Ref. 1 - 8

1шт.

J933648R

SHORT ENGINE

BLOCK ASSEMBLY - short, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 8

1шт.

J933648C

CORE-ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

BLOCK ASSEMBLY - stripped, engine, order J933220 block hardware kit shown below also, Includes: Ref. 1 - 8

1шт.

2

J900967

BEARING CAP

CAP - main bearing

5шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

SCREW, , Main bearing cap, Special Hex Flg Hd, M12 x 1.5 x 119

10шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, see Figure 2-64, Ref. 2

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

4шт.

6a

A77505

PLUG

PLUG - hex socket, 3/4 inch PT

1шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

KIT - block hardware, Includes: Ref. 9 - 18

1шт.

9

J930139

NOZZLE CAP

NOZZLE - piston cooling

4шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm OD

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING - sealing, 57 mm ID

1шт.

13

J920706

PLUG

PLUG - expansion, 22 mm OD, not used in this application, Ref. 15, Figure 2-40, J903744 turbocharger oil drain tube is installed in this port

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long, locating

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

J933220

PACKAGE,SERVICE

KIT - block hardware

1шт.

17

233426A1

PLUG,M10 x 1 ORB

PLUG - hex, 10 mm (1) not used in this application, Ref. 38, 1546461C2 engine oil pressure switch is installed in this port

2шт.

17a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

O-RING - 8.1 ID x 1.6 mm wide, plug

1шт.

18

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

19

J900267

SEAL

SEAL - cover bolt

4шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

4шт.

21

J925680

COVER

COVER - tappet

1шт.

22

J928831

GASKET

GASKET - tappet cover

1шт.

23

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

24

J933113

DIPSTICK

DIPSTICK - engine oil

1шт.

25

J905802

FITTING,9.53 mm OD x 39 mm L

CAP - oil dipstick tube

1шт.

26

J933114

TUBE,9.53 mm ID x 12.7 mm OD x 600 mm L

TUBE - oil dipstick

1шт.

27

A77645

TUBE

TUBE - oil dipstick, at block

1шт.

28

A77508

CLAMP

CLAMP - P-type, attaches to Refs. 2 and 9 shown on Figure 2-76, using existing hardware

1шт.

30

214-1308

HOSE CLAMP,#8, 1/2", Spring

CLAMP, HOSE, , Retains dipstick tube to tube brace #8, 1/2", Spring

1шт.

31

J903103

MANIFOLD

CONNECTION - water inlet

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

3шт.

34

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

35

1981643C1

HOSE

HOSE - 800 mm (31-1/2 inch) long, engine breather

1шт.

36

J904230

CLAMP,25.4mm

CLAMP - spring, hose, breather hose to tappet cover

1шт.

37

J909670

CLIP

CLIP - retaining, breather hose to torque converter access cover screw

1шт.

38

1546461C2

SWITCH

SWITCH - oil pressure, 10 psi, installed in the No. 1 oil port on the injection pump side of the engine

1шт.

38a

158254A1

SCREW,Phil Pan Hd, M6 x 10mm

SCREW - pan head, special

1шт.

196803A1

KIT

KIT - engine block heater, Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt, engine block heater

1шт.

40

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

41

J910517

O-RING

O-RING - heater sealing, engine block heater

1шт.
