Запчасти Case 9020B (2-062) - CAMSHAFT, 4TA-390 ENGINE, PRIOR TO P.I.N. DAC02#2001 (02) - ENGINE

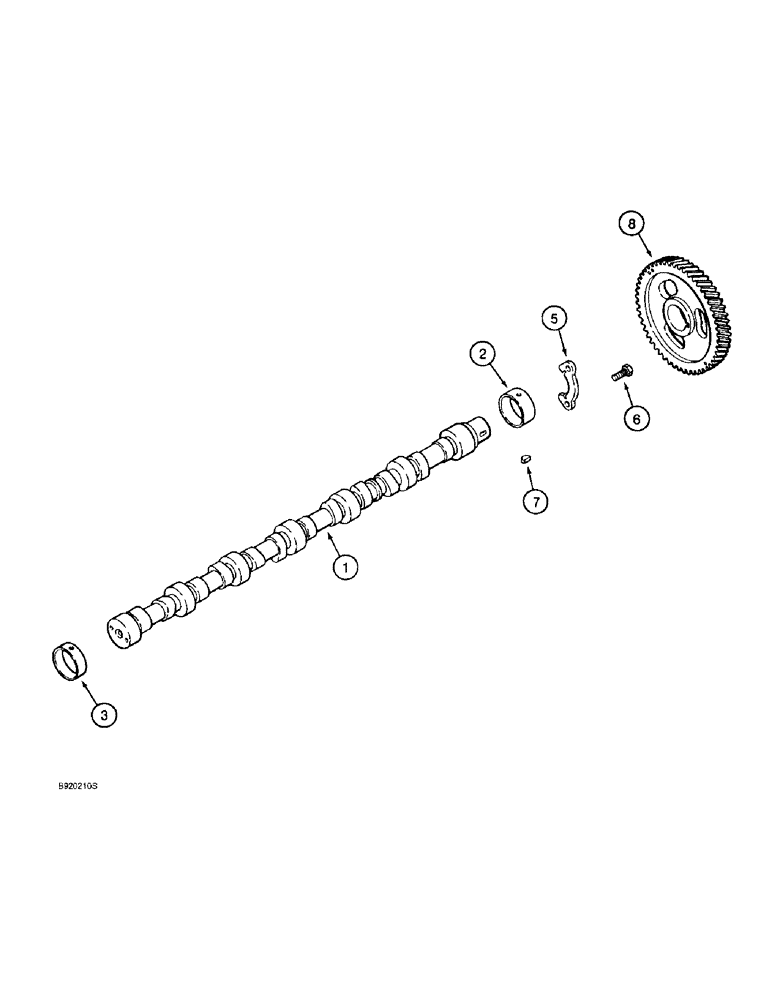

Схема запчастей Case 9020B - (2-062) - CAMSHAFT, 4TA-390 ENGINE, PRIOR TO P.I.N. DAC02#2001 (02) - ENGINE
5
8
7
1
3
2
6

Артикул

Название

Примечание

Количество

1

J929039

CAMSHAFT

- engine, replaces J912842 camshaft

1шт.

J929039R

REMAN-CAMSHAFT

9020B EXCAVATOR, (1/95-)

1шт.

J929039C

CORE-CAMSHAFT

Return Number

1шт.

2

J901306

BUSHING

- camshaft, front

1шт.

2

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

- camshaft, front, used on Engine Serial Number 45537238 and after

1шт.

2

J904369

BUSHING

- camshaft, front, oversize, 58 mm OD

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

- camshaft, intermediate and rear, service repair only

6шт.

When the intermediate and rear cylinder block camshaft bores are reamed in engine repair, order J903242 bushings.

1шт.

5

J927155

SUPPORT

- thrust, camshaft

1шт.

6

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

7

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

Replaces 126-112 key M4 x 6.5 x 15.72

1шт.

8

J929030

PINION

GEAR - camshaft, replaces J907431 gear

1шт.

Выбрано товаров: 12
