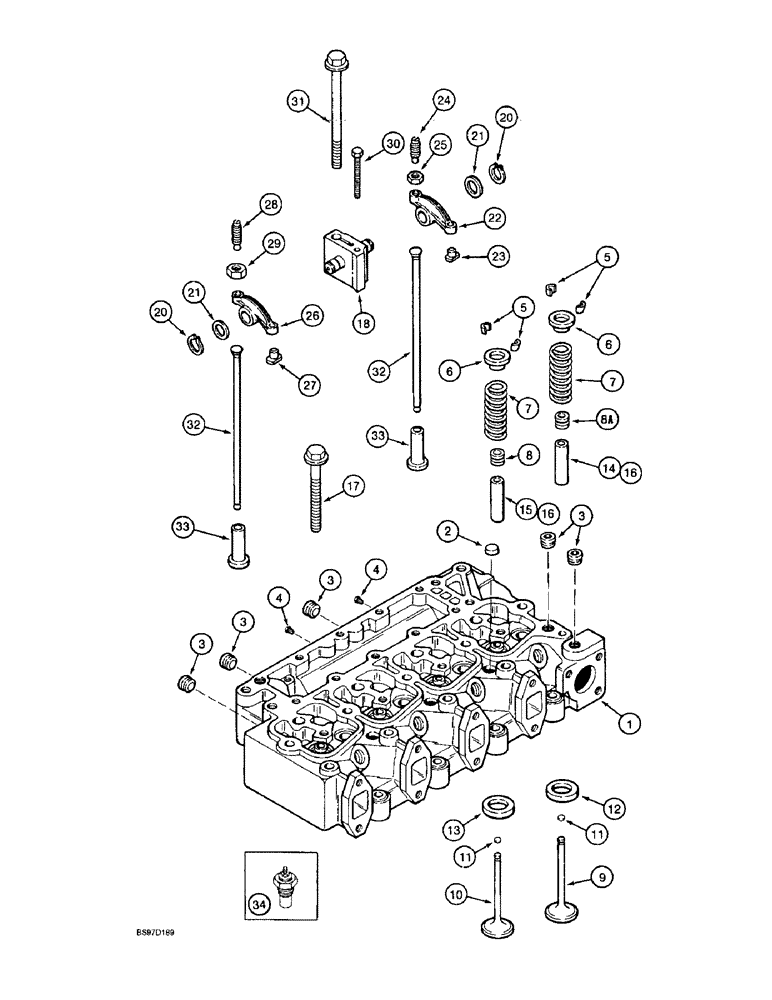

Запчасти Case 9020B (2-060) - CYLINDER HEAD AND VALVE MECHANISM, 4TA-390 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC02#2001 AND AFTER (02) - ENGINE

JR927330

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 10

1шт.

JC927330

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return head for credit when using a remanufactured assembly, Includes: Ref. 1 - 10

1шт.

J927330

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves, Includes: Ref. 1 - 10

1шт.

1

J917433

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, without valves, Includes: Ref. 2

1шт.

2

A77783

PLUG

- expansion, 21 mm OD

3шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

PLUG, DRAIN, , One removed to install Ref. 34, 1983238C1 coolant temperature sender Sq Soc, 1/2"-14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

5

J900250

SCREW

KEEPER - valve

16шт.

6

J900299

RETAINER

- valve spring

8шт.

7

J926700

VALVE SPRING

SPRING - valve

8шт.

8

J901097

SEAL

- valve

4шт.

8a

J921640

SEAL

- valve, intake

4шт.

9

J920867

VALVE

- intake

4шт.

10

J920868

VALVE

- exhaust

4шт.

11

J280911

WEAR PAD

PAD - wear, service repair only for valve stem tip

4шт.

12

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only

4шт.

13

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only

4шт.

14

J904408

GUIDE

- valve, intake, service repair only, 14 mm OD

4шт.

These parts are semi-finished valve guides.

1шт.

15

J904409

GUIDE

- valve, exhaust, service repair only, 14 mm OD

4шт.

These parts are semi-finished valve guides.

1шт.

16

J906206

GUIDE

- valve, intake and exhaust, service repair only, 11 mm OD

8шт.

These parts are semi-finished valve guides.

1шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long (Towards Exhaust)

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- cylinder head, 120 mm long (Center of Head)

10шт.

18

J922488

SUPPORT

AND SHAFT ASSEMBLY - rocker arm

4шт.

20

J900242

SNAP RING

RING - retaining, rocker arm

8шт.

21

J900245

WASHER

- thrust, rocker arm

8шт.

22

J910811

ROCKER

ARM ASSEMBLY - rocker, intake, Includes: Ref. 23 - 25

4шт.

23

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

24

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

25

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

26

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, Includes: Ref. 27 - 29

4шт.

27

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

28

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

29

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

30

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

31

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - rocker arm and cylinder head, 180 mm long

4шт.

32

J923262

PUSH ROD

ROD - push, rocker arm

8шт.

33

J931623

TAPPET

- valve, push rod

8шт.

34

1983238C1

SENSOR,1/2" - 14

SENDER - engine coolant temperature, installed at front side of cylinder head behind fuel lines

1шт.

The 1983238C1 engine coolant sender is still used in the hole in the block that has 1/2" NPTF thread. The 159147A1 engine coolant sender goes into 153493A1 reducer bushing. These have M16 x 1.5 metric thread. See 9020B catalog on Figure 2-056 artwork where bubble 1 is pointing (there are two threaded holes with an unthreaded hole between them). The reducer bushing goes into the hole to the left. The 9010B - 9045B excavators actually use two engine coolant senders to activate two different cab warning functi

1шт.

See Figure 4-010 for engine coolant sensor with two wires and plug-in. Ref. 14, 159147A1, is used as both the hydraulic oil temperature sensor and as the engine coolant temperature sensor. On the artwork for Figure 4-010, Ref. 14 bubble farthest to the left is for the engine coolant temperature sensor. It screws into Ref. 35 reducer bushing shown on Figure 2-060. The Ref. 14 farther to the right on Figure 4-010 is the hydraulic oil temperature sensor.

1шт.

35

153493A1

BUSHING

- reducer, used with Ref. 34, not shown

1шт.
